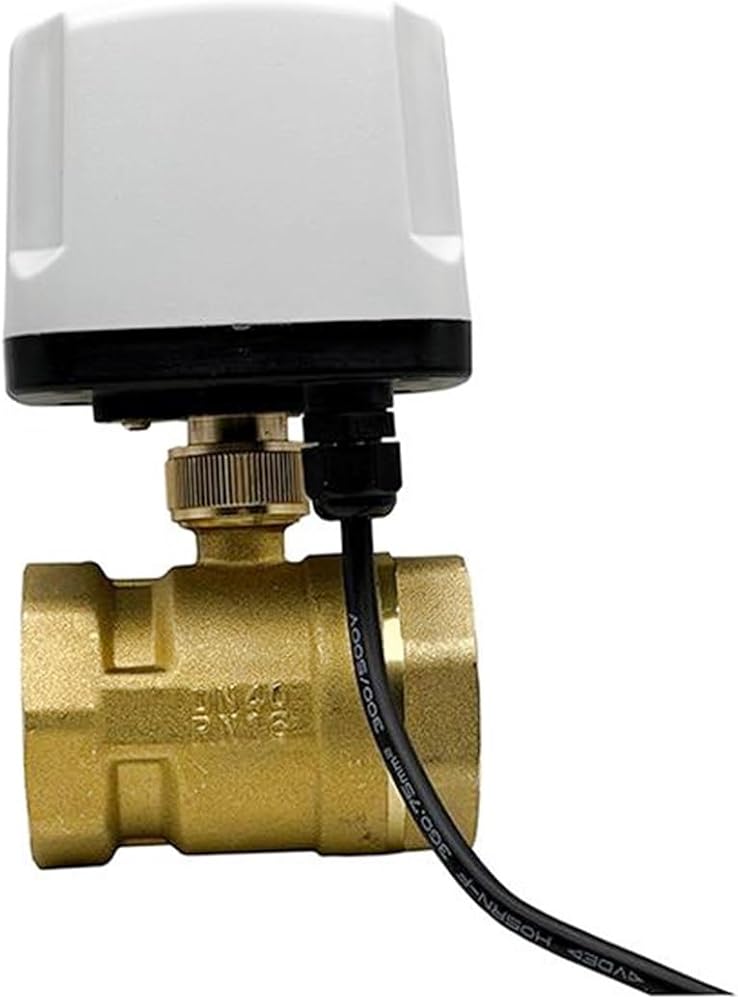

solenoid valves
Valves
Specification
Medium: Cold/hot water 60% Ethylene Glycol
Material: Brass
Power Supply: AC220V/DC12V/DC24V
Structure Forms: Two Ways
Operation Mode: Three Wire Two Ways Control/Three-wire One Control mode/2-wire (power-off reset mode)Power: 6W (Only when the valves open and close)
Running Time: 5-15 Seconds
Nominal Pressure: 1.6MPa
Medium Temperature: 2°~95°
Maximum Differential Pressure: 1.0MPa
Connection Mode: G Internal Thread
Torque:220V 8 N.M DC12/24V 6 N.M
Waterproof level:IP65
Package list:1PC* Ball Valve
CR02: 3-wire (three-wire two-control mode) wiring diagram
Voltage: AC220V DC12V DC24V
