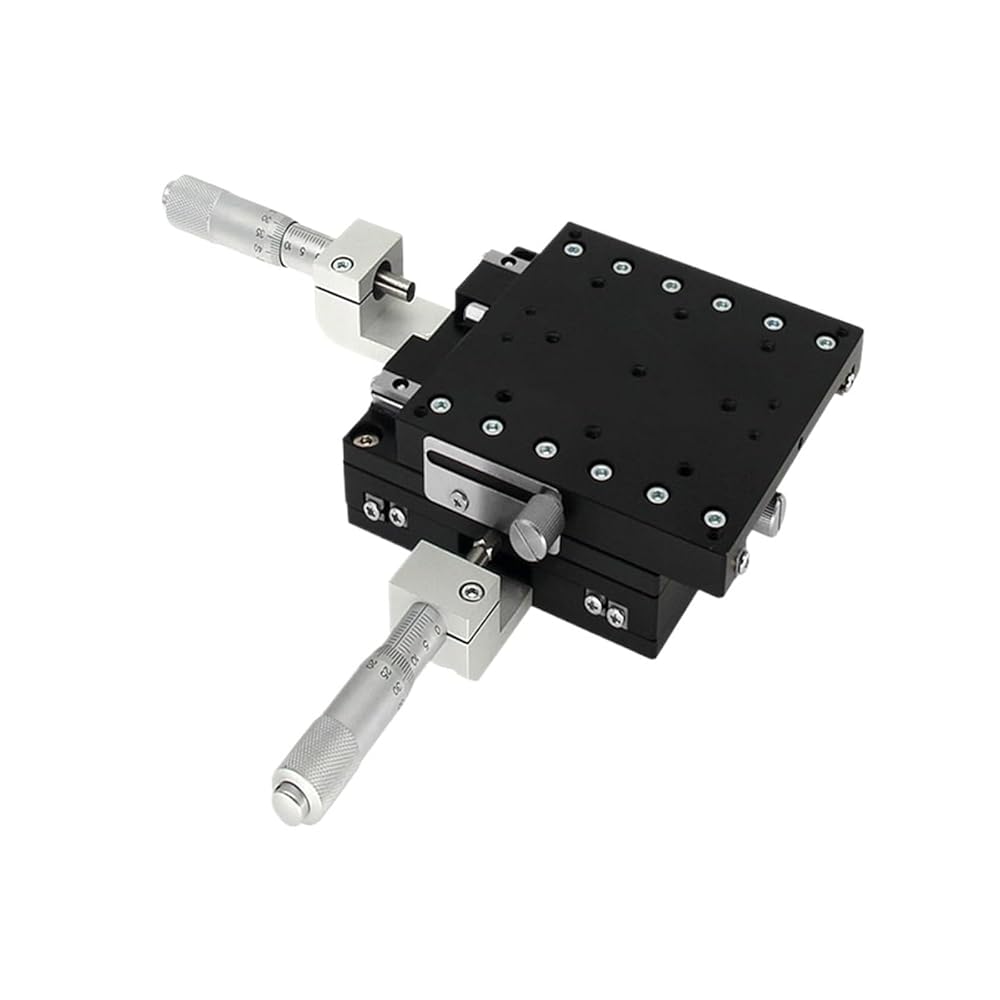

1pc XY Axis Optical Linear Stage Sliding Table - Manual Displacement Platform for 40-60mm Mi/ni Linear Actuator(Right,Steel Ball Guide 40mm) in Kuwait

Cross Roller Guide 40mm Center

KWD 51.500
Brand
DUOYING
Weight
50 g
ColorCenter
SizeCross Roller Guide 40mm
– 1 +

Special Features

  • Achieve high precision movement with our XY Axis Optical Linear Stage, featuring a cross roller guide for stable and accurate positioning.
  • devised for versatility, this sliding table can be paired with various types of machines and instruments, ensuring high availability for your projects.
  • User-friendly micrometer drive allows for ultra-precise adjustments, enabling accurate angle positioning and fine-tuning with the adjustment switch screw.
  • Ideal for high-precision and medium-load applications, our sliding table is perfect for production machinery, detection devices, and quantitative movement tasks.
  • Customizable solutions are available to meet your specific needs— us for tailored options to enhance your operational efficiency.

Description

Steel Ball Guide
Model
LGY40-C
LGY40-L
LGY40-R
LGY60-C
LGY60-L
LGY60-R
Moving
Direction
X Y Axis Two Directions
Table Size
40mm x 40mm
60mm x 60mm
Table Thickness
40mm
Stroke
±6.5mm, Total 13mm
Load
19.6N (2kgf)
39.2N (4kgf)
Minimum Scale
0.01mm
Parallelism of
Movement
0.02mm/6mm
0.02mm/13mm
Parallelism
0.06mm
Weight
0.26kg
0.42kg
Cross Roller Guide
X Y Axis Two Directions
Table Size
40mm x 40mm
60mm x 60mm
Table Thickness
36mm
Stroke
±6.5mm, Total 13mm
Load
29.4N (3kgf)
49N (5kgf)
Minimum Scale
0.01mm
Parallelism of
Movement
0.01mm/13mm
Parallelism
0.04mm
0.06mm
Weight
0.28kg
0.48kg
Model Number : LGY/LY
Guide Width or Diameter : 40mm/60mm
Package List : 1 X Manual Sliding Table
Moving Direction : XY Axis 2 Directions
Stroke : left /Right 6.5mm,total 13mm
LGX40 Load : 19.6N (2kgf)
LGX60 Load : 39.2N (4kgf)
LX40 Load : 29.4N (3kgf)
LX60 Load : 49N (5kgf)
Minimum Scale : 0.01mm
