Full-voltage starters start and stop 1- and 3-phase AC motors. Trip-free construction allows overload relay to trip even if reset lever is blocked or in the reset position. Open enclosure Normally open holding circuit contact for 3-wire control. Angled contacts provide high contact pressure and positive seating. Provide Class 20 protection.

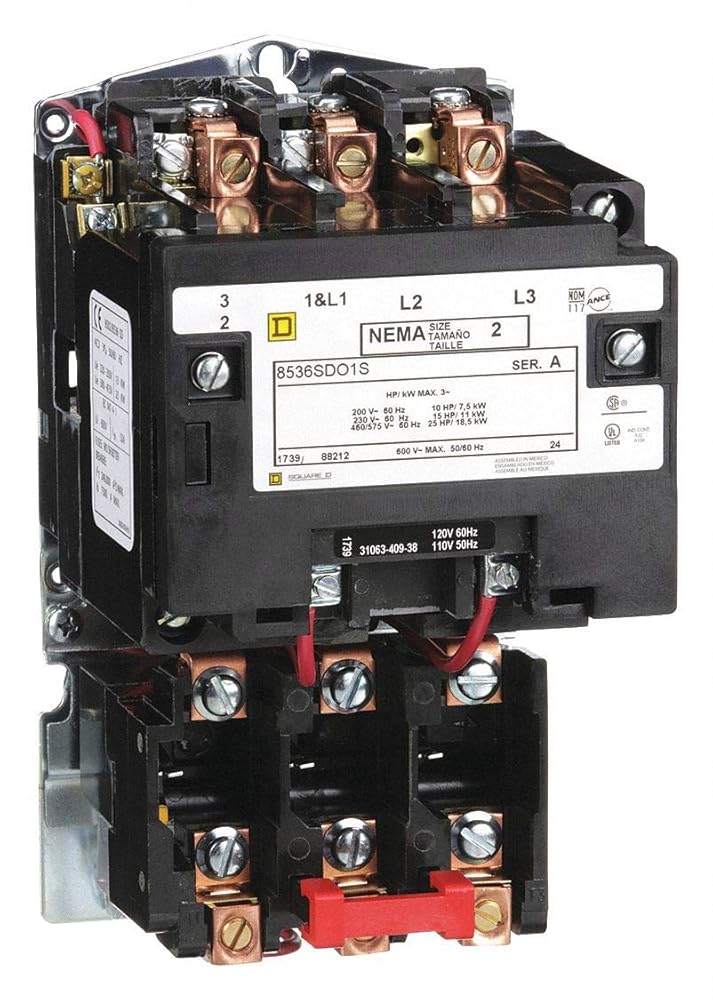

Item: Magnetic Motor Starter
NEMA Size: 2
Amps AC: 45
Coil Volts: 120VAC
Enclosure NEMA Rating: No Enclosure
HP @ 3 Phase - 240V: 15
HP @ 3 Phase - 480V: 25
Action: Nonreversing
Number of Poles: 3
HP @ 3 Phase - 208V: 10
HP @ 3 Phase - 575V: 25
Height: 7.81"
Width: 4.31"
Depth: 4.94"
Standards: UL Listed/CSA Certified
Starter Type: NEMA
Hz: 50/60
