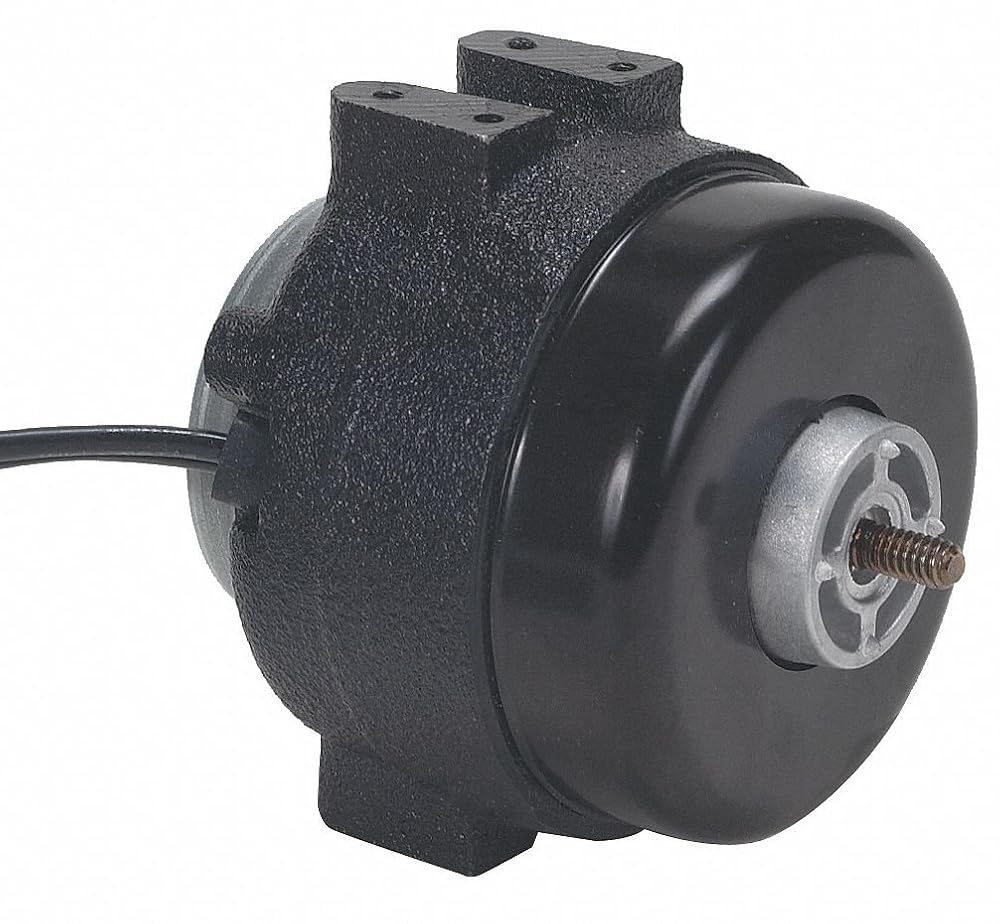

This unit bearing motor is for use with commercial and industrial HVAC and refrigeration equipment, and other applications with 6" to 12" fan blades. The oil circulation system helps extend the life of the motor and bearings, and allows for vertical application.

Item: Unit Bearing Motor
Motor Application: HVAC/R
Motor Sub Application: Refrigerator/Freezer
Motor Design: Shaded Pole
Motor Enclosure Design: Totally Enclosed Air-Over
HP: 1/83
Nameplate RPM: 1550
Frame: Non-Standard
Voltage: 115
Hz: 60/50
Phase: 1
Full Load Amps: 0.62
Output Watts: 9
Motor Mounting Type: Rear/Double Foot
Motor Thermal Protection: Auto
Ins. Class: A
Motor Service Factor: 1.00
Motor Bearings: Sleeve
Motor Frame Material: Cast Aluminum
Max. Ambient Temp.: 40 Degrees C
Motor Shaft Rotation: CWLE
Length Less Shaft: 2-5/8"
Overall Length: 3-1/8"
Motor Shaft Design: Threaded
Shaft Dia.: 1/4"
Shaft Length: 1/2"
Body Dia.: 3-1/2"
Motor Mounting Position: Horizontal or Vertical Shaft Up
Bolt Circle Dia.: 2-13/16"
RPM Range: 1501-1600
