MECCANIXITY 10W 10 ohm Aluminum Shell Resistor with Screws, 3 Pack Aluminum Housing Resistor Housed Case Wirewound Resistors Screw Tap Power Resistor for LED Turn Signal Doorbell, Gold in Kuwait

3K Ohm

KWD 3
KWD 3.500
Brand
MECCANIXITY
Weight
23 g
Style3K Ohm
– 1 +

Special Features

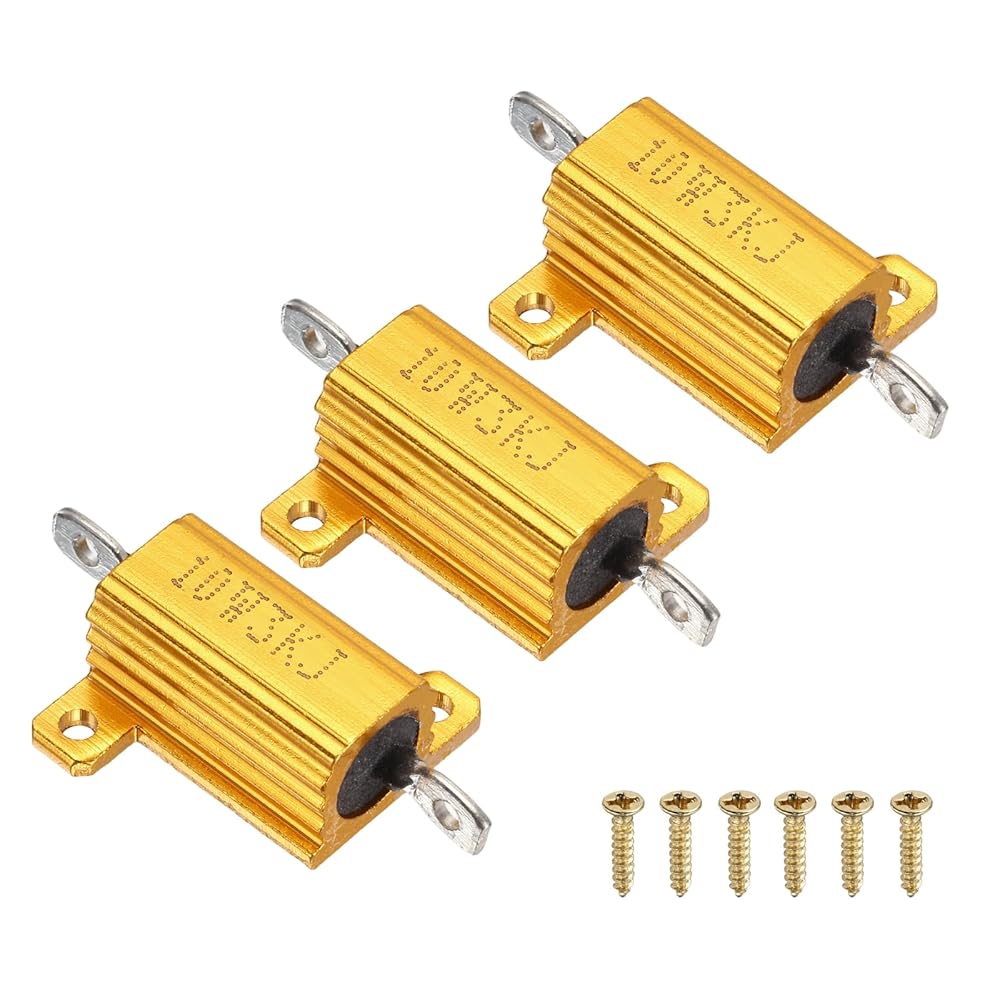

  • Material: Aluminum; Resistance Value: 10 ohm; Power Rating: 10W; Tolerance: ± 5%; Mounting Type: Chassis Mounted with Screws; Body Size: 33x21x9.5 mm / 1.3x0.83x0.37 Inch (LxWxH); Screw Specifications: M2*10mm; Mounting Hole Distance: 14mm / 0.55 Inch; Package Contents: 3Pcs x Load Resistors, 6Pcs x Screws
  • This aluminum load resistor is suitable for lighting products such as LED turn signals, license plate lights, and daytime running lights to address flickering issues. It is also suitable for audio equipment, doorbells, elevators, frequency converters, frequency dividers, inverters, and other industrial control equipment.
  • This led resistor features an aluminum housing for excellent heat dissipation, high temperature resistance, and strong overload capacity. Its compact size, high insulation, and vibration resistance ensure long-term stability and durability. It is suitable for harsh environments and provides precise resistance values and stable performance.
  • The aluminum-housed resistor is easy to install, and suitable for cooling plate installation. Connect the wires to the shafts on both sides, use the included screws, and install it on the hole.
  • Resistors generate heat when working. Do not touch the heated resistors directly, and ensure good ventilation and installation to avoid damage to surrounding components. The resistor should be mounted on metal board, please do not install it on flammable board such as plastic board, rubber, paper, wood, etc.
