محرك كهربائي 30 حصان 1800 دورة في الدقيقة 286T إطار 208-230/460 فولت TEFC Nidec # HD30P2E in Kuwait محرك كهربائي 30 حصان 1800 دورة في الدقيقة 286T إطار 208-230/460 فولت TEFC Nidec # HD30P2E in Kuwait

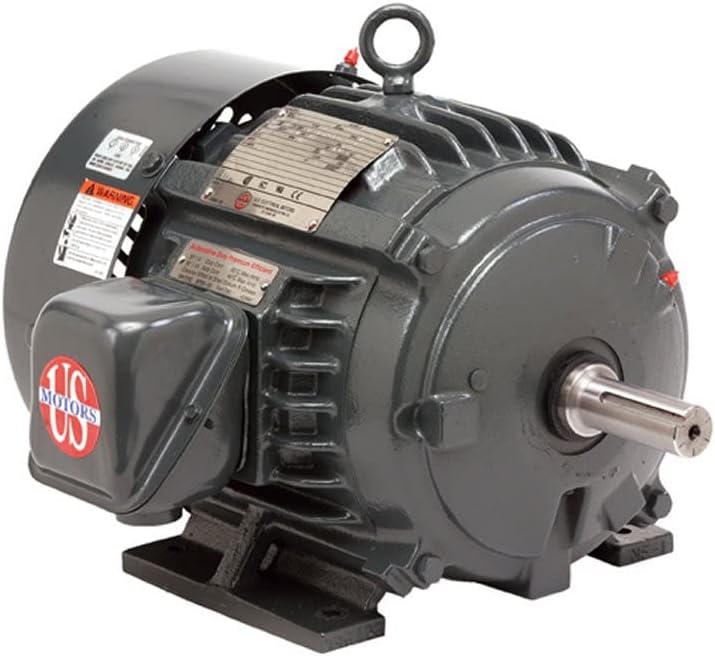

محرك كهربائي 30 حصان 1800 دورة في الدقيقة 286T إطار 208-230/460 فولت TEFC Nidec # HD30P2E

KWD 761
ماركة
Nidec
وزن
154.2 kg
– 1 +

مميزات خاصة

  • 30 hp 1800 RPM, 70.0/35.0 amps 208-230/460 Volts Three Phase Motor

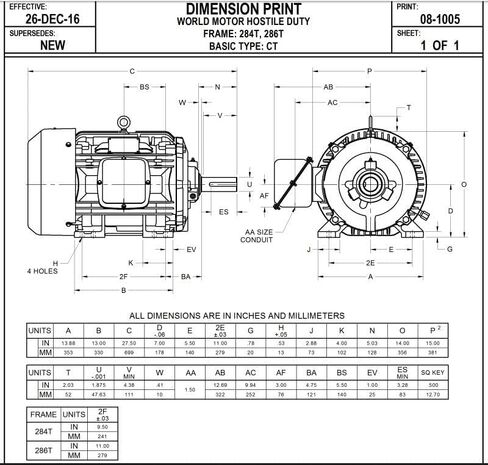

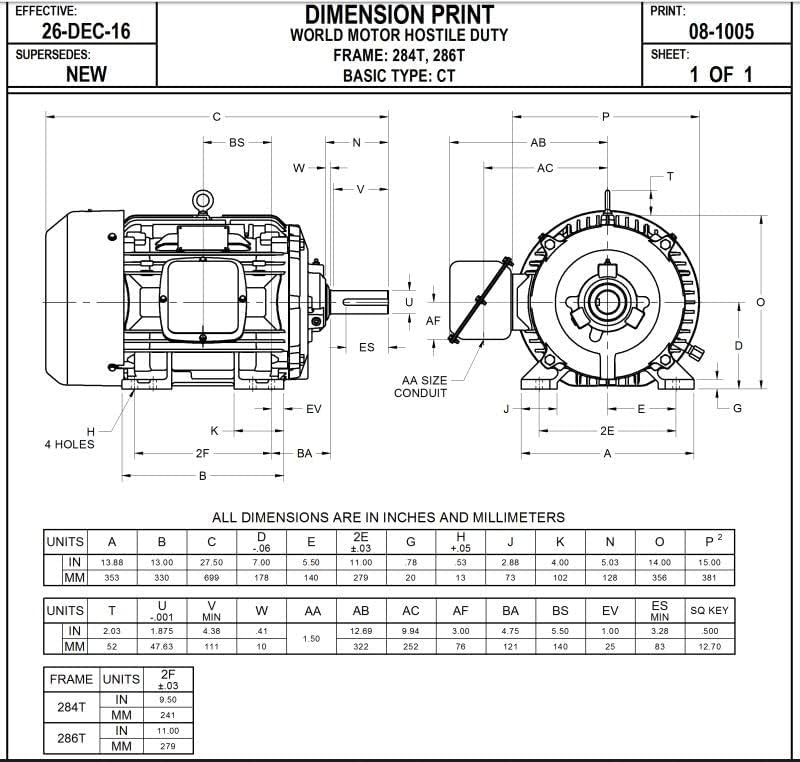

  • NEMA 286T Frame Keyed Shaft 1 7/8" Diameter x 4 5/8"
  • TEFC; Service Factor: 1.15, Overload protection = None
  • Reversible, Rigid Base Mount, Ball Bearings, Class F Insulation
  • "C" Dimension 27.5"; Year Manufacture Warranty

وصف

Hostile duty, premium efficient, world motor, cast iron frame. Corrosion resistant mill & chemical duty paint, stainless steel nameplate (with CE mark) & zinc plated hardware. Steel fan cover & conduit box, condensation drains with plastic plugs. Suitable for 20:1 variable torque; 5:1 constant torque on inverter power. Motor has a rigid base mount with a keyed shaft. Continuous Duty. 40C Ambient Temp. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled. Model GA07, H30P2D
