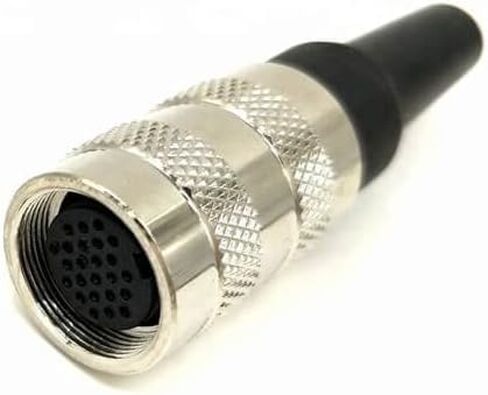

Plugs
Technical Parameters:
Electrical Characteristics
Rated current: 7A: 2/3/4PIN; 6A:5PIN; 5A: 6/7/8/12/14/16/19/24PIN
Rated voltage: 200V: 2/3/4/5/6PIN; 60V: 7/8/12/14/16/19/24PIN
Contacts resistance: ≤7MΩ: 2/3/4/5/6/7/8/PIN; ≤10MΩ: 12/14/16/19PIN; ≤12MΩ: 24PIN
Insulation resistance: ≥1500MΩ: 2/3/4/5/6PIN; ≥1000MΩ: 7/8/12/14/16/19/24PIN
Solder Cup Mouth Aperture: 1.0mm: 2/3/4/5/6/7/8-Pin; 0.8mm: 12/14/16/19PIN; 0.6mm: 24PIN.
Solder Inter Diameter: 1.5mm: 2/3/4/5/6/7/8-Pin; 1.0mm: 12/14/16/19PIN; 0.5mm: 24PIN
Mechanical Characteristics
Coupling: thread locking
Termination: Solder
Mating cycle: 500
Environmental Characteristics
Temperature Range：-25°C to +85°C
IP rating: IP67
