Digital Readout 5um Linear Scale 750mm Travel Length 30" match DRO 2/3 Axis for CNC Milling Drill EMD Machine, DHL Ship, 4-7 Business Days in Kuwait Digital Readout 5um Linear Scale 750mm Travel Length 30" match DRO 2/3 Axis for CNC Milling Drill EMD Machine, DHL Ship, 4-7 Business Days in Kuwait Digital Readout 5um Linear Scale 750mm Travel Length 30" match DRO 2/3 Axis for CNC Milling Drill EMD Machine, DHL Ship, 4-7 Business Days in Kuwait Digital Readout 5um Linear Scale 750mm Travel Length 30" match DRO 2/3 Axis for CNC Milling Drill EMD Machine, DHL Ship, 4-7 Business Days in Kuwait Digital Readout 5um Linear Scale 750mm Travel Length 30" match DRO 2/3 Axis for CNC Milling Drill EMD Machine, DHL Ship, 4-7 Business Days in Kuwait Digital Readout 5um Linear Scale 750mm Travel Length 30" match DRO 2/3 Axis for CNC Milling Drill EMD Machine, DHL Ship, 4-7 Business Days in Kuwait Digital Readout 5um Linear Scale 750mm Travel Length 30" match DRO 2/3 Axis for CNC Milling Drill EMD Machine, DHL Ship, 4-7 Business Days in Kuwait

Digital Readout 2 Axis DRO 5um Resolution Encoder w/Mounting Arm & Bracket for CNC Milling Lathe Machine (2 Axis Digital Readout Only),DHL,4-7 Business Days

KWD 43
– 1 +

Special Features

  • 1pc digital readout(2Axis/3Axis) with scales(upon your options) , 5μm (0.0002") resolution (at 45ºC)
  • Advanced trigonometric calculation so to accomplish a perfect project
  • 11.6”wide display to offer excellent long-distance viewing
  • Digital display to eliminate backlash and improve precision
  • Lifetime free technical support, 2Years warranty, 30-day return

Description

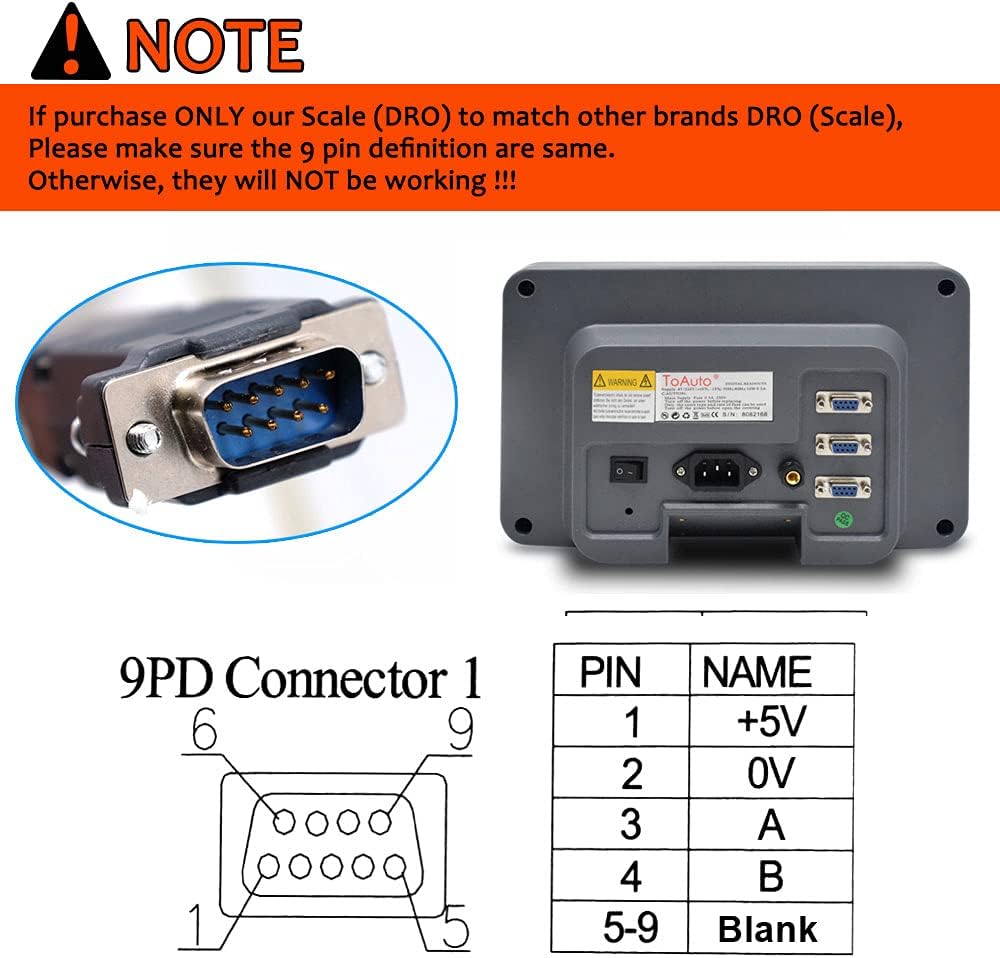

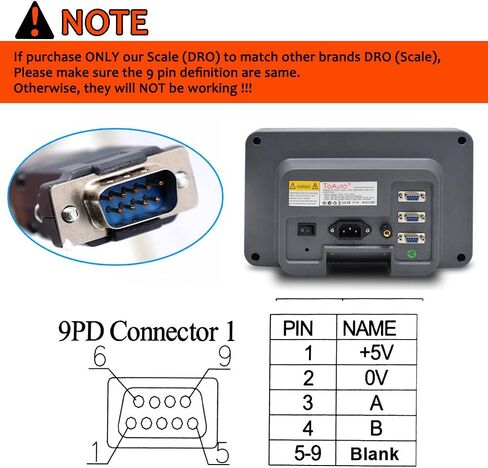

Notice: if you want to buy a single linear scale, please make sure that the define of DB9 interface match your machine before placing the oreder.

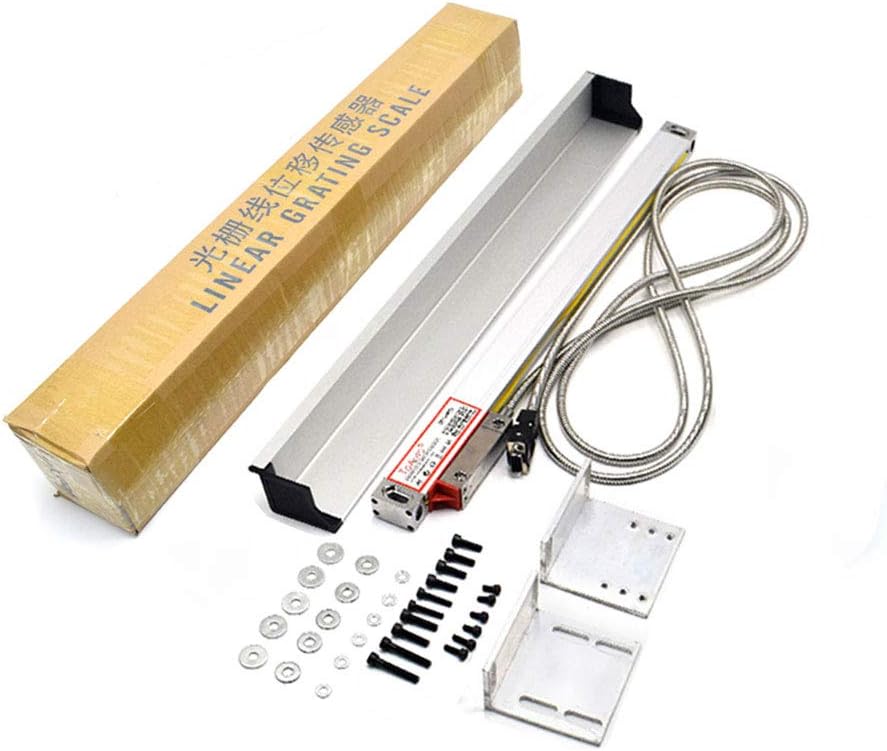

Package
1 x Linear Scale

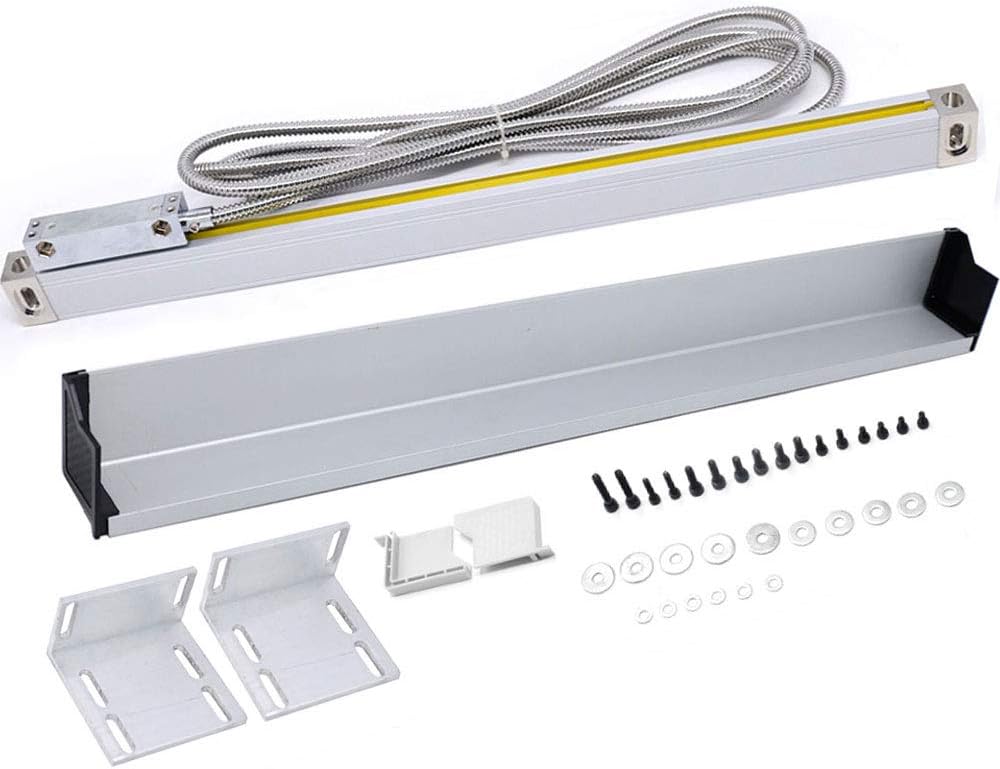

Accessories: scale cover, L connecting bracket, scale cover, screw bag

Specifications of Linear Scale

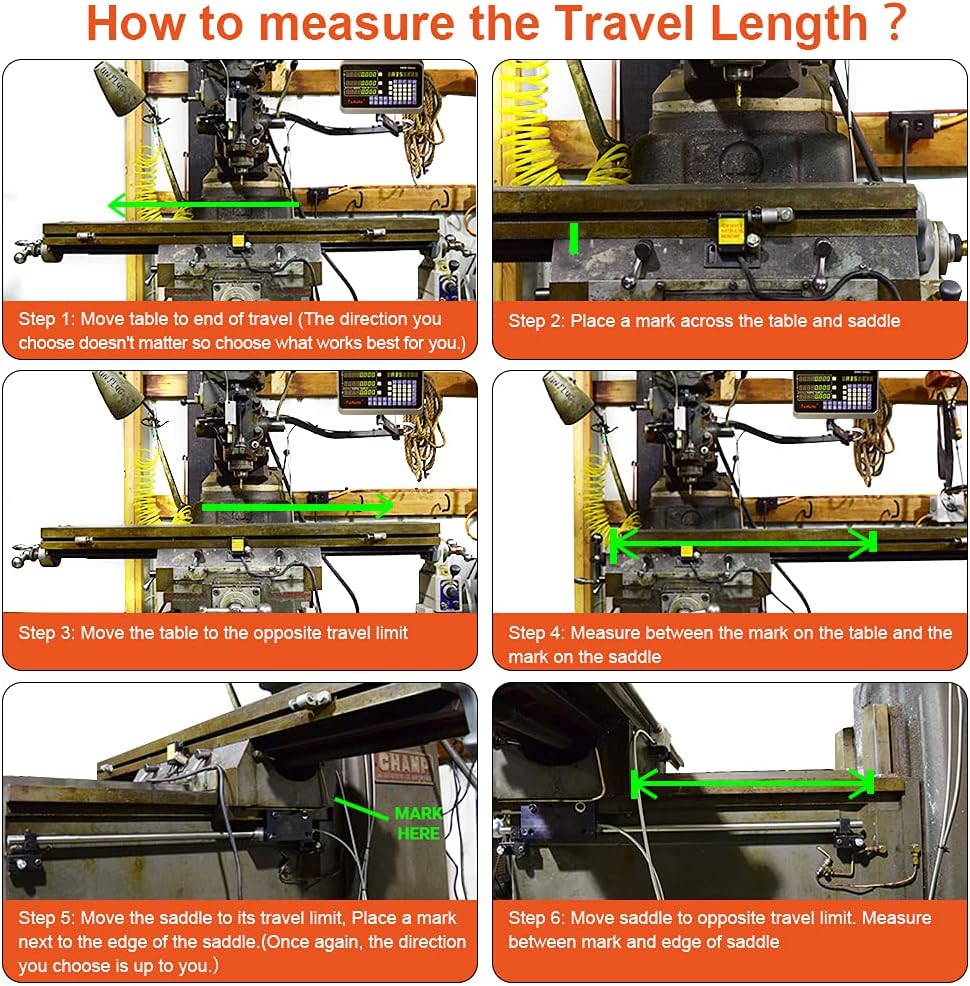

Travel (measuring) length: 0-1000mm / 0-40inch

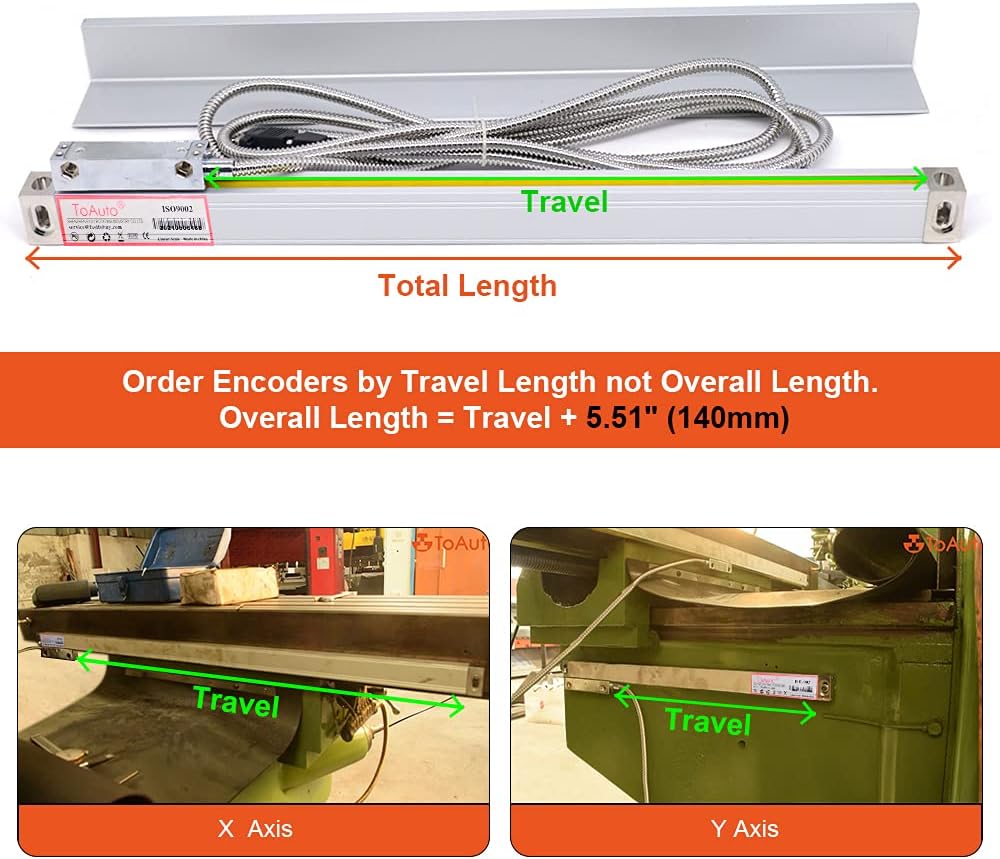

Total (overall) length: Travel length + 140mm
Operating temperature: 0~45 degree centigrade
Storage temperature: -30~70 degree centigrade
Relative humidity: Less than 90%
Readout allowable input signal: TTL square wave
Allowable input signal frequebcy: Less than 5M Hz
Max resolution of digital display length: 5µm(0.005mm)
Min resolution of digital display angle: 0.0001/pulse

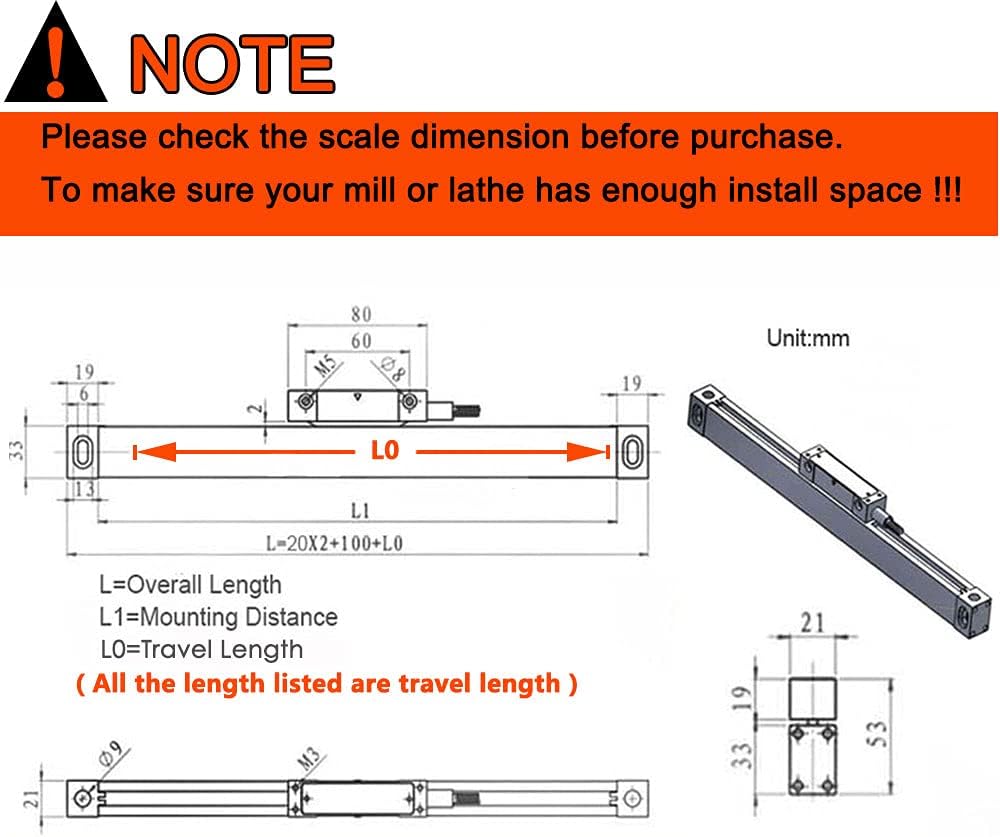

Dimensions: Please see drawing below
Linear Scale communication: DB9(RS232)
Cable length: 3 Meter (about 9 feet)
Input voltage: 5V

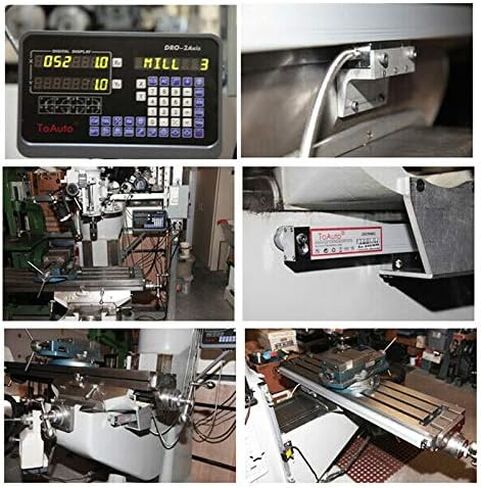

Application field
The digital readout is applicable for the machine such as millers, lathes, boring machines, grinding machines and EDM, etc.. Read all the instructions in the manual carefully before used and strictly follow them. Keep the manual for future references.
