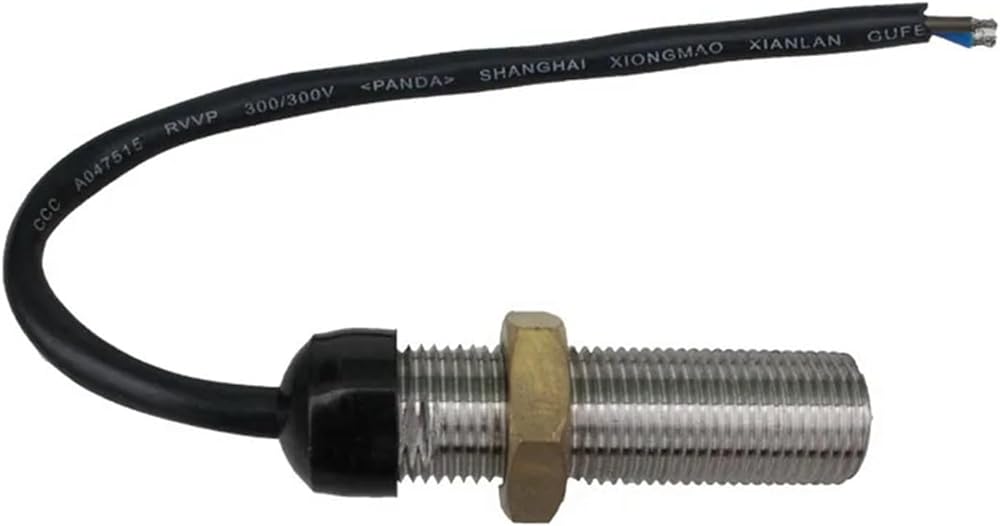

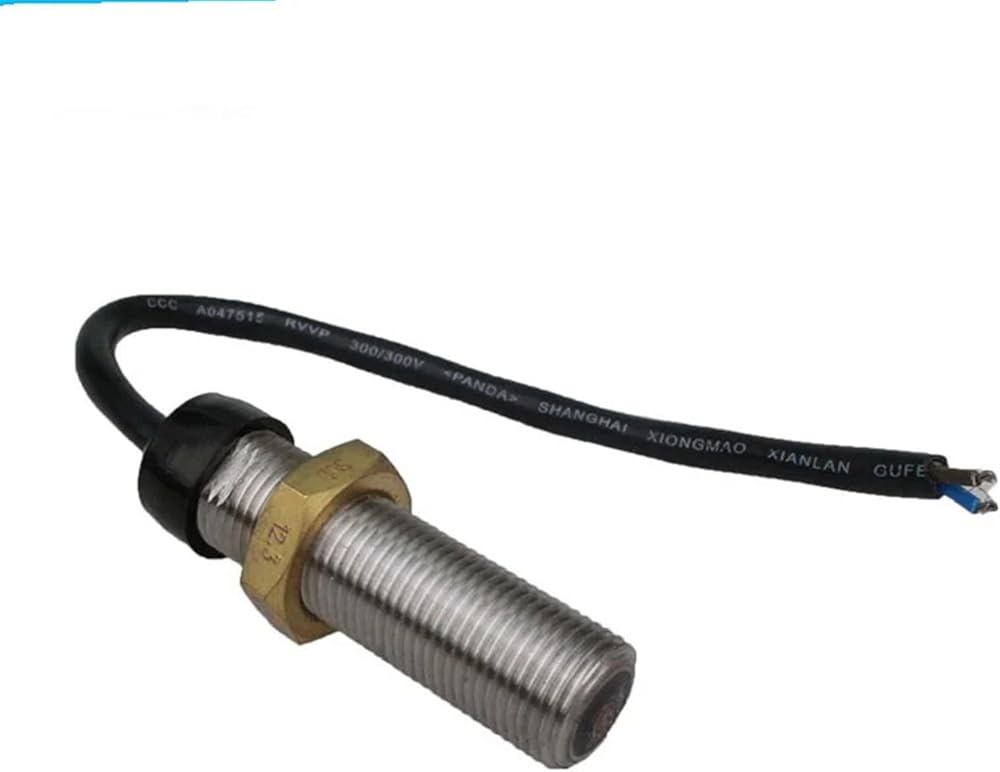

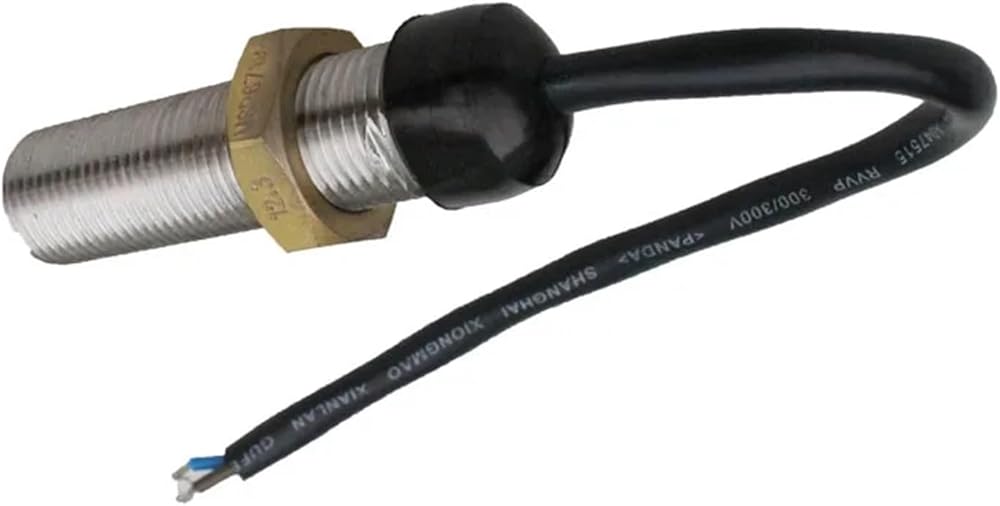

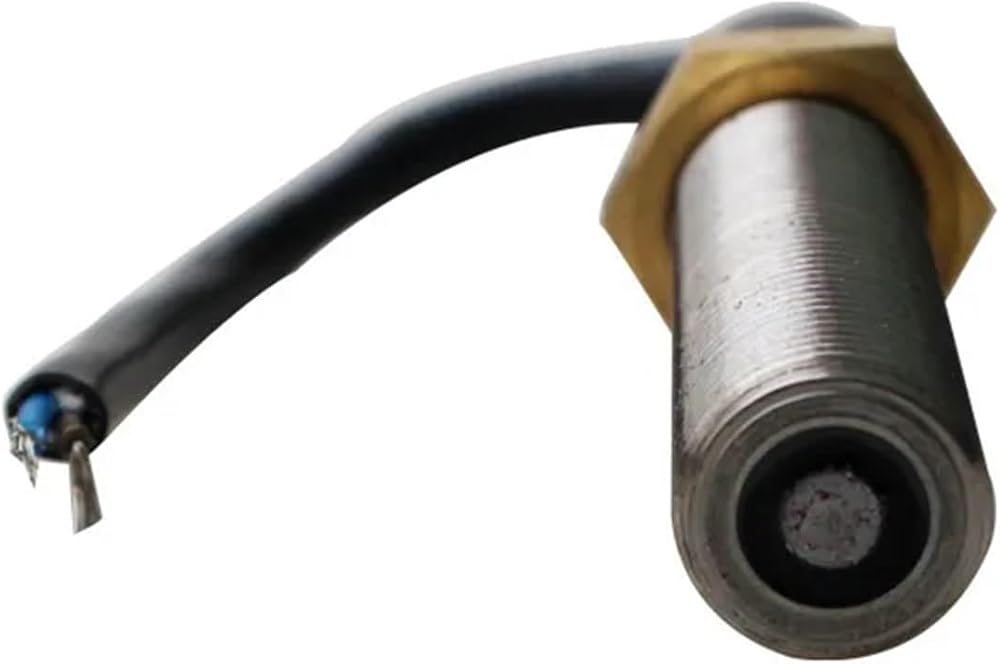

Magnetic Speed Sensor MSP6719
The Magnetic Speed Sensor detects when ring gear teeth, or other ferrous projections, pass the tip of the sensor. Electrical impulses are produced by the sensor's internal coil and sent to the speed control unit. The signal from the magnetic speed sensor, teeth per second (Hz.), is directly proportional to engine speed.
TECHNICAL DATA
P/N
Description
5/8 - 18 UNF Threaded
MSP674
3" w/o Matting Half Connector / High Output
MSP675
3" w 7" Leads
MSP676
5" w 12" Leads
MSP677
3" w/o Mating Half Connector
MSP678*
5" w/o Mating Half Connector
MSP679*
3" Mating Half Connector / Weather Boot
MSP6710*
5" Mating Half Connector / Weather Boot
MSP6719
2.375" w 6" Leads
MSP6720
4" w 6" Leads
MSP6721
3" w Automotive Connector
MSP6721C
3" w A
