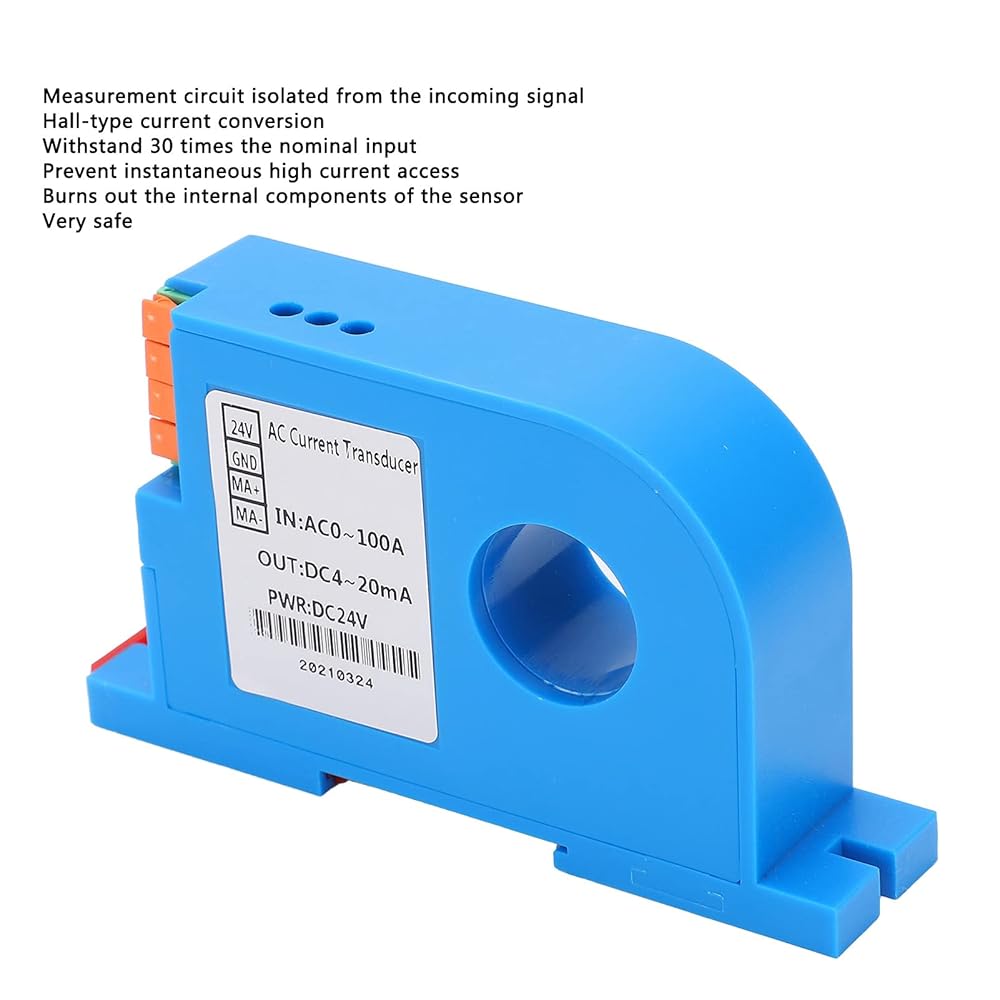

[HIGH PRECISION HALL EFFECT SENSOR] This AC current transmitter features Hall type current conversion for accurate measurement of AC0 100A signals. With a precision of 0.5% and 30 times overload capacity, it prevents high current damage while maintaining in harsh environments.
[STRONG NOISE FILTERING CAPABILITY] The isolation design separates detection and output signals to minimize interference. Advanced filtering technology enhances signal stability and signal to noise ratio, ensuring reliable performance in industrial applications with electromagnetic disturbances.
[SAFE AND RELIABLE INSULATION] The primary and secondary sides are highly insulated with 3KV isolation withstand voltage. This ensures safety while providing like low power consumption, compact size, and wide frequency response from 20Hz to 5kHz.
[EASY INSTALLATION DESIGN] Mounts effortlessly using standard guide rails and flat screws for quick setup. The perforated input design eliminates insertion loss, making it ideal for retrofitting existing systems without complex modifications.

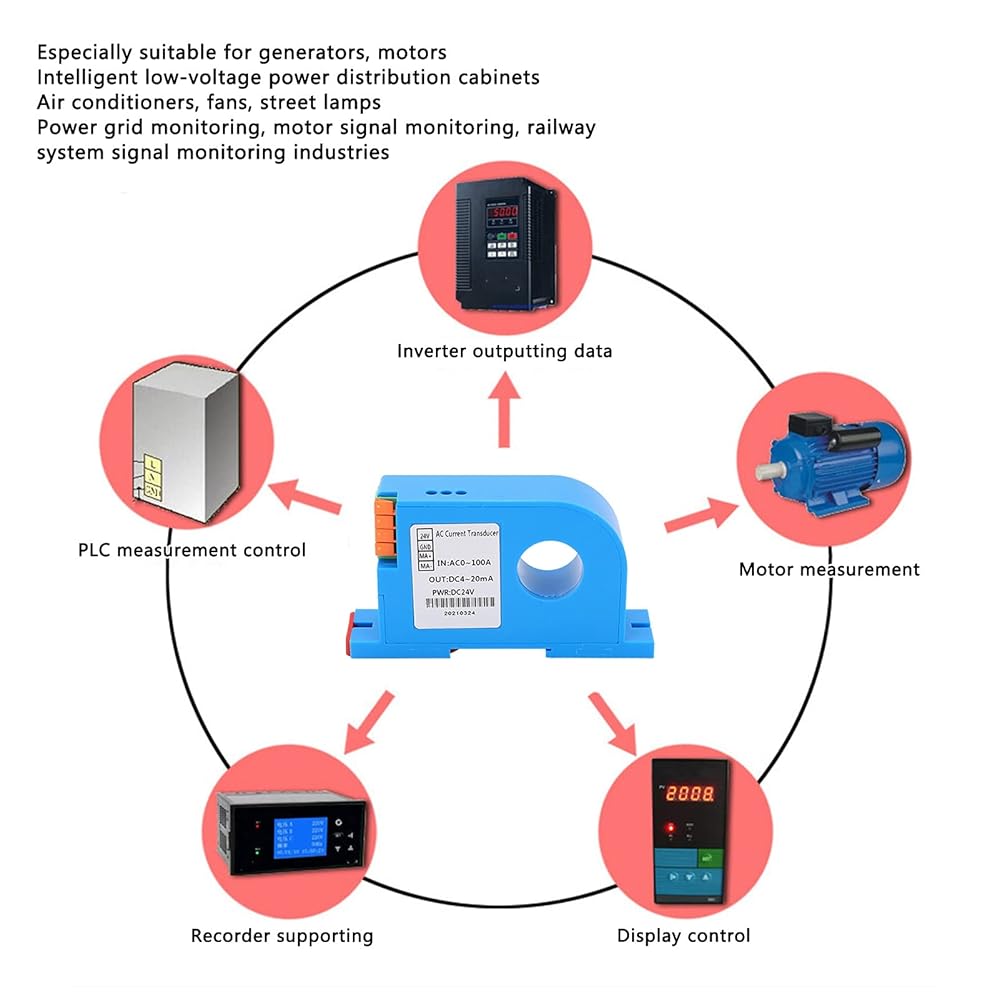

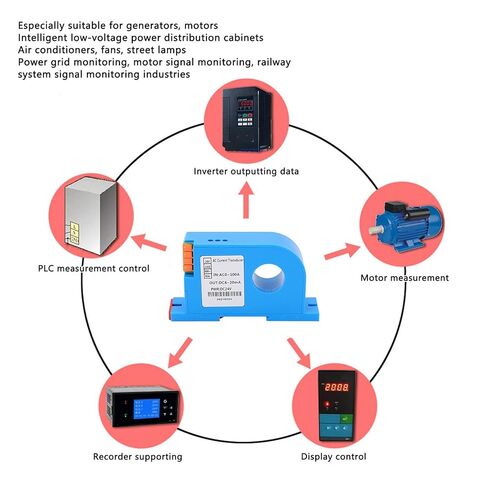

[VERSATILE INDUSTRIAL APPLICATIONS] for generators, motors, smart power distribution cabinets, and railway signal monitoring. Its robust construction and intelligent load current tracking make it essential for air conditioners, street lamps, and grid monitoring systems.

Spec:

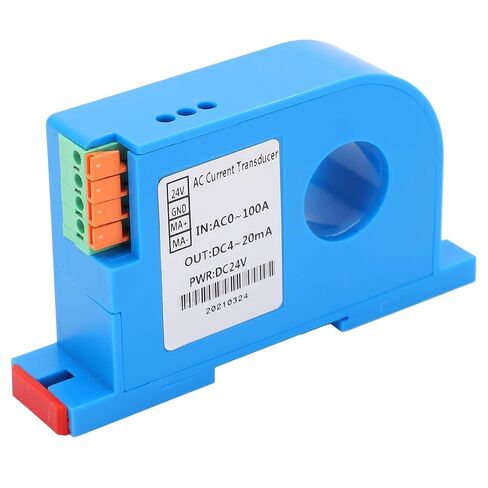

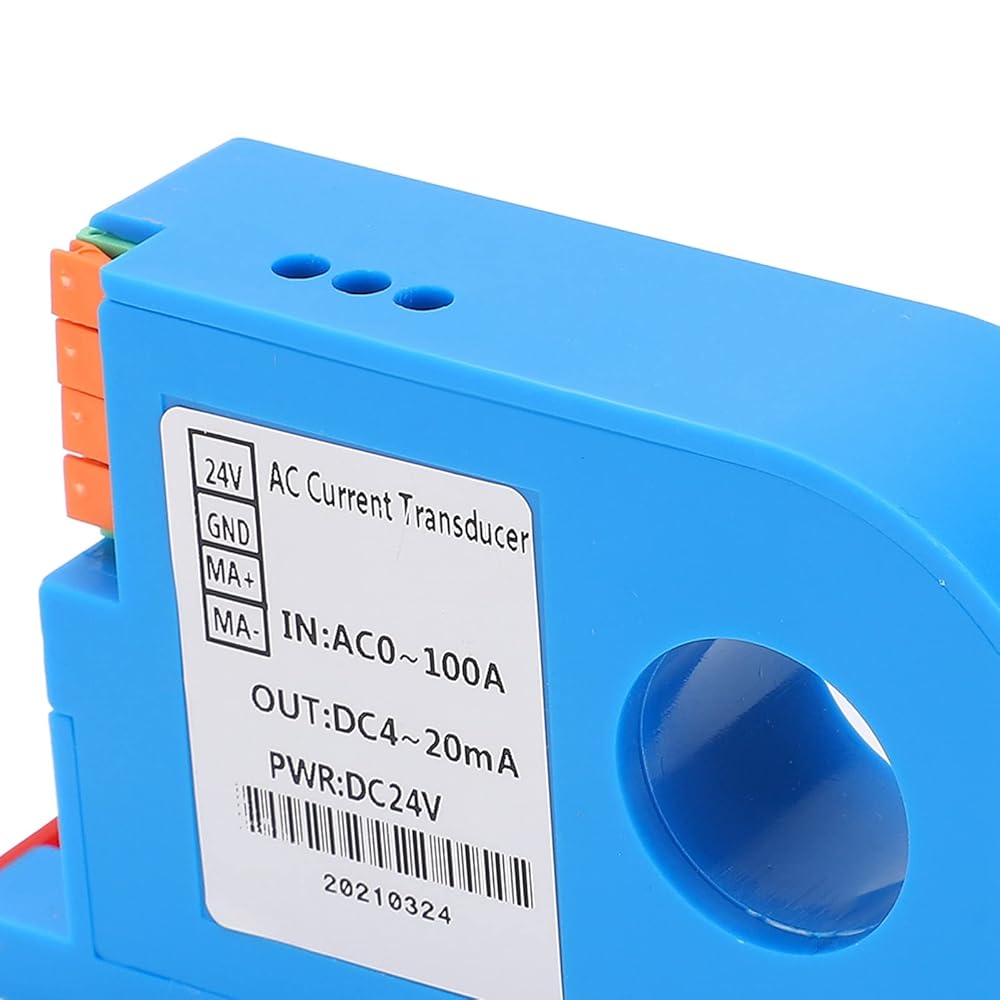

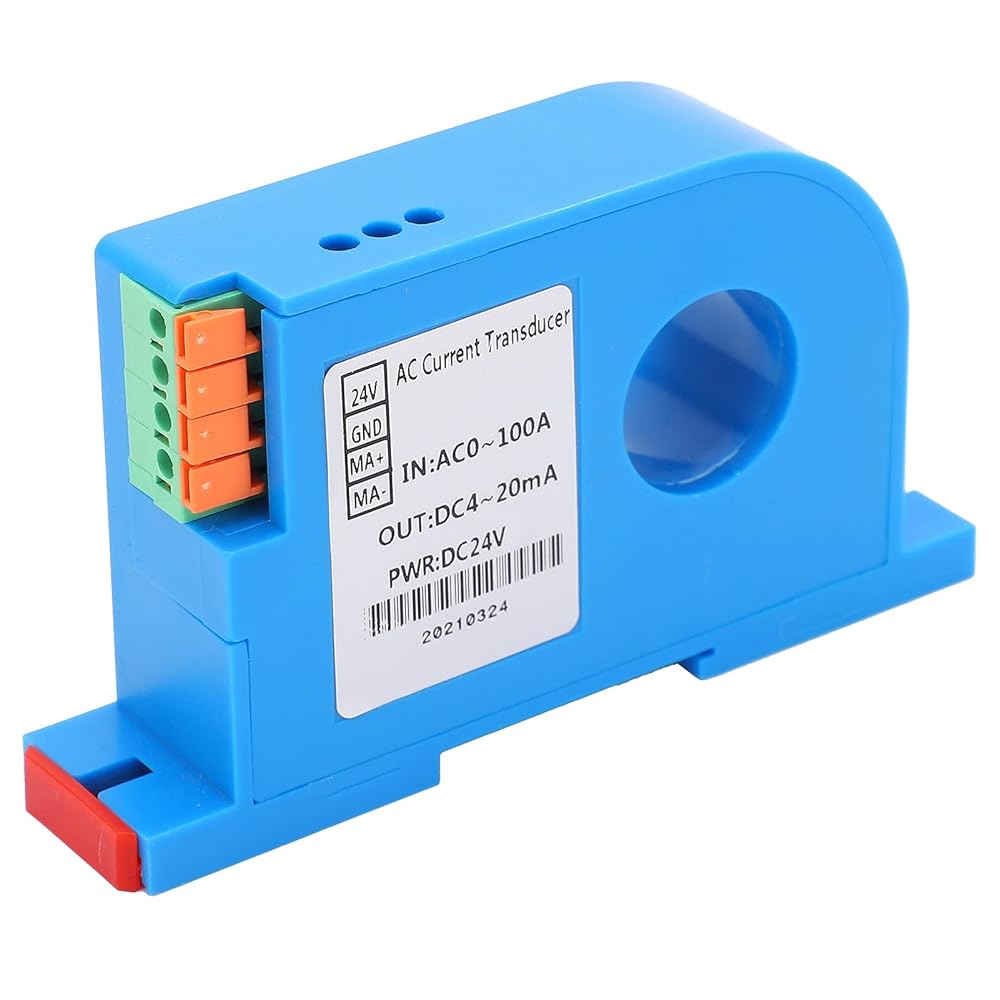

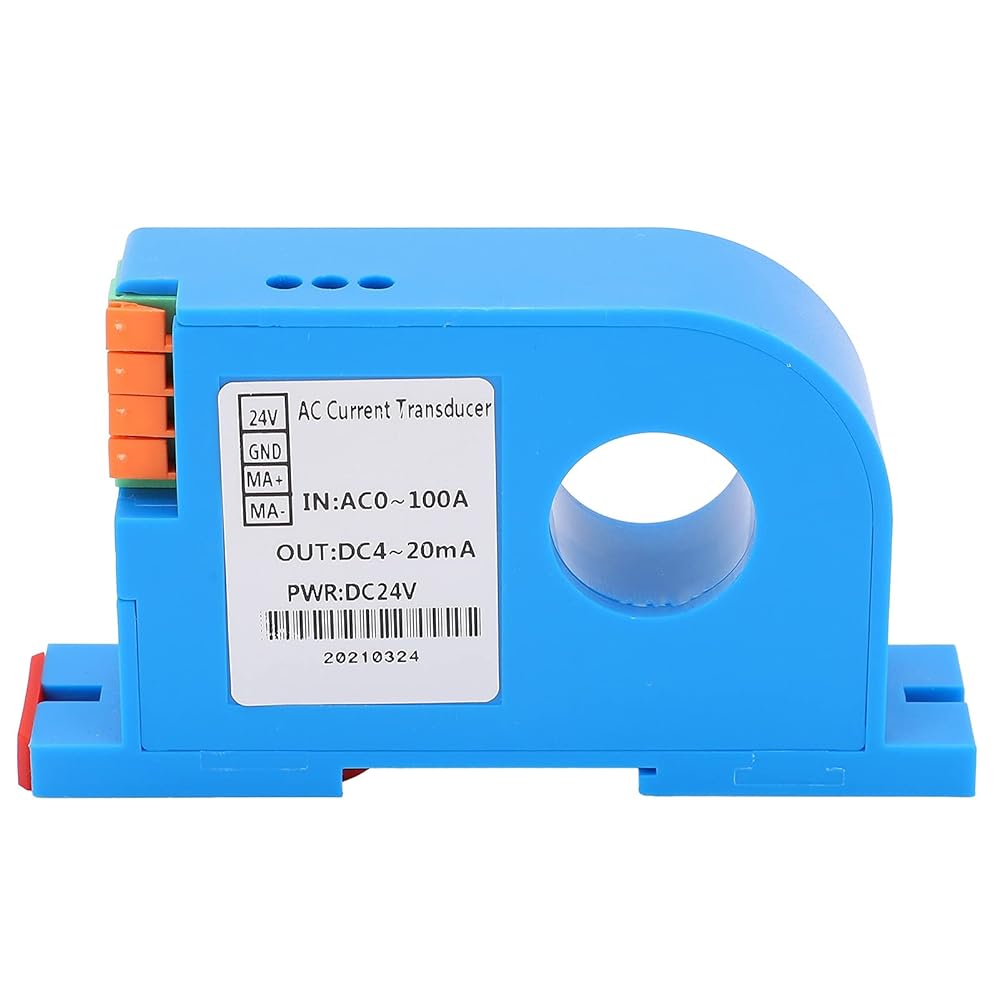

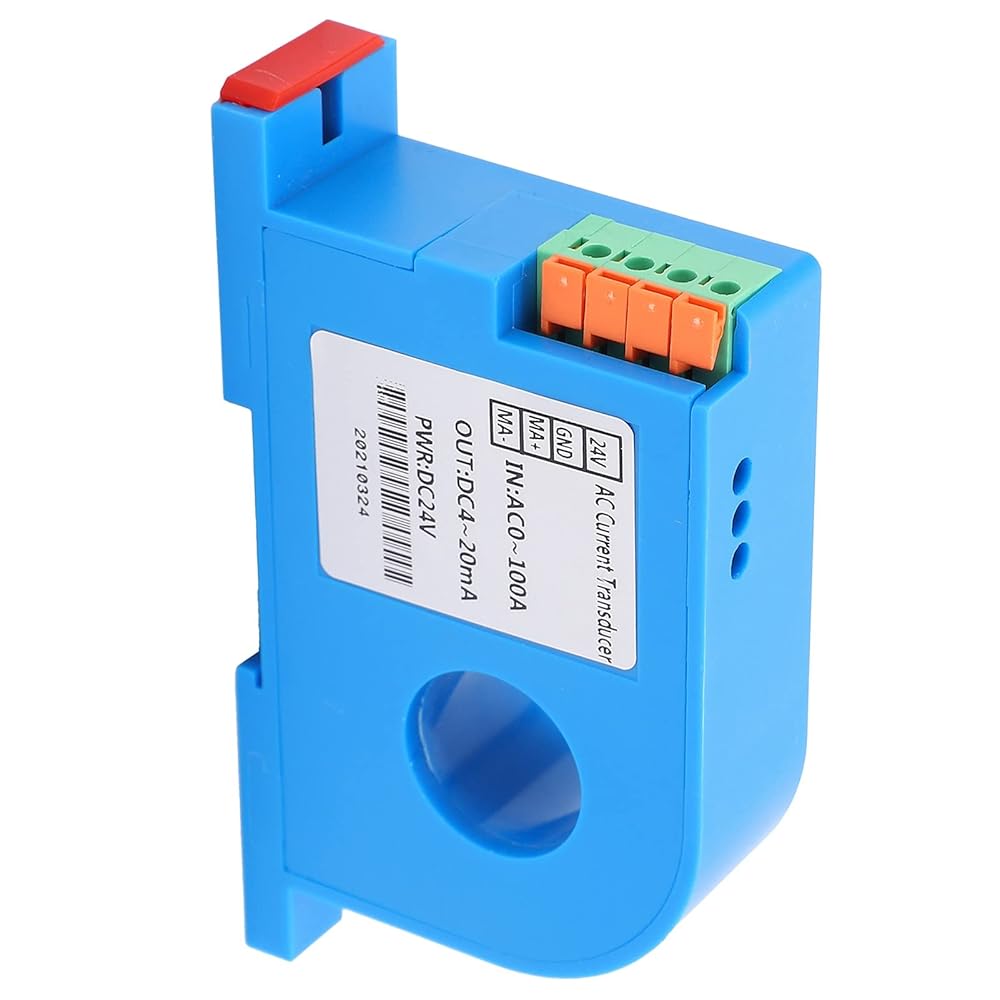

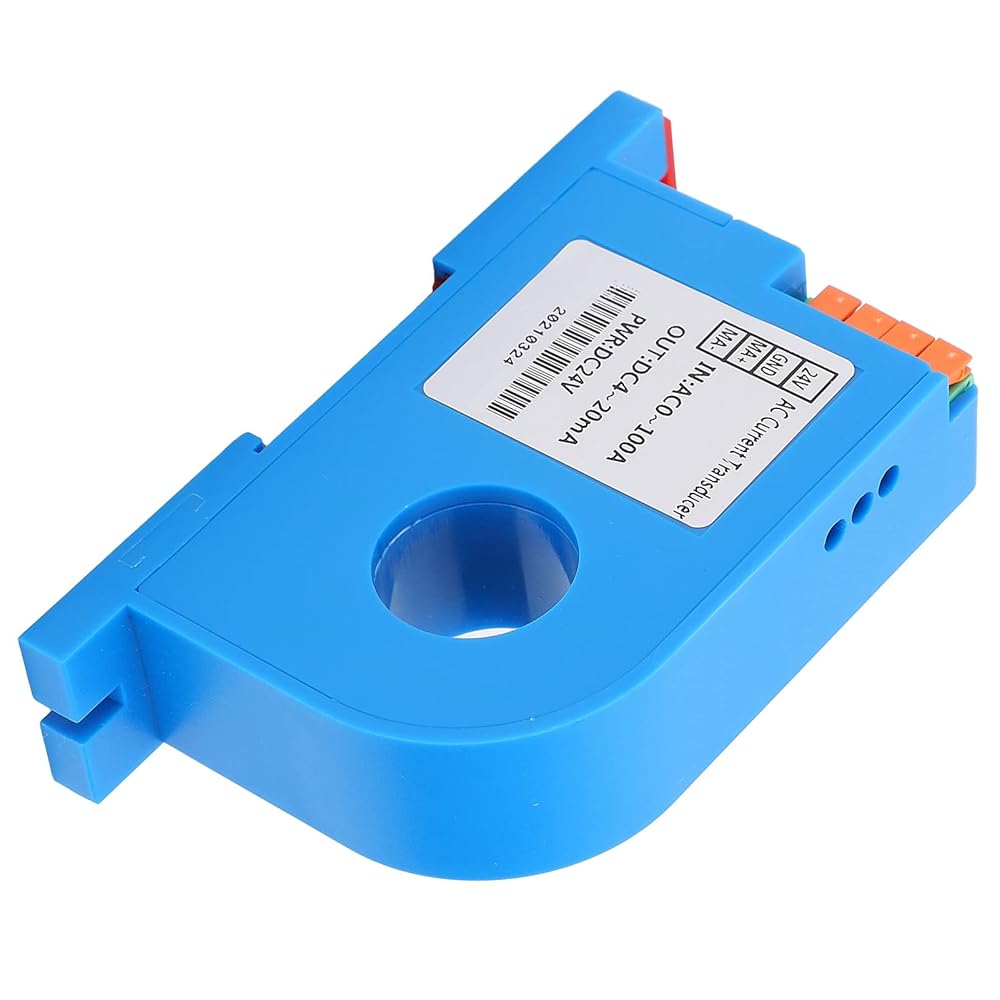

Item Type: AC Current Transmitter
Material: ABS
Power Supply: DC24V

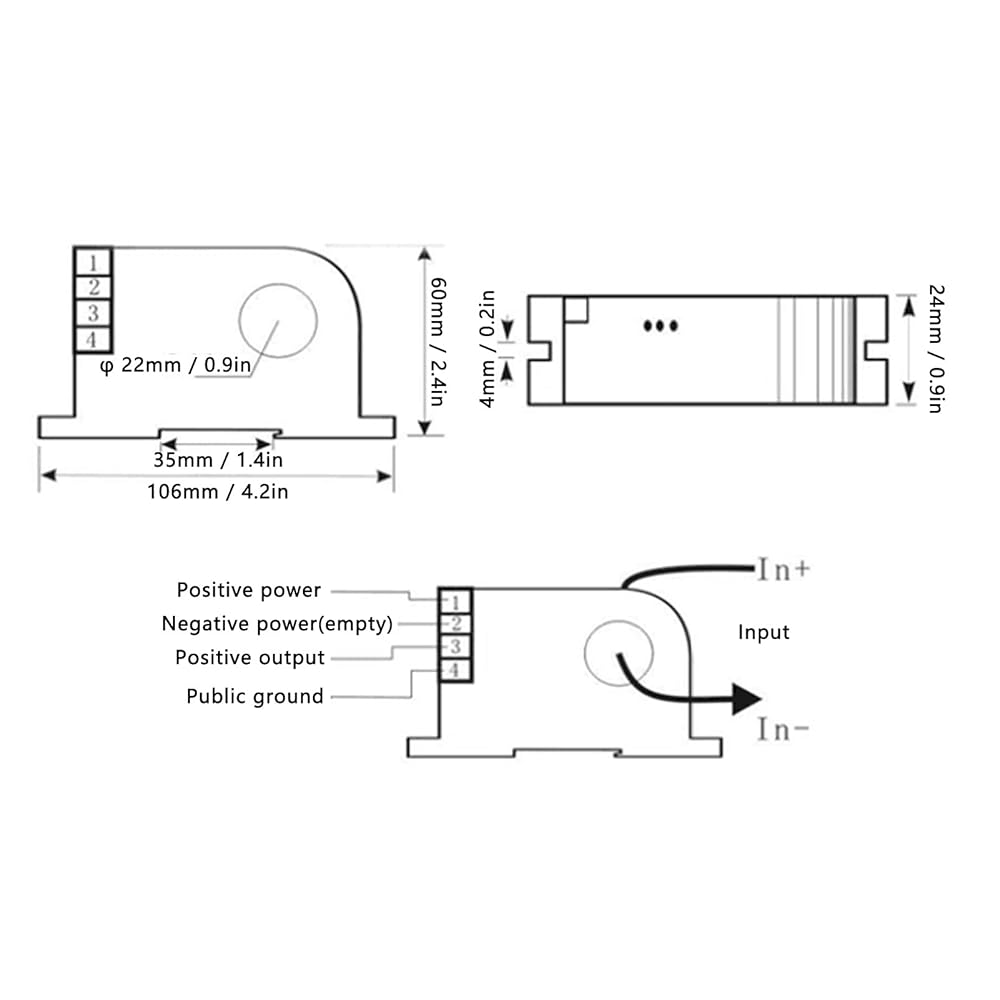

Installation Method: Standard rail + flat screw fixation
Product Use: Used to measure AC current, especially for power frequency 50Hz sine wave AC current
Rated Current: AC0-100A
Rated Output: DC4-20mA
Load Capacity: Voltage Output: 5mA; Current Output: 6V
Accuracy: 0.5%
Overload Capacity: 30 Times the nominal input
Isolation withstand Voltage: 3KV/50Hz, 1Min
Offset Voltage: 10mV
Temperature Drift: 500PPM/℃
Linearity: 0.1%
Frequency Bandwidth: 20-5KHz
Current Consumption:
Package
