Features:

Technical specifications:
Material: stainless steel.
Voltage: DC 5V
Pressure: 30 psi, 100 psi, 150 psi, 200 psi, 300 psi, 500 psi (optional)
Thread Type: 1/8 NPT

30 psi
Input: 0-30 PSI
Output: Linear voltage output 0.5V ~ 4.5V Outputs 0 psi 0.5V, outputs 15 psi 2.5 V, outputs 30 psi 4.5 V.
Accuracy: Within 2% reading (full scale)
Thread: 1/8-27 NPT
Wiring Connector: Water Sealed Quick Disconnect The coupling connector is included.
Wiring: Red for +5V; for ground; Blue for signal output.

100 PSI
Input: 0-100 PSI
Output: Linear voltage output 0.5V ~ 4.5V Outputs 0 psi 0.5V, outputs 50 psi 2.5 V, outputs 100 psi 4.5 V.
Accuracy: Within 2% reading (full scale)
Thread: 1/8-27 NPT
Wiring Connector: Water Sealed Quick Disconnect Coupling connector and wiring (braid) are included.
Wiring: Red for +5V; for ground; Blue for signal output.

150 PSI
Input: 0-150 PSI
Output: 0.5-4.5V linear voltage output Outputs 0 psi 0.5V, outputs 75 psi 2.5 V, outputs 150 psi 4.5 V
Accuracy: +/-0.5%FS
Thread: 1/8 NPT
Wiring: Red for +5V; for ground; Green for signal output
Overload capacity: 2-4 times the rated pressure
Operating temperature: -40℃~+120℃
Compensation temperature: 0 °C ~ +80 °C.
Protection class: IP67
Pressure medium: oil, gas and water compatible with 316L stainless steel

Package includes:

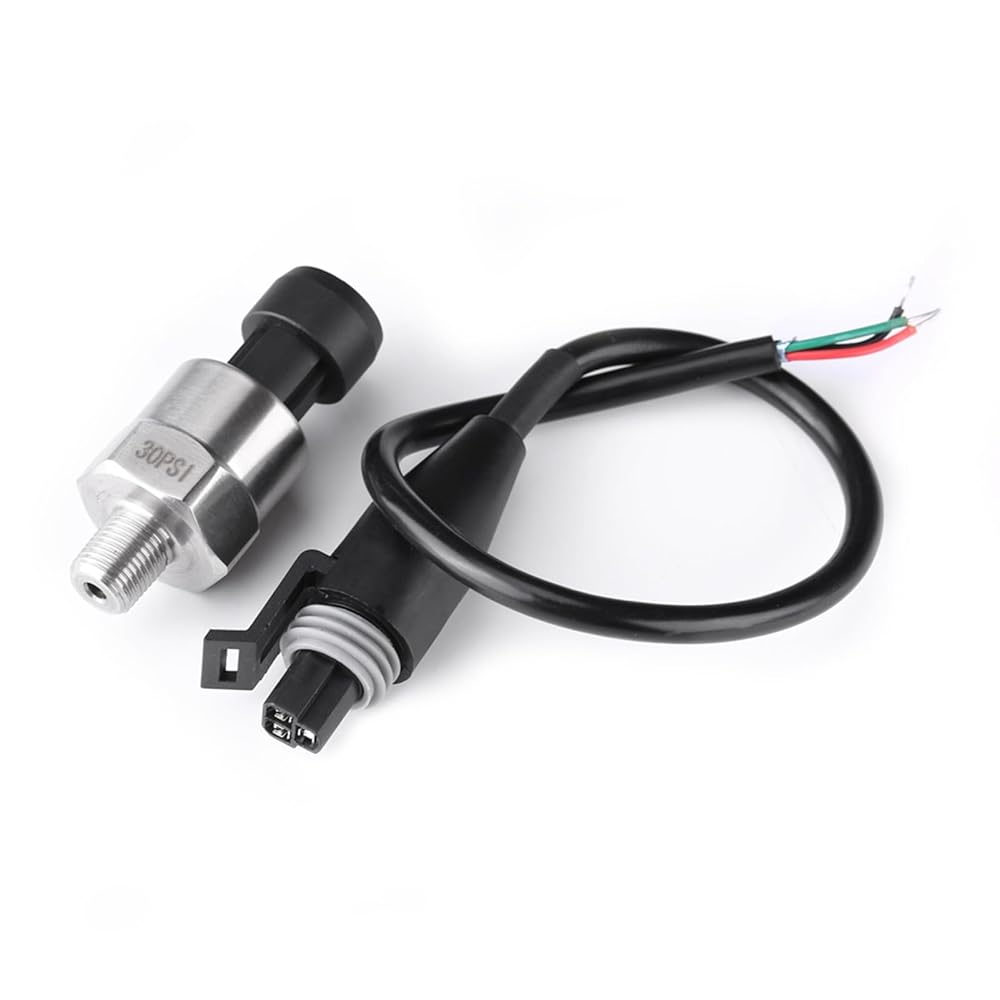

1 x pressure transducer (with cable)
