Diameter 15mm Optical Glass Focal Length 12mm Height 6.5mm LED Optics Plano convex condenser No Edge Lens for LED
Specification
Optical Glass Focal Length Plano Convex Glass Lens
Material: Optical Glass
lens: water clear

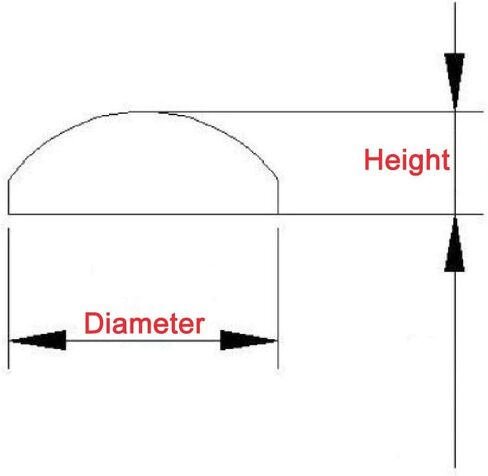

Lens Outer diameter: 15MM
Lens inner diameter: 15MM
Lens height: 6.5MM
Lens Edge thickness: 0MM
Lens focal length: 12MM (for reference only)
Error: positive and negative 0.3mm
Temperature resistance:-30 degrees Celsius to +200 degrees Celsius
Refractive index:1.474
Light transmission rate of up to 95%
Light angle: adjustable angle (through the lens and the distance between the LED adjustment, you can get the actual condenser angle)
Applied Arrange
Optical glass convex lens for LED lighting, car lights, focusing flashlight, spot light, explosion-proof lights, downlights, condenser, sensors, optical instruments, floodlights and other lighting products. With high temperature, Aging, high strength, high light transmittance. Spot uniform, no black hole, shadow, dark area. Can be used with a variety of high power LED1W, 3W, 5W, 8W, 10W 15W 20W, 50W and other ultra-high power LED product applications.
Package included
5PCS Diameter 15mm Optical Glass Focal Length 12mm Height 6.5mm LED Optics Plano convex condenser No Edge Lens for LED
