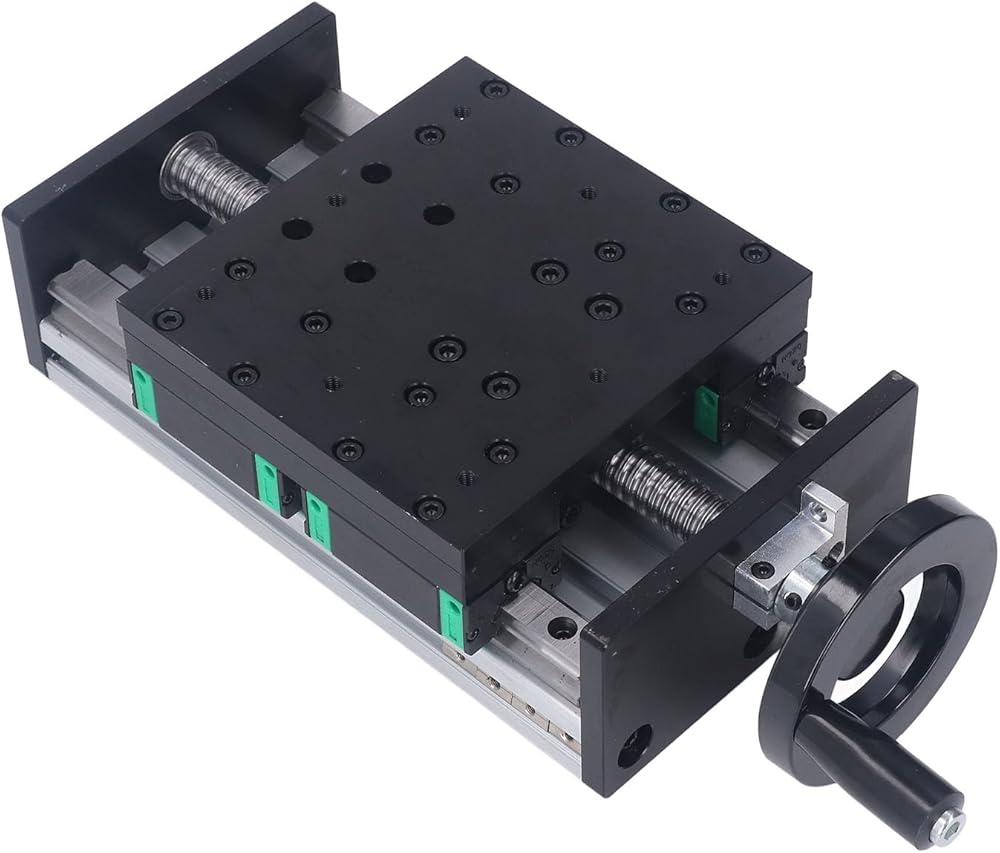

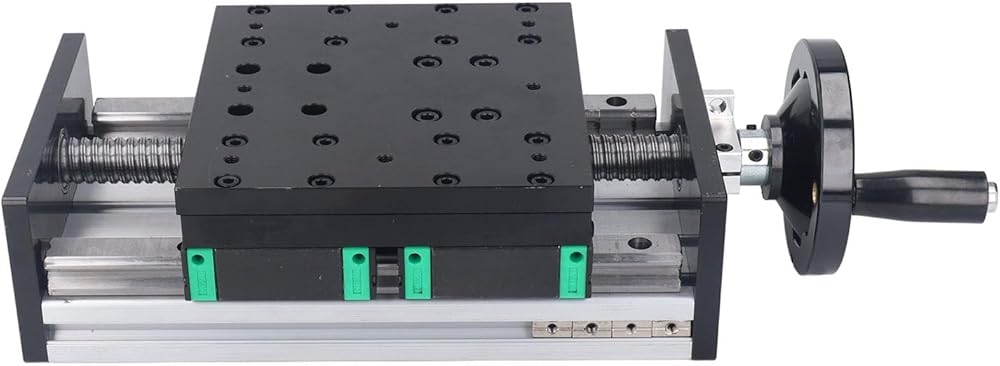

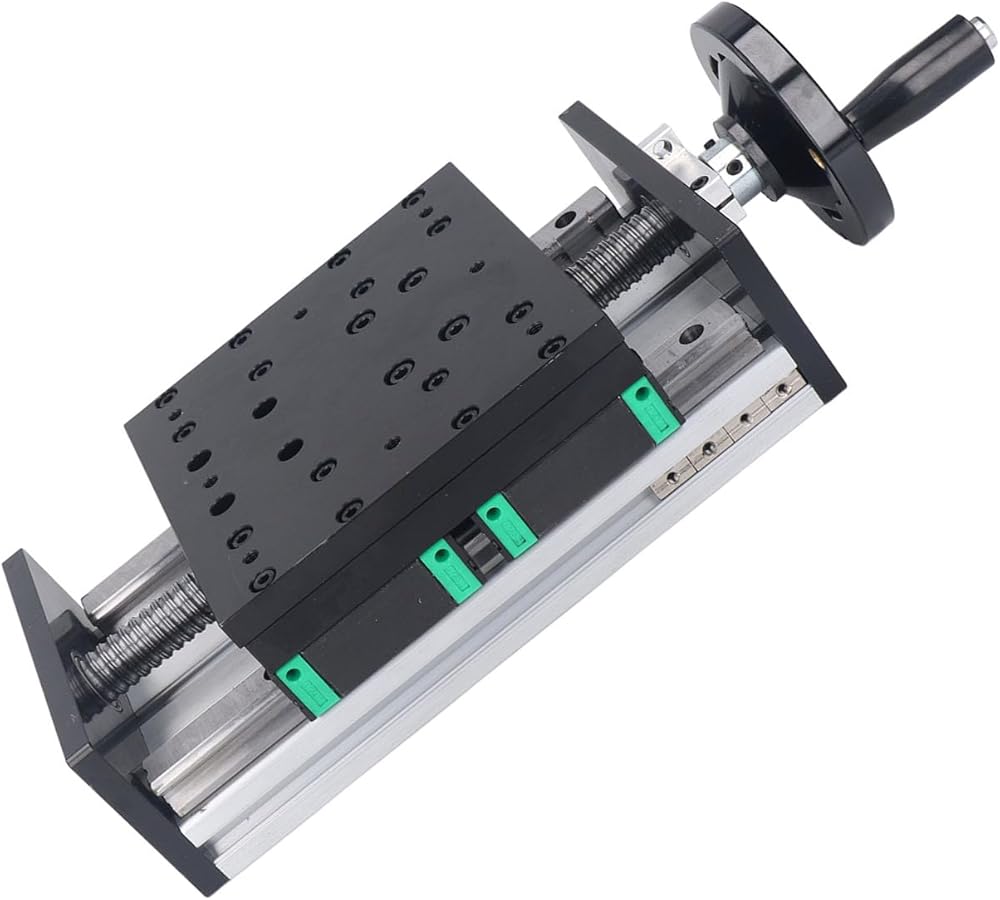

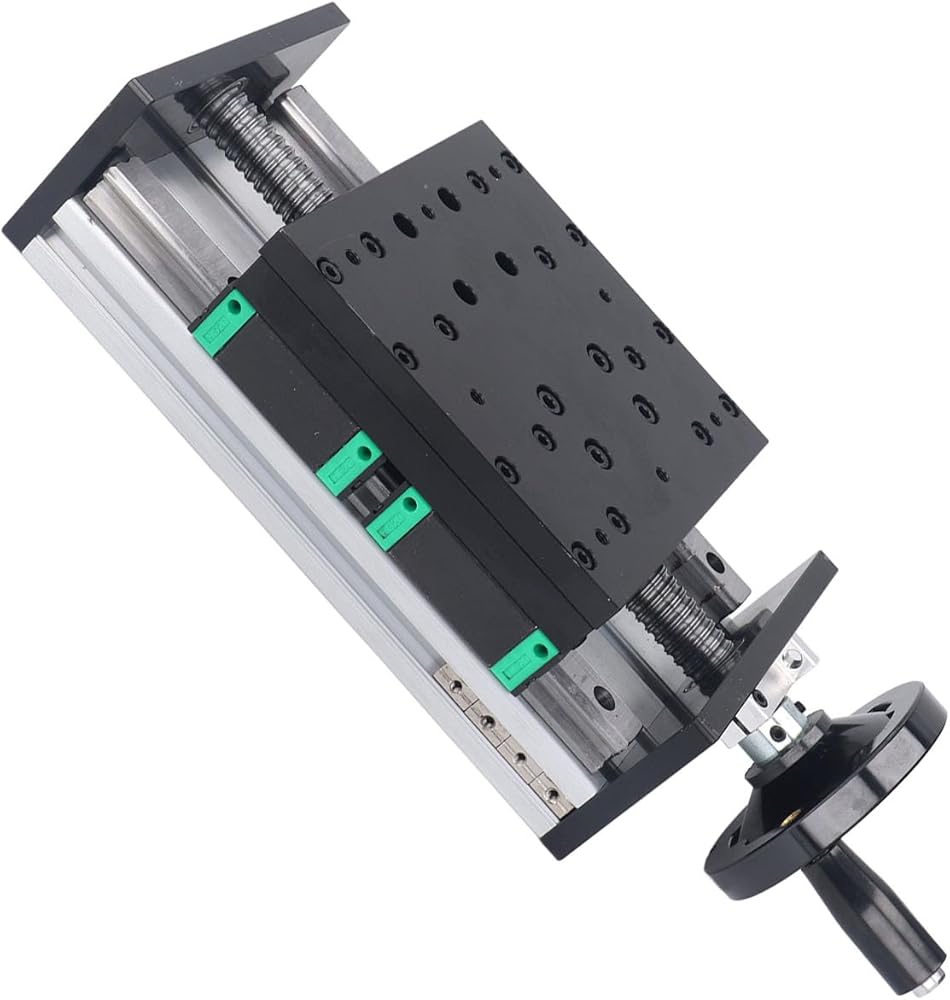

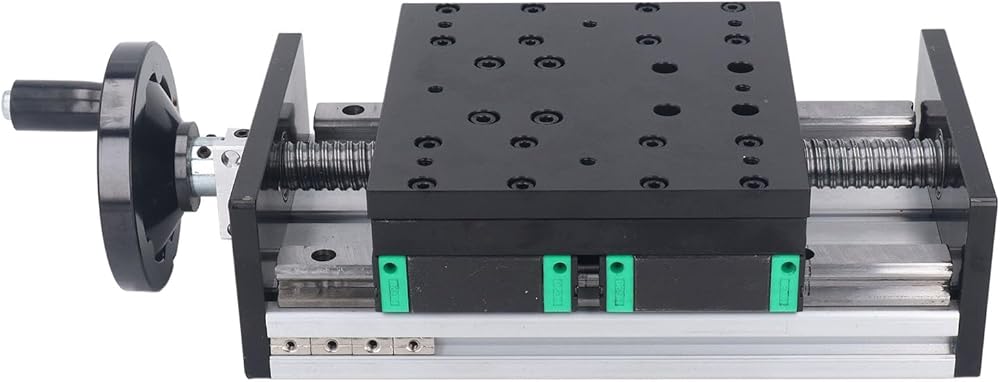

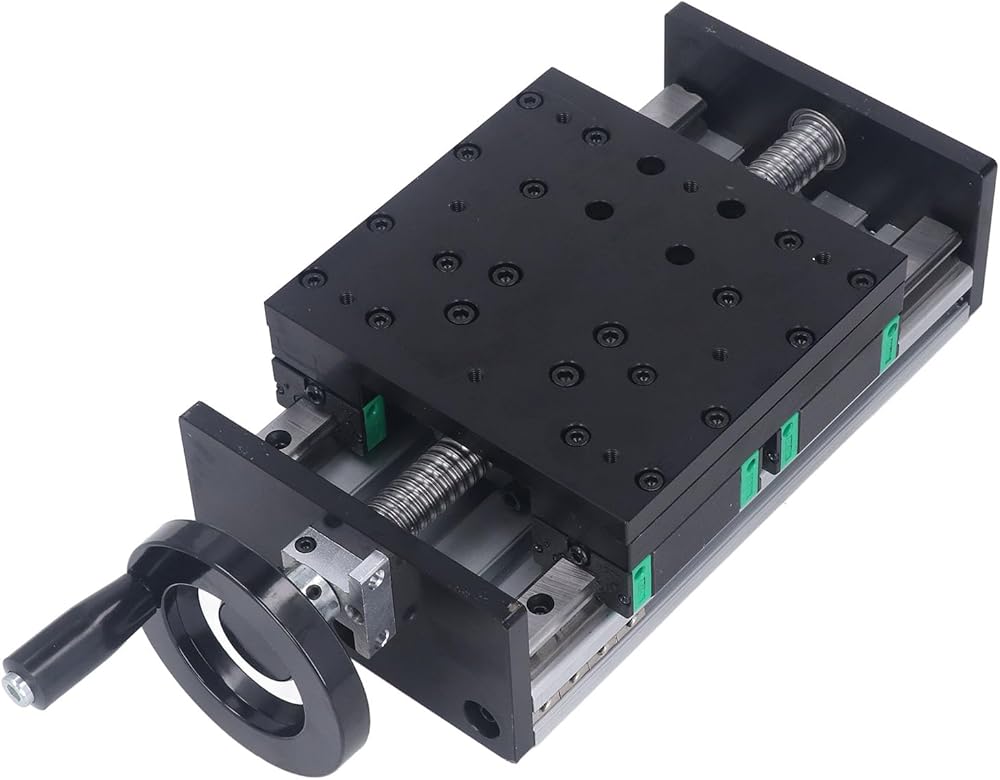

1. Technical Parameters The linear table actuator is made of aluminum alloy with an effective stroke of 100mm, a maximum horizontal load of 100kg and a maximum vertical load of 80kg
2. Stability & Low Noise Using a 20mm diameter ball screw, which greatly increases the bearing capacity of the product, equipped with double tracks, high stability and not easy to shake. Easy to use, smooth operation, fast and quiet
3. Standard M5 mounting holes: movable M5 nuts on the side and bottom make the installation of the sliding table more flexible.
4. Beautiful and practical: standard sliding platform with aluminium alloy profile structure, surface sandblasting, beautiful and rust-proof, ensures precise hole CNC machining
5. Flexible and lockable: control the direction of the slider manually, support the easy operation and with the adjustable twist lock of the handle, the slider is not easy to loosen

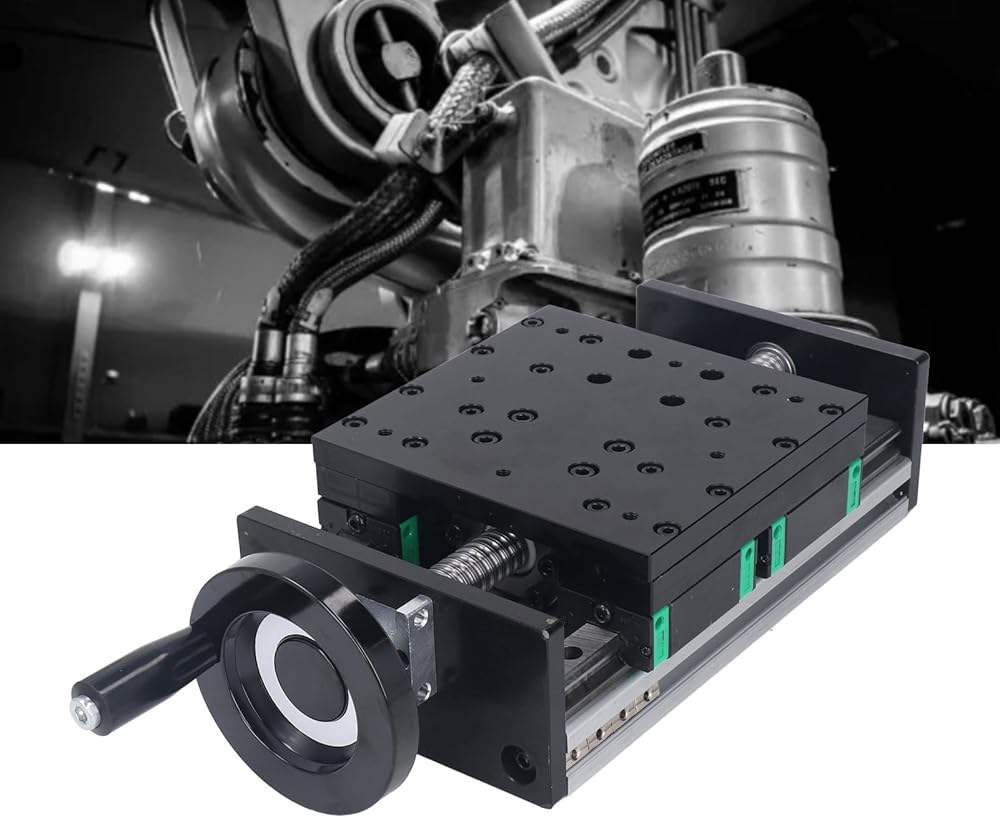

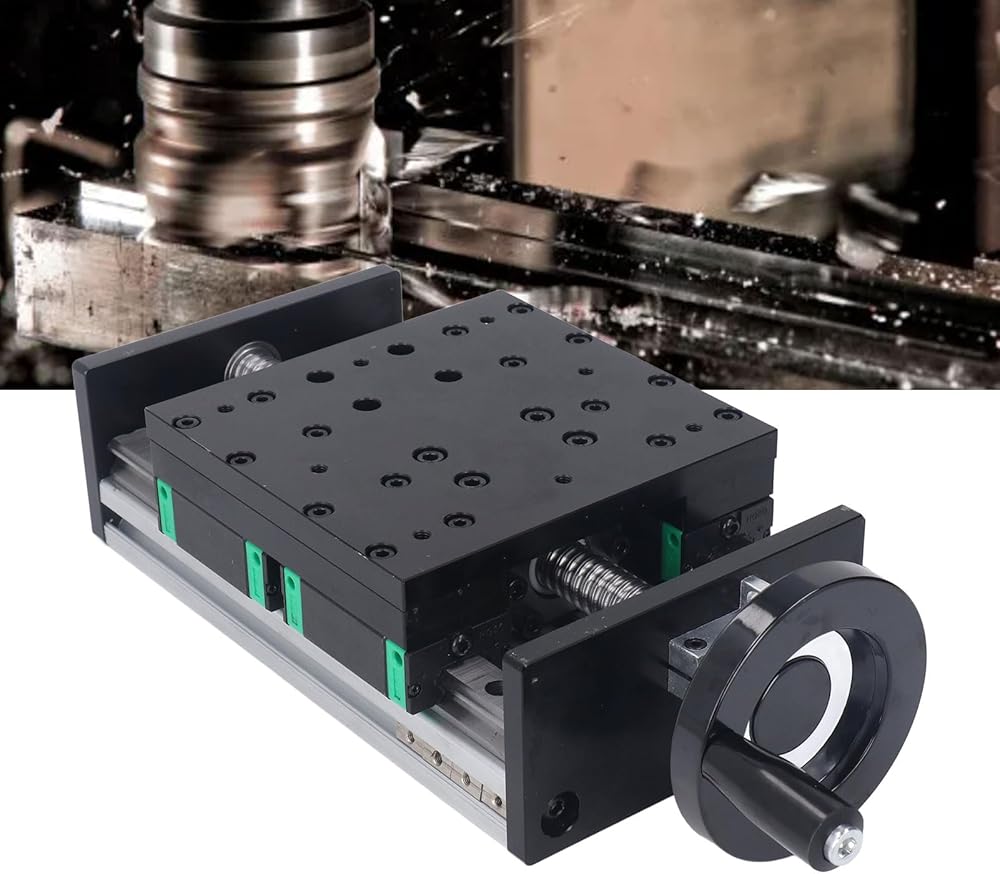

6. Applicable Scenario The manual sled table is widely used in industrial machine tools such as milling machines, lathes, grinders, etc.

Technical data:
Item Type:Linear Table Drive
Maximum load:
Horizontal: ≤100 kg; Vertical: ≤80 kg.
Maximum accuracy: positioning accuracy: ≥0.03 mm.
Width: approx. 150 mm / 5.91 inches.
Maximum stroke: 100 mm.
Thread diameter: 20 mm.
Main function: converts a rotary motion into a linear motion or a twist into an axial, repetitive force
Application conditions: Cross type, T-type, I-type, portal type, 2-axis, 3-axis, 4-axis combination

Application:
Install and use directly.

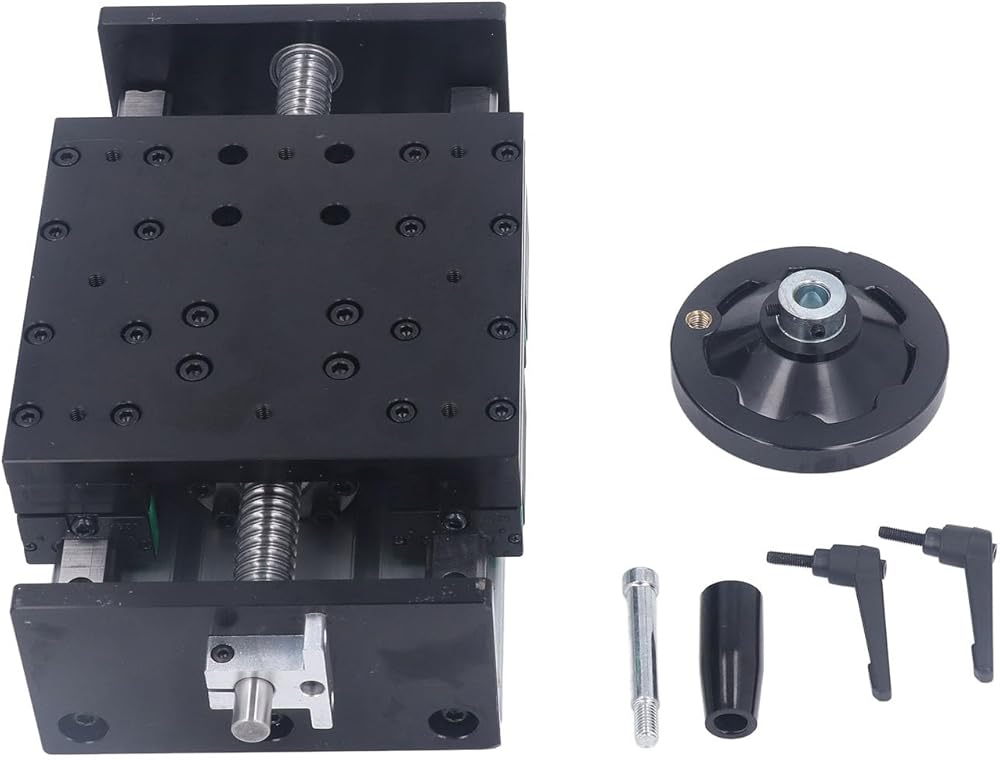

Package list:
1 x sliding table.
1 x hand wheel.
2 x rocker arms.
2 x
