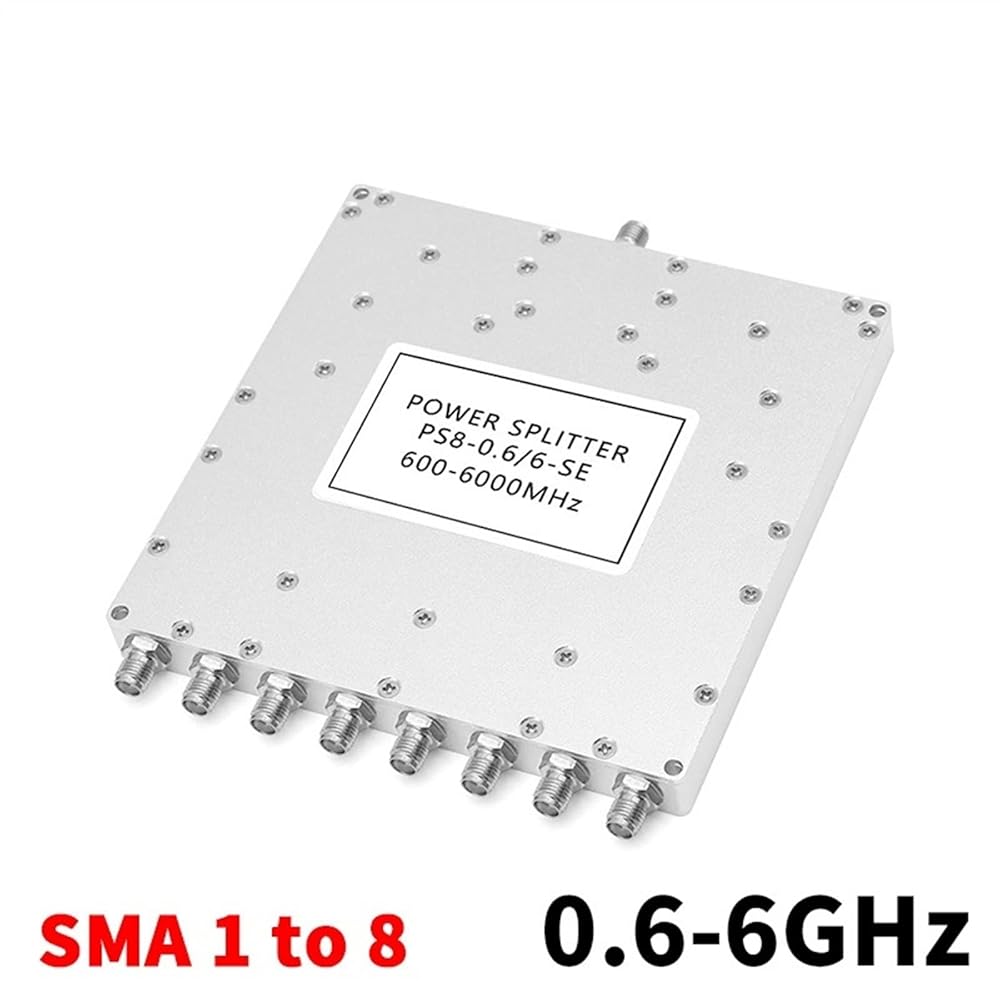

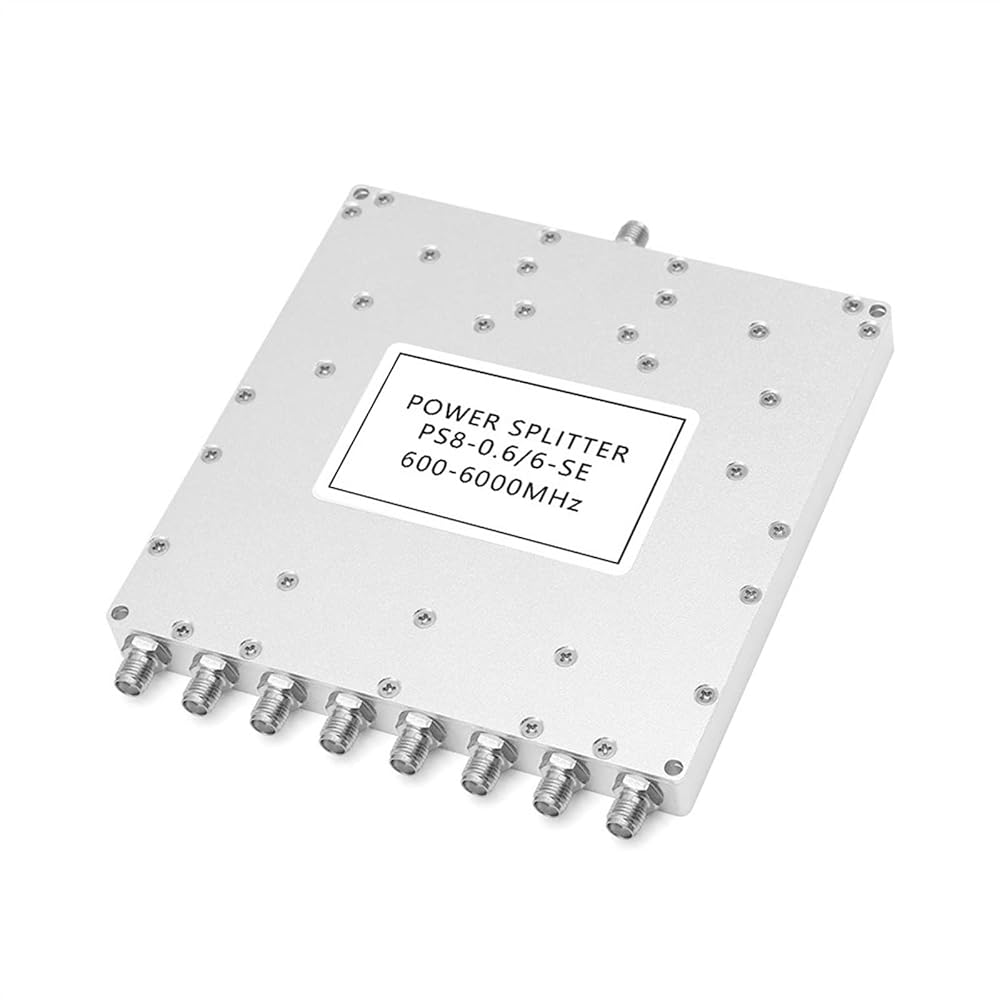

6000M One-point Eight-channel Microstrip Power Divider 0.6-6GHz SMA Power Divider Test 1Pcs
Frequency range: 600~6000MHz
Insertion loss: 2.7dB (excluding theoretical loss 9.0dB)
Input standing wave: Typ.1.17 / Max.1.35
Output standing wave: Typ.1.12 / Max.1.25
Isolation: Typ.26dB / Min.18dB
Amplitude balance: 0.4dB
Phase balance: ±5°
Impedance: 50 Ohms
Port Connector: SMA-Female
Withstand power: 30W for splitter; 2W for combiner
Working temperature: -35 ~ +75

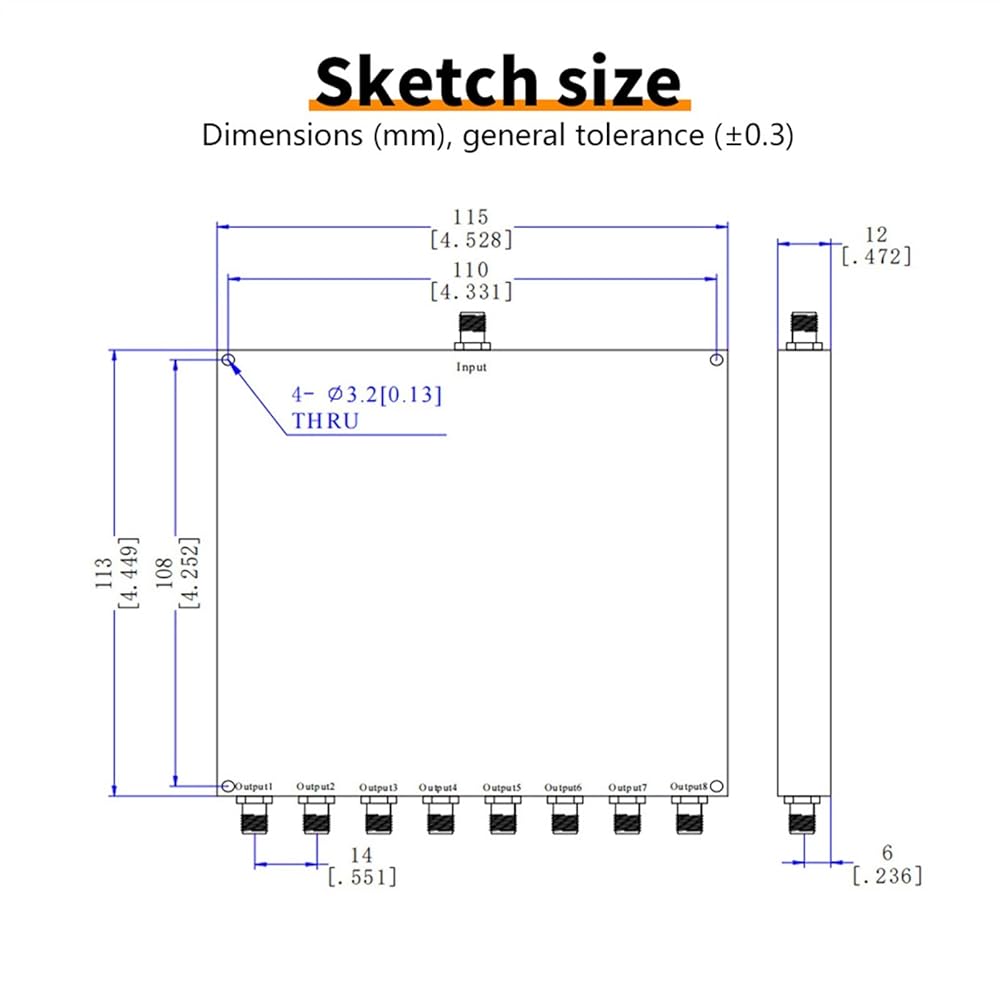

Dimensions: 113*115*12(mm)
Weight: 334g
