Digital Linear Displacement Sensor, Injection Molding Machine Pull Rod Measure Resistance, 1pc
Application scope of tie rod electronic ruler: suitable for position detection of various types of equipment, such as injection moulding machine, die casting machine, rubber machine, shoe machine, EVA injection moulding machine, hollow bottle blowing machine, woodworking machinery, hydraulic press, etc.

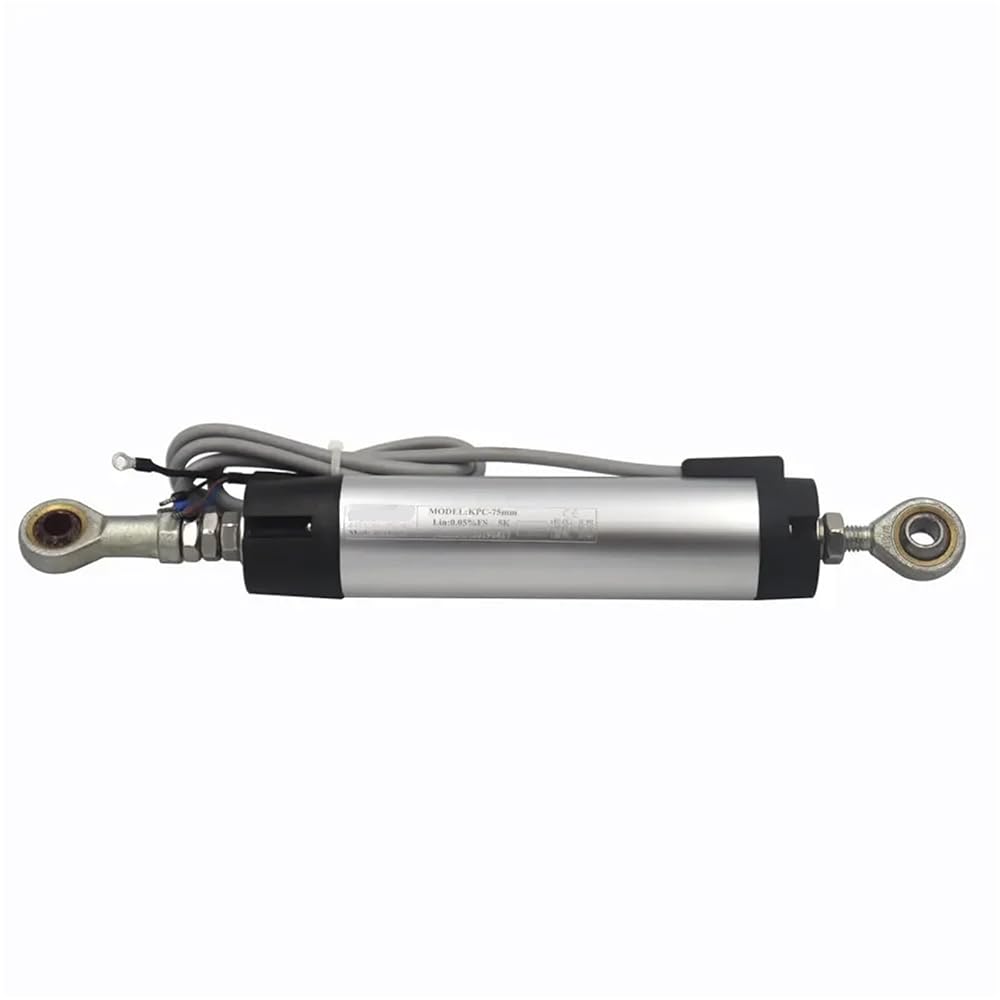

KPG twisted linear displacement sensor,
usually powered by 5V and 10V power supply, outputs 0-5V and 0-10V voltage
signals; Or 12-24V power supply, output 0-5V, 0-10V, 4-20mA analog signals and
RS485 digital signals through internal or external transmission modules. Side
outgoing line, shielded wire standard configuration is 1m. If you have special
requirements, please contact us to explain
The installation instructions and the
selection of linear displacement sensor range need to leave margin. It is
recommended to select a slightly larger range based on the actual travel. When
installing the sensor, it is advisable to leave the allowance evenly at both
ends, and then lock the bracket screws after the position is adjusted. 2. The
two ends of KP twisted linear displacement sensor are twisted and fixed, and
there is no special requirement for installation to neutral. 3. The length of
the linear displacement sensor is connected to the circuit as a voltage divider
to display the actual value of the measured position with relative voltage. The
sensor power supply voltage should be stable, and the industrial power supply
requires ± 0.1% stability, otherwise the measured data will fluctuate greatly
The power supply should have sufficient capacity. If the power supply capacity
is too small, it is easy to cause the display data to jump, especially when the
solenoid valve drive power supply and the sensor power supply are together, the
digital jump is more likely to occur. 6. There shall be no external
interference, including electrostatic interference and high-frequency
interference. Therefore, the sensor signal line should be routed with the
equipment power line in separate slots; The sensor shall be installed with a
forced grounding bracket, and the sensor housing shall be well grounded; The
shielded wire shall be used for the signal wire, and the shielded wire shall be
grounded or connected to the negative pole of the DC power supply at one end of
the electric box. 7. The sensor should be wired correctly. If the wiring is
wrong, the sensor may be seriously damaged. 8. For sensors used for a long
time, the contact resistance of the brush will be affected due to the invasion
of water, oil, dust, etc., which will cause the measured data of the sensor to
jump.
Important note
Battery Included : No
High-concerned chemical : None
Model Number : KPC-75-275
Measuring stroke : 50-1250mm
Linearity : ±0.1%--±0.04%
RESISTANCE : 5kQ~20kQ
RESOLUTION : Infinite
REPEATABILITY PRECISION : 0.01mm
TEMPERATURE : -60~+150
POWER SUPPLY : 1V-36V
MAX SPEED : 10m/S
