KA-500 70-520 Slim Linear Sensors, Thin Encoder for DRO Readout Dispaly, 1pc(KA-500-370mm) in Kuwait

KA-500 70-520 Slim Linear Sensors, Thin Encoder for DRO Readout Dispaly, 1pc(KA-500-120mm)

KWD 127
Brand
LOXNVUY
Category
Sensors
Weight
0.6 kg
ColorKA-500-120mm
– 1 +

Special Features

  • 【High precision measurement】:With micrometer level resolution, small measurement errors, and the ability to accurately capture small displacement changes, it meets the stringent requirements of precision machining and high-precision positioning
  • 【Wide range adaptation】:The range covers from a few millimeters to several meters, and can be flexibly selected according to different application scenarios, balancing the needs of short stroke precision measurement and long stroke displacement detection
  • 【Multi scenario universality】:Widely used in fields such as CNC machine tools, automated production lines, 3C electronic manufacturing, automotive parts testing, surveying instruments, etc., it is the core component for achieving intelligent manufacturing and precise control
  • 【Diversified signal output】:Supports multiple output modes and seamlessly integrates with mainstream industrial control equipment such as PLC, CNC systems, servo drives, etc
  • 【Industrial grade durability】:Adopting a metal shell and sealed structure, it has the ability to resist vibration, impact, and electromagnetic interference

Description

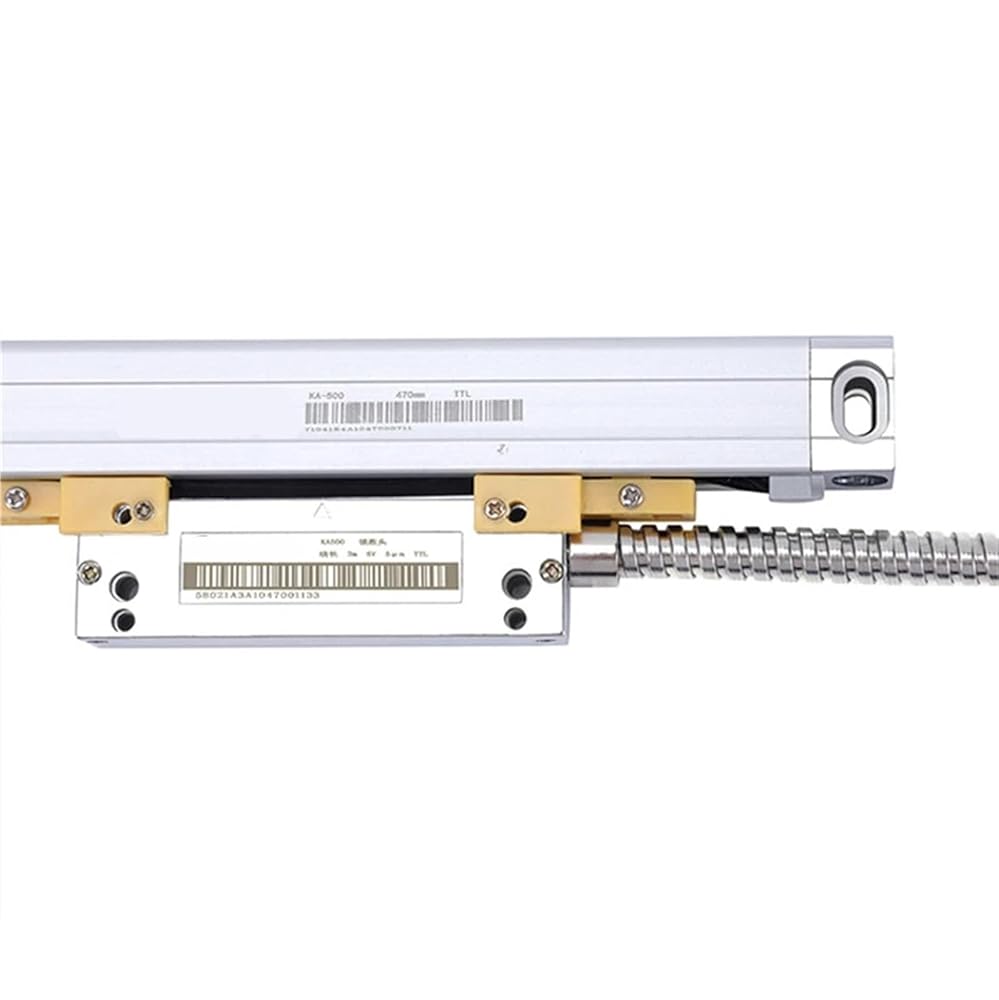

KA-500 70-520 Slim Linear Sensors, Thin Linear Encoder for DRO Readout Dispaly, 1pc
Model: KA500
Available measurement: 70mm, 120mm, 170mm, 220mm, 270mm, 320mm, 370mm, 420mm, 470mm, 520mm
Total length: available measurement +112mm
Size cross section size: 18mm x 20mm
Input voltage: 5VDC
Output signal: TTL
Resolution: 5um(0.005mm)
Cable length: 3 meters
Bar Pitch: 0.02mm
Power: +5V±5%, 80mA
Operating temperature:0-45 degree centigrade
Connetor: 9 Pins
Battery Included : No
High-concerned chemical : None
Electronic : No
Capacity : 70mm to 520mm
Power Supply : 5VDC
Model Number : KA-500
Type : Linear Scale
Resolution : 5um/0.005mm
Scale overall length : Travel+112mm
Installation holes distance : Travel+102mm
Output model : TTL
Interface Type : DB9
Cross Section Dimension : 18mmx20mm
Cable length : 3 meters
