مميزات خاصة

【High precision measurement】:With micrometer level resolution, small measurement errors, and the ability to accurately capture small displacement changes, it meets the stringent requirements of precision machining and high-precision positioning
【Wide range adaptation】:The range covers from a few millimeters to several meters, and can be flexibly selected according to different application scenarios, balancing the needs of short stroke precision measurement and long stroke displacement detection
【Multi scenario universality】:Widely used in fields such as CNC machine tools, automated production lines, 3C electronic manufacturing, automotive parts testing, surveying instruments, etc., it is the core component for achieving intelligent manufacturing and precise control
【Diversified signal output】:Supports multiple output modes and seamlessly integrates with mainstream industrial control equipment such as PLC, CNC systems, servo drives, etc
【Industrial grade durability】:Adopting a metal shell and sealed structure, it has the ability to resist vibration, impact, and electromagnetic interference

وصف

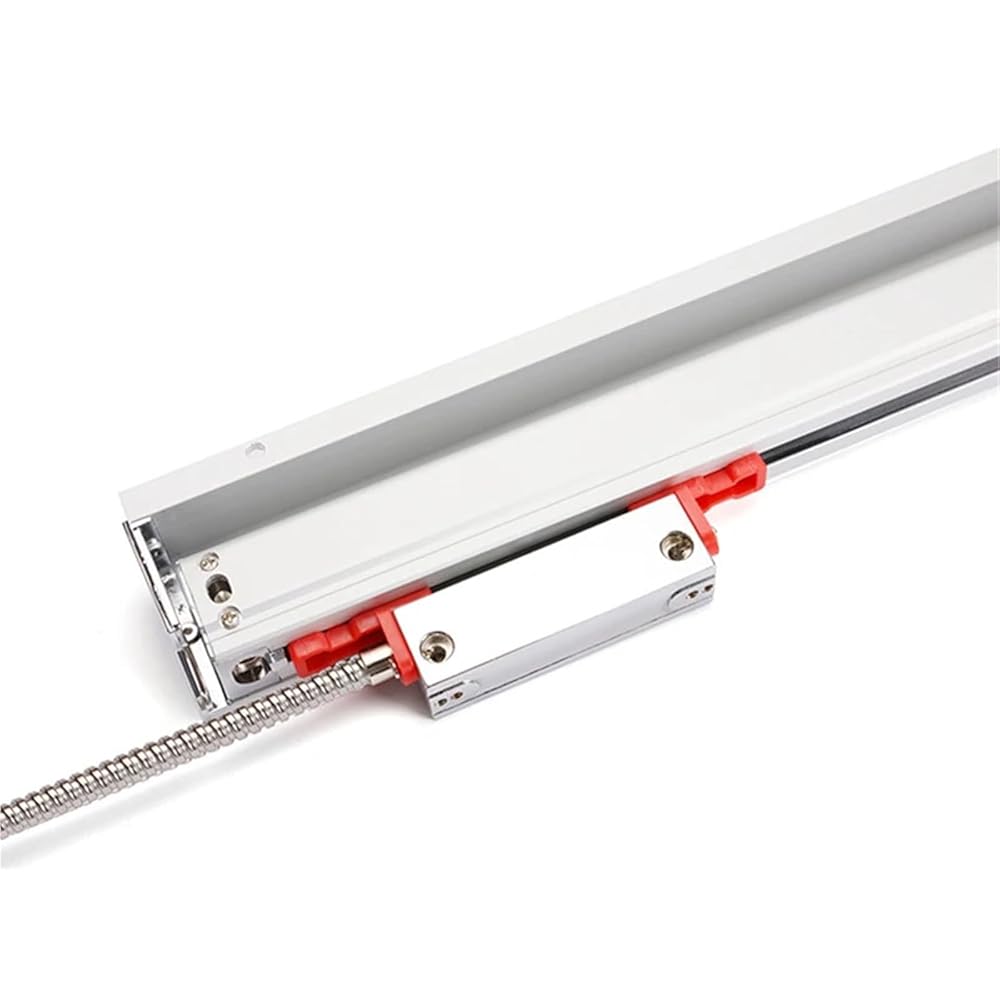

Linear Sensors, Optical Dimensions Scale Line Optical Rulers, 5U 5V TTL for Lathe Mill CNC Machine 70/670mm, 1pc
Product name: Linear scale
Travel (Available Measrus) Length: 70mm, 120mm, 170mm, 220mm, 270mm, 320mm, 370mm, 420mm, 470mm, 520mm, 570mm, 620mm, 670mm, 720mm, 770mm, 820mm, 870mm, 920mm, 970mm, 1020mm
Total Length: Travel (Available Measrus) Length+106mm
Accuracy: +/- 3, 5, 10 (20 degree, 680 F 1000mm)
Max of Measuring speed: 60m/min
Protection level: IP55
Resolution: 5um(0.005mm)
Output signal: TTL
Cable standard: 3 meters
Bar Pitch: 0.02mm
Power: +5V±5%, 80mA
Operating temperature:0-45 degree centigrade
Connetor: 9 Pins
Battery Included : No
High-concerned chemical : None
Electronic : No
Model Number : KA-300
Type : Mechanical Scale
Procut name : Linear scale
Input voltage : 5VDC
Output signal : TTL
Resolution : 0.005mm/5um
Cable length : 3 meters
Scale overall length : Travel+106mm
Installation holes distance : Travel+90mm
