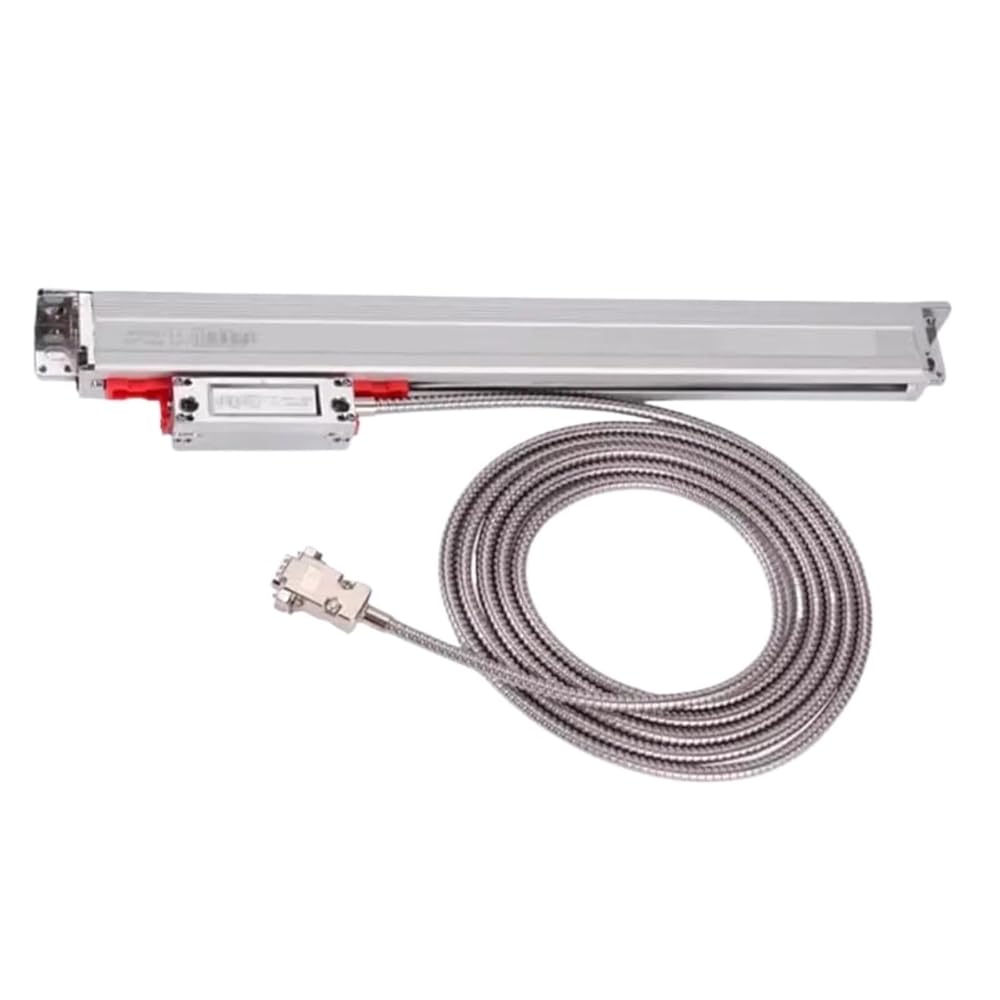

5um Linear Sensors, TTL KA-600 2100/3000mm DRO Glass Scale Optical Encoder Lathe, 1pc(KA600-2900mm-5um) in Kuwait

5um Linear Sensors, TTL KA-600 2100/3000mm DRO Glass Scale Optical Encoder Lathe, 1pc(KA600-2100mm-5um)

KWD 421.500
Brand
LOXNVUY
Category
Sensors
Weight
499 g
ColorKa600-2100mm-5um
– 1 +

Special Features

  • 【High precision measurement】:With micrometer level resolution, small measurement errors, and the ability to accurately capture small displacement changes, it meets the stringent requirements of precision machining and high-precision positioning
  • 【Wide range adaptation】:The range covers from a few millimeters to several meters, and can be flexibly selected according to different application scenarios, balancing the needs of short stroke precision measurement and long stroke displacement detection
  • 【Multi scenario universality】:Widely used in fields such as CNC machine tools, automated production lines, 3C electronic manufacturing, automotive parts testing, surveying instruments, etc., it is the core component for achieving intelligent manufacturing and precise control
  • 【Diversified signal output】:Supports multiple output modes and seamlessly integrates with mainstream industrial control equipment such as PLC, CNC systems, servo drives, etc
  • 【Industrial grade durability】:Adopting a metal shell and sealed structure, it has the ability to resist vibration, impact, and electromagnetic interference

Description

5um Linear Sensors, TTL KA-600 2100/3000mm DRO Linear Glass Scale Optical Encoder Lathe, 1pc
Product name: KA-600 Linear scale
Available Measrus Length: 2100mm,2200mm,2300mm,2400mm,2500mm,2600mm,2700mm,2800mm,2900mm,3000mm
Cross Section: 30mm X 43mm
Accuracy: +/- 3, 5, 10 (20 degree, 680 F 1000mm)
Max of Measuring speed: 60m/min
Protection level: IP55
Resolution: 5um(0.005mm)
Output signal: TTL AB Signal
Cable standard: 3 meters(longer option)
Bar Pitch: 0.02mm
Power: +5V±5%, 80mA
Operating temperature:0-45 degree centigrade
Connetor: 9 Pins
Battery Included : No
High-concerned chemical : None
Model Number : KA600
Product name : KA600 Linear Encoder
Input voltage : 5VDC
Output signal : TTL
Resolution : 5um(0.005mm)
Accuracy : +/- 3,5,10 (20 degree,680 F 1000mm
Max of Measuring speed : 60m/min
Reference Mark : included
Cross Section Dimension : 30mm X 43mm
Signal cable length : 3 meter
Rubber : Double rubber protection
Application : Milling lathe boring grinder machine etc
