Magnetic Linear Measurement System Grating Ruler Head Angle Sensor Encoder (M5302000mm 1) in Kuwait

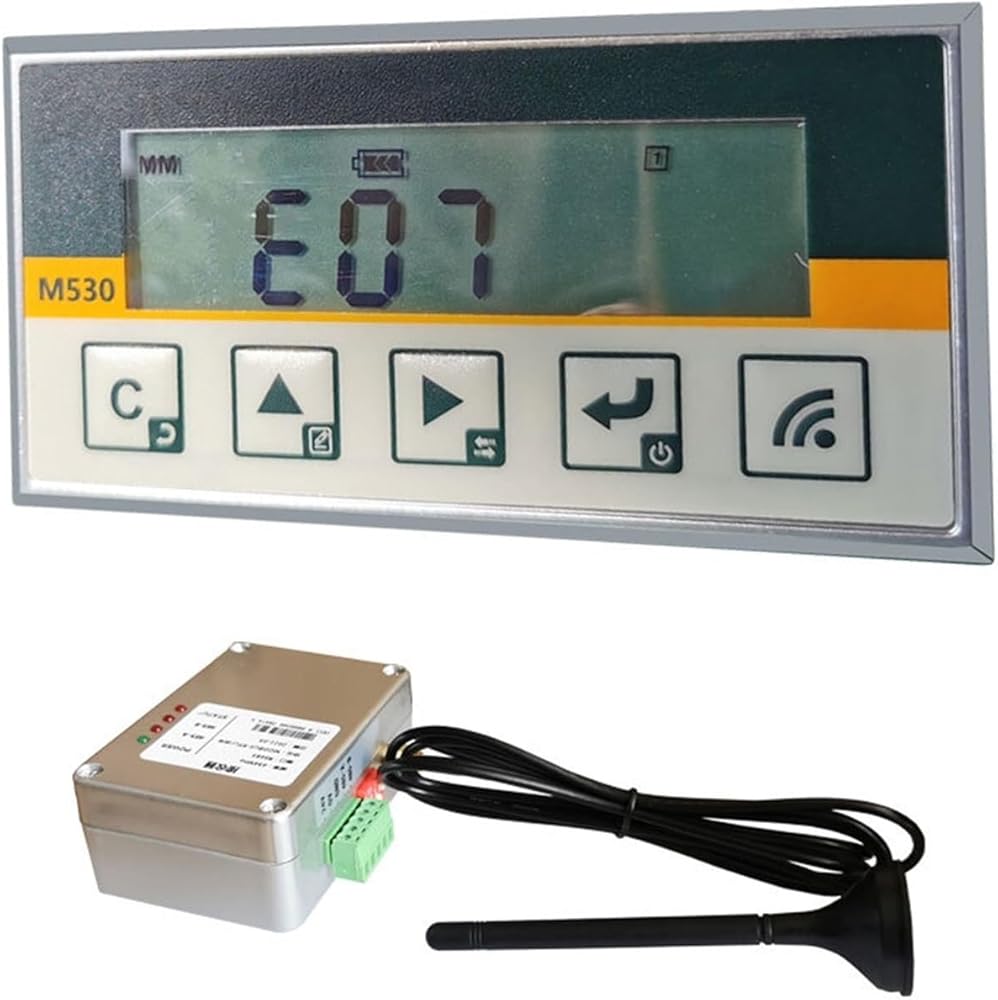

Magnetic Linear Measurement System Grating Ruler Head Angle Sensor Encoder (M5302000mm 1)

KWD 145
Brand
NUHSLF
Category
Sensors
ColorM5302000mm
Size1
– 1 +

Special Features

  • Compact and Embedded Design: Features an embedded suite shell structure with overall dimensions of 100 * 52mm, making it for space-constrained applications
  • High Precision and Versatile Measurement: Provides a maximum sensor/scale reading distance of 2.5mm (1.3-mm recommended) and a wide range of -1999999 to 1999999, ensuring accurate and versatile measurements
  • Low Power Consumption: Operates with a low current consumption of ≤700μA, ensuring energy efficiency. It also supports an external input of 24V, offering flexibility in power sources
  • Robust and Customizable: The sensor length is customizable from 0.15 to 6m (default: 1M), providing flexibility for different applications. The IP40 protection class ensures durability in various environments
  • Wireless Communication Option: Supports optional wireless transmission operation and RS485 communication function, enabling robust and reliable data transmission for enhanced connectivity

Description

Mechanical Parameters
Shell structure: Embedded suite
Sensor/scale reading distance: Max. 2.5mm, 1.3-mm recommended
Overall dimensions: 100 * 52mm
Opening size: Matching scale 90 * 42mm MS50
Sensor length: 0.15... 6m (Default: 1M)
Weight: 240g (1M sensor length)
Electrical Parameters
Working
