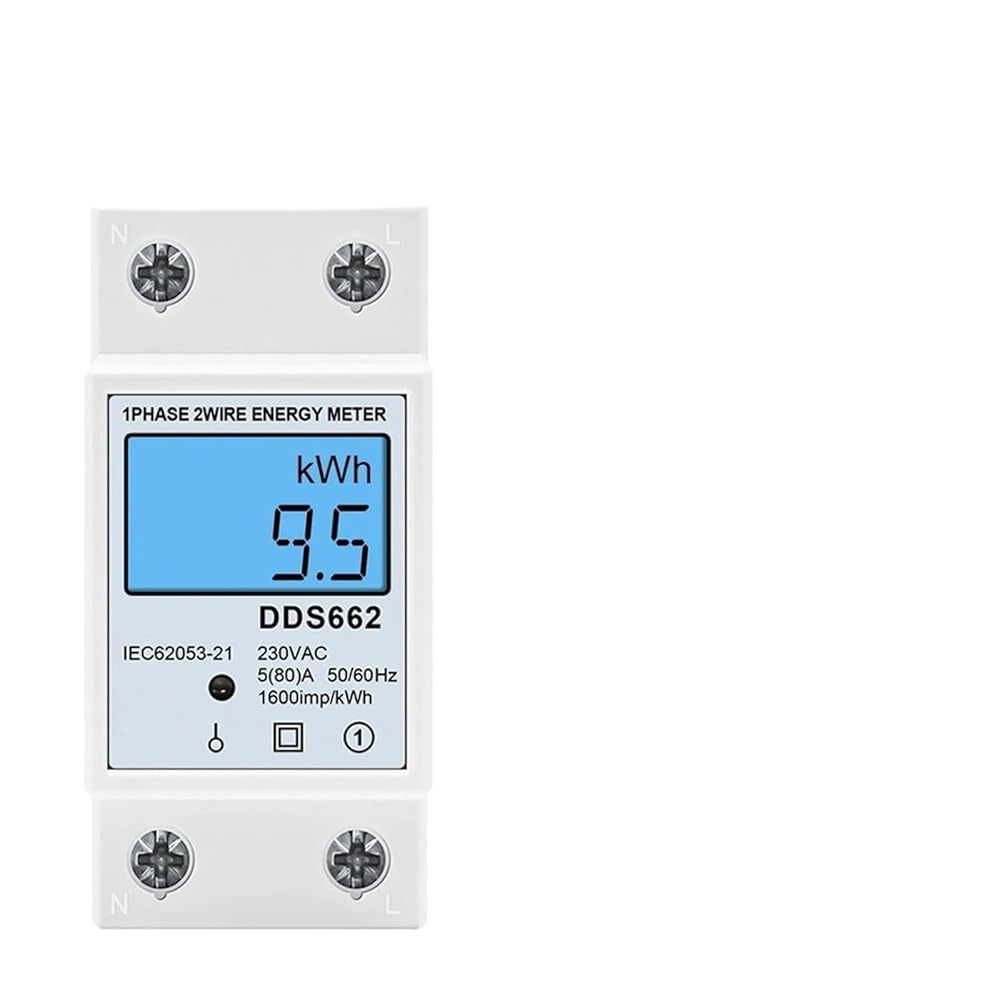

Features:
DDS663 DDS662 DDS662-LAC230V 50Hz/60Hz AC110V 50Hz/60Hz
DDS667 DDS668AC230V/50Hz AC230V/60Hz AC110V/60Hz
Maximum Current:DDS663 60A DDS662/667/668 80A
Pulse : DDS667/668 1000imp/kWh DDS663/662:1600imp/kWh
Pulse LED indicates working of meter.
35MM Din Rail Installation
Wiring Method: top input and bottom output or top output bottom input
The meter is multifunctional display total Energy kWh, temporary Energy kWh, real Voltage, real Current, real Power by manual pressing.
Features:
Suitable for DDS663, DDS662 DDS662-L:
Withoutbutton and Withoutreset function
NOTE:This Temporary kWh is not available RESET to be Zero . The Total kWh can not be Reset.
Features:
Suitable for DDS667, DDS668:
1,With button and With reset function
2,Hold the button for 6 seconds to Reset the temporary kWh
NOTE: This Temporary kWh is available RESET to be Zero . The Total kWh can not be Reset.
Features:
Suitable for DDS668:
With total and temporary electricity consumption
AlwaysDisplay twovalues simultaneously,oneof whichinevitablydisplayspower.
Dimensions : 78*65*35mm
Operating Temperature : -10 to 50C
Output Voltage : AC 220V
Accuracy Class : ±1%
Measuring Energy Range : 99999.9
Phase : single phase
Model Number : DDS662
Max Operating Current : 50A - 79A
Rated Voltage : 220V
Power Supply : AC
Display Type : LCD
DIY Supplies : Electrical
Origin : Mainland China
Certification : CE
Power Source : AC
Display 1 : Total Energy kWh
Display 2 : Temporary kWh
Display 3 : Voltage
Display 4 : Current
Model 1 : DDS667
Model 2 : DDS668
Operating Voltage 1 : AC220V/230V
Operating Voltage 2 : AC110V
