Features:
Small size, light weight, good reliability and easy installation.
35mm standard DIN-rail mounting in accordance with standard DIN EN50022.
Six widths (12.5mm modulus) in accordance with DIN43880.
Standard configuration 5+1(99999.1KWh) digital display.
The standard configuration pulse output is passive (polar) and the pulse output can be selected as passive (non-polar). It is easy to contact with various AMR systems and conforms to the standards IEC 62053-31 and DIN43864.
Double color LED indicates the power status (green) and the energy pulse signal (red).
One-way measurement of single-phase two - wire active energy consumption . This has nothing to do with the direction of the load current. Comply with IEC 62053-21.

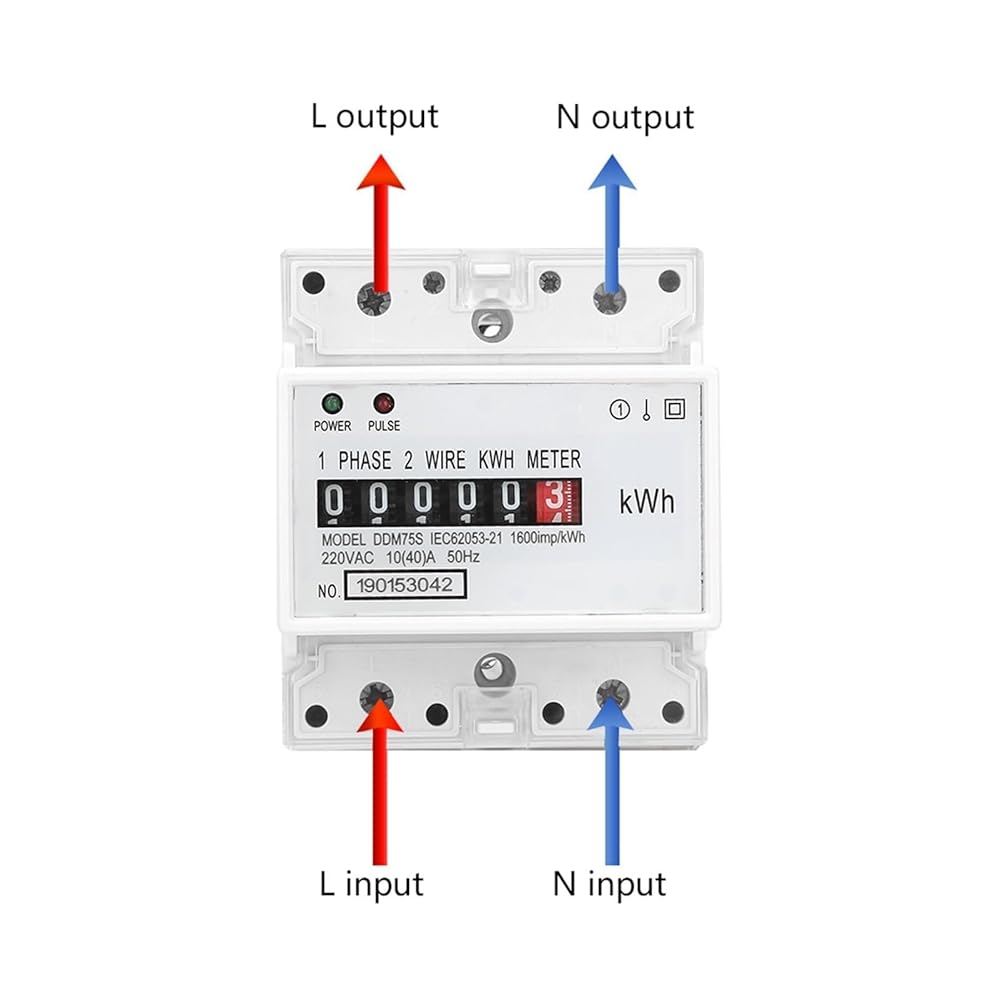

Direct connection operation, two wiring methods. Standard configuration S type wiring, U type wiring can be selected.
Extend the terminal cover to protect the use of the security.
Specification:

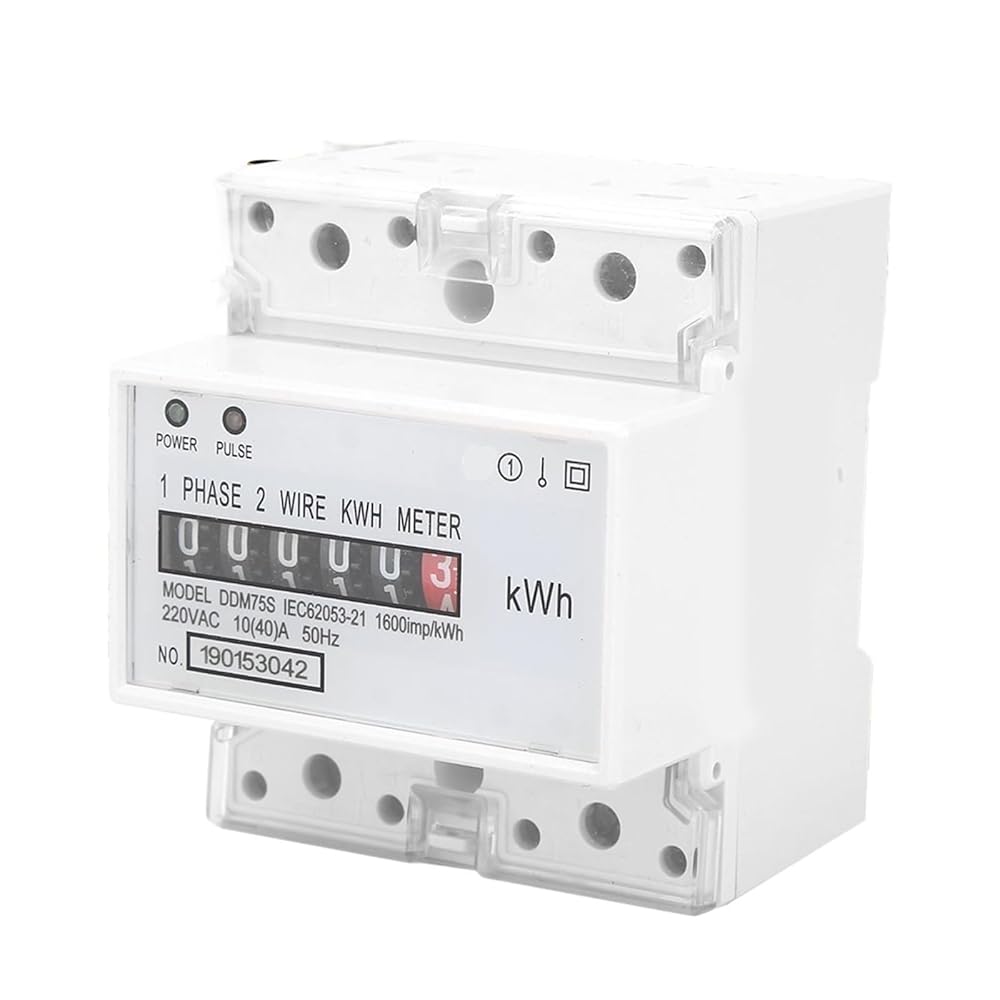

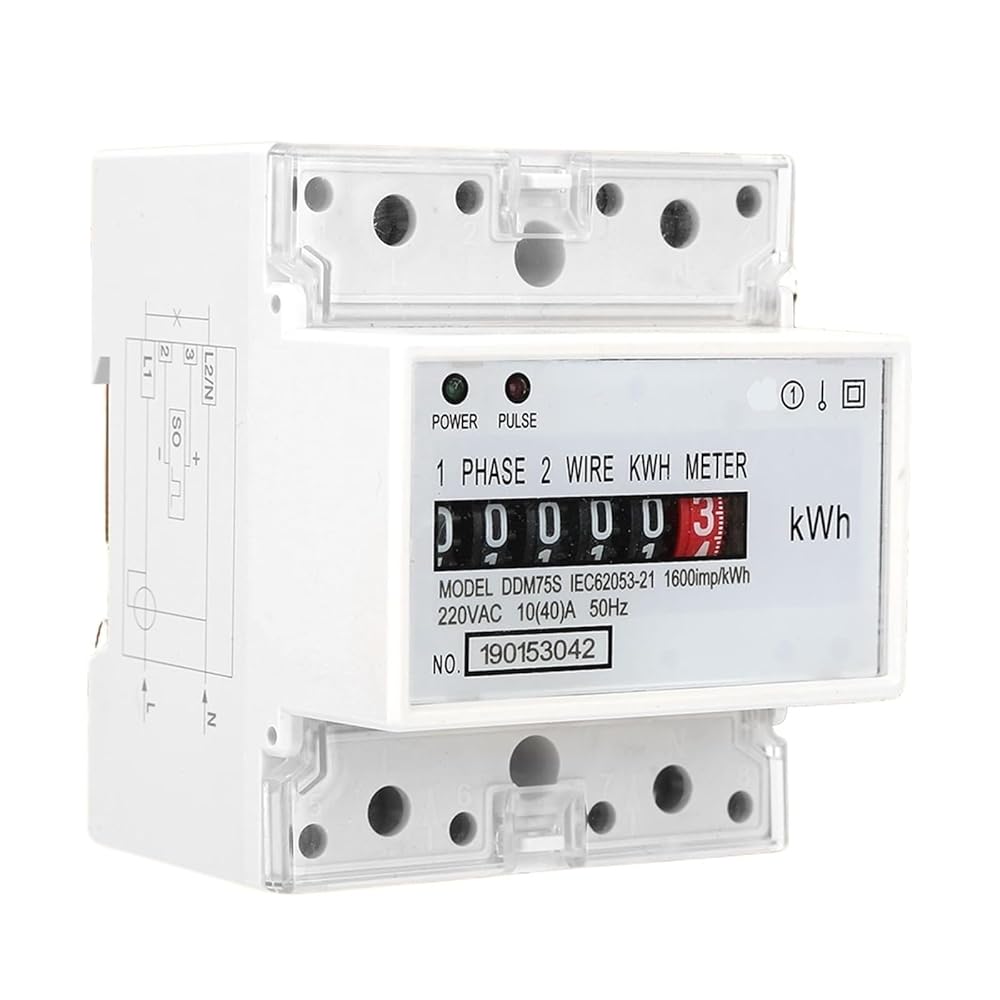

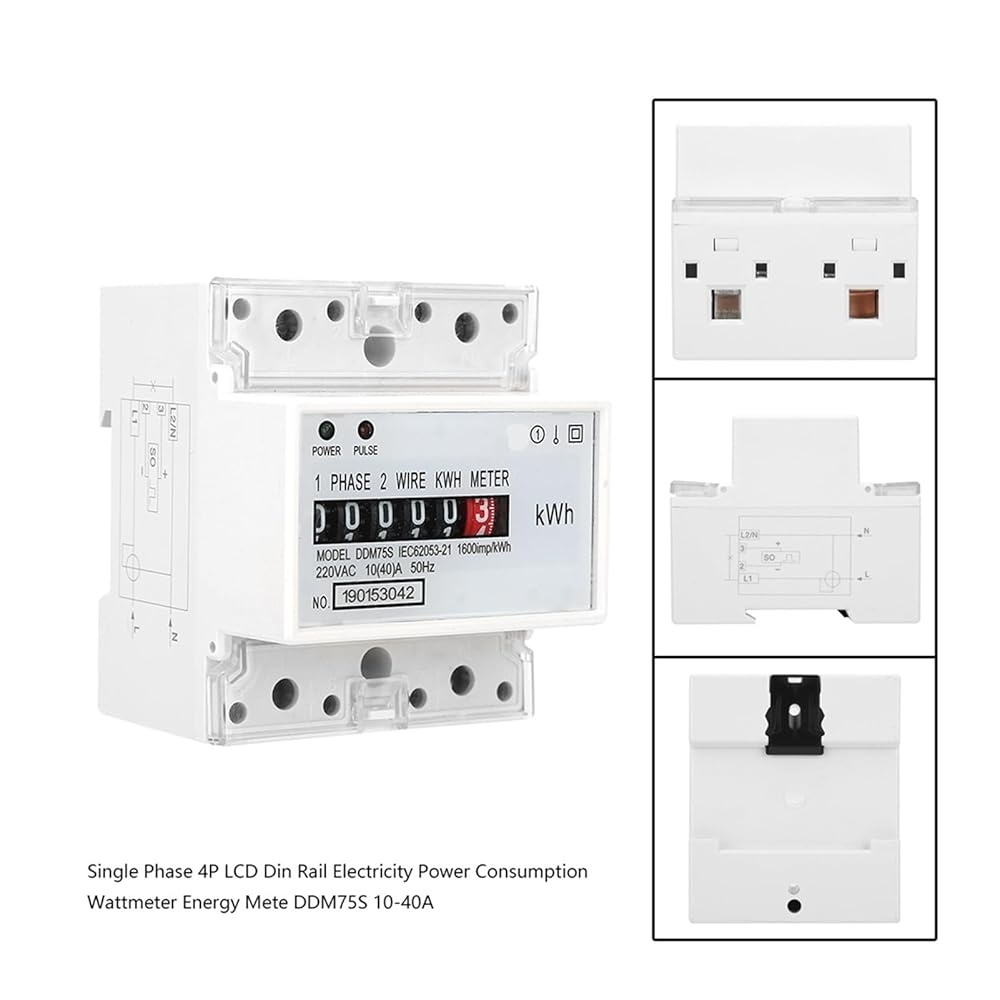

Item Type: Din Rail Energy Meter
Model: DDM75S
Voltage Specification: 220V/230V 50/60Hz
Current Specifications: 10(40)A
Insulation performance: AC voltage 4KV, 1 minute, 1.2/50us waveform impulse voltage 6KV

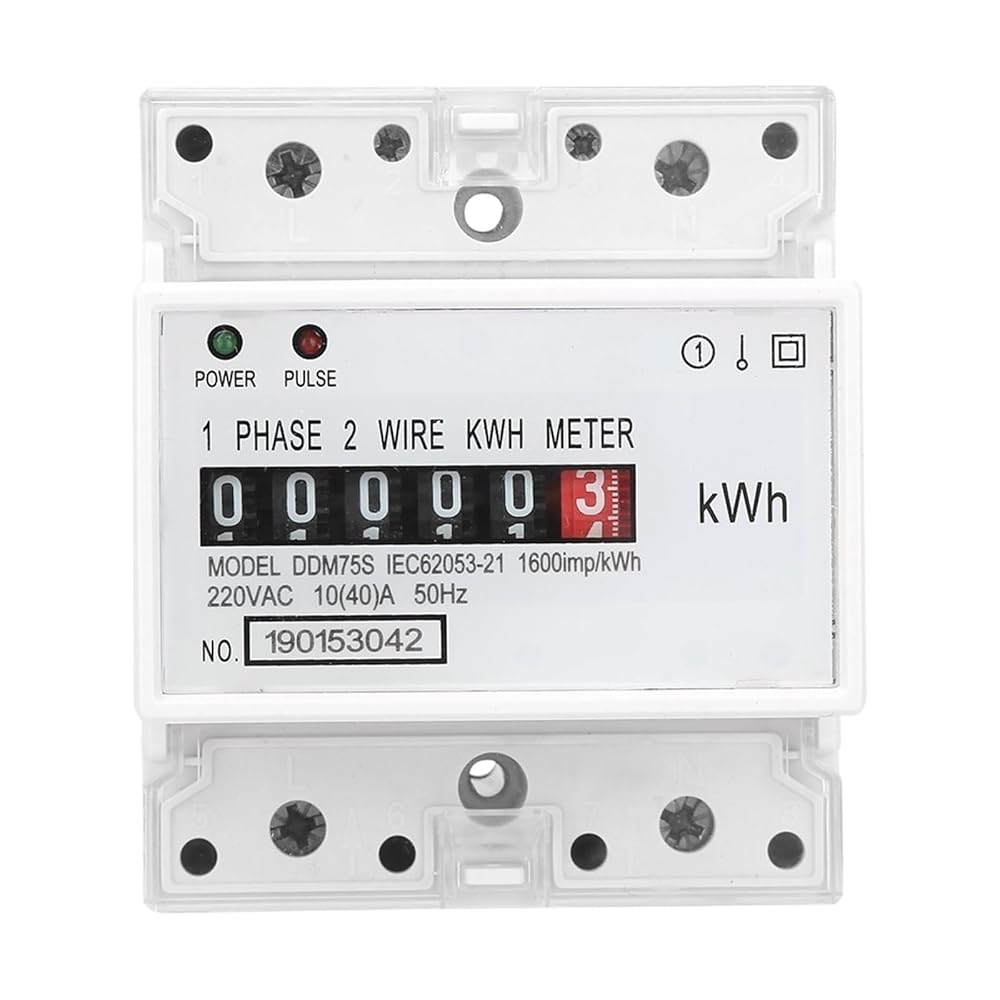

Display mode: (5+1) digital display
Installation method: rail installation
Weight: 246 g / 8.7 oz(approx.)
Package List:
1 * Energy Meter
DIY Supplies : Electrical
Origin : Mainland China
