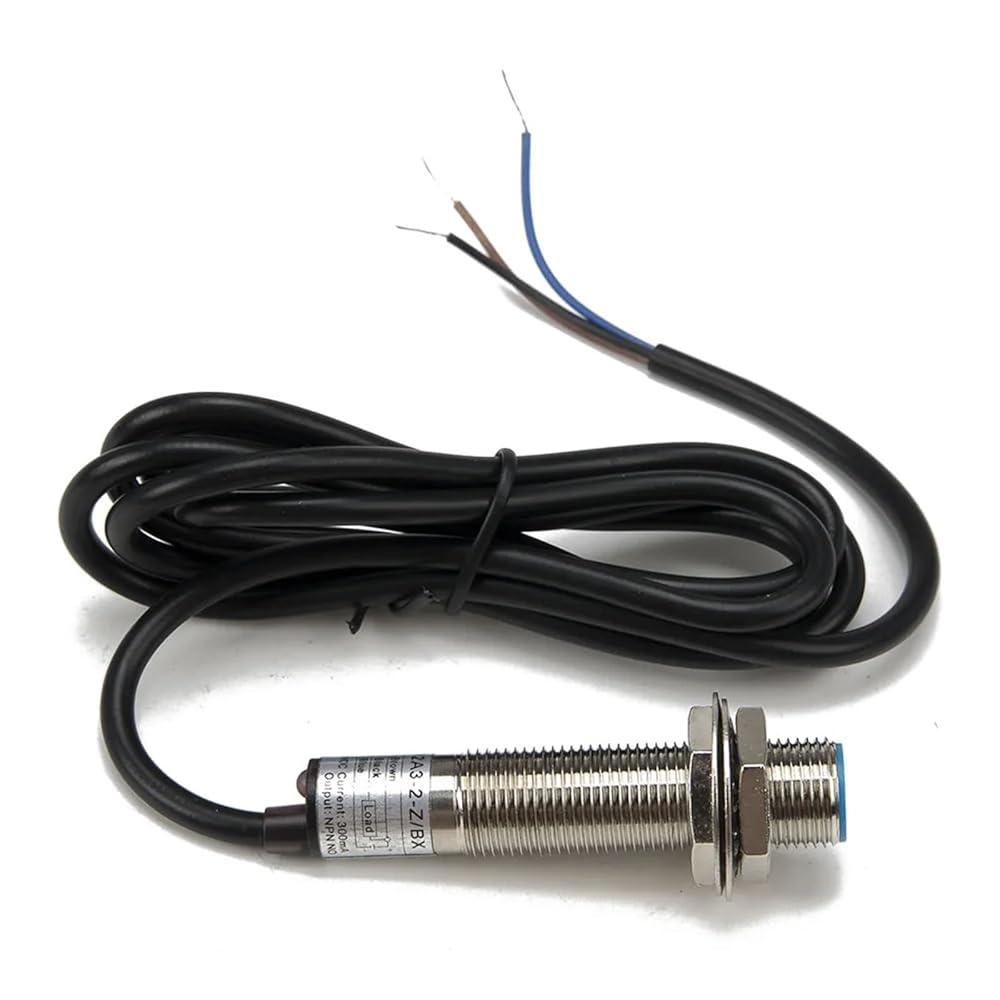

Cylinder Inductive Proximity Sensor Switch, M12 2mm Sensing DC 6-36V NPN PNP NO NC LJ12A3-2-Z/BX by AX AY, 1pc(AY PNP NC) in Kuwait

Cylinder Inductive Proximity Sensor Switch, M12 2mm Sensing DC 6-36V NPN PNP NO NC LJ12A3-2-Z/BX by AX AY, 1pc(AX NPN NC)

KWD 10
Brand
LOXNVUY
Weight
202 g
ColorAX NPN NC
– 1 +

Special Features

  • 【Non contact sensing, durable and long-lasting】;Multiple technologies including inductance, capacitance, and optoelectronics are available, eliminating the need for contact with the measured object, avoiding collision and wear, and extending the service life of equipment and sensors
  • 【High sensitivity anti-interference, zero misjudgment】:Adjustable sensing distance, built-in anti electromagnetic interference chip, fearless of dust and oil stains, precise detection without triggering false alarms
  • 【Multi specification full compatibility, full scene coverage】:Micro/standard/long-distance options available, compatible with DC 2/3/4 wires and AC 2 wires, universal for assembly line/limit/sorting
  • 【high protection, able to withstand harsh working conditions】:Stainless steel/engineering plastic shell, with a wide temperature tolerance of -25 ℃~70 ℃, dustproof, waterproof, and shockproof, suitable for use in both workshop and outdoor environments
  • 【Triple protection+easy installation, worry free and effortless】:Short circuit/overload/reverse connection protection to prevent burning out; Embedded/non embedded/bracket installation, compatible with M8-M30 threads, single person quick deployment

Description

Cylinder Inductive Proximity Sensor Switch, M12 2mm Sensing DC 6-36V NPN PNP NO NC LJ12A3-2-Z/BX BY AX AY, 1pc
Model number:LJ12A3-2 series
External dimensions:M12x50
Installation type:Shielded
Detection distance:2mm
Setting distance:0-1.6 mm
Supply voltage:6-36Vdc; 90-250Vac, 50/60Hz
Output current
DC type: 300mA max; AC Type: 400mA
Standard detected object:Mild steel (12x12x1mm)
Sensing object:Magnetic metals (if it is not magnetic metals, the sensing distance would decrease)
Response frequency:500Hz
Matched mounting bracket:M12 mounting bracket
Output indication:Red LED
Short-circuit protection:No
Reverse connection protection:Yes
Insulation resistance:50M min (between charging part and housing)
Dielectric strength:1000Vac, 1min (between charging part and housing)
Operating temperature:-25 to 70 °C (13 to 158 °F)
Cable length:1.2m, PVC cable
Material
Case: Brass-nickel plated; Sensing surface: ABS
Model Number : LJ12A3-2-Z/BX LJ12A3-2-Z/AX LJ12A3-2-Z/BY LJ12A3-2-Z/AY
