مميزات خاصة

【Non contact sensing, durable and long-lasting】;Multiple technologies including inductance, capacitance, and optoelectronics are available, eliminating the need for contact with the measured object, avoiding collision and wear, and extending the service life of equipment and sensors
【High sensitivity anti-interference, zero misjudgment】:Adjustable sensing distance, built-in anti electromagnetic interference chip, fearless of dust and oil stains, precise detection without triggering false alarms
【Multi specification full compatibility, full scene coverage】:Micro/standard/long-distance options available, compatible with DC 2/3/4 wires and AC 2 wires, universal for assembly line/limit/sorting
【high protection, able to withstand harsh working conditions】:Stainless steel/engineering plastic shell, with a wide temperature tolerance of -25 ℃~70 ℃, dustproof, waterproof, and shockproof, suitable for use in both workshop and outdoor environments
【Triple protection+easy installation, worry free and effortless】:Short circuit/overload/reverse connection protection to prevent burning out; Embedded/non embedded/bracket installation, compatible with M8-M30 threads, single person quick deployment

وصف

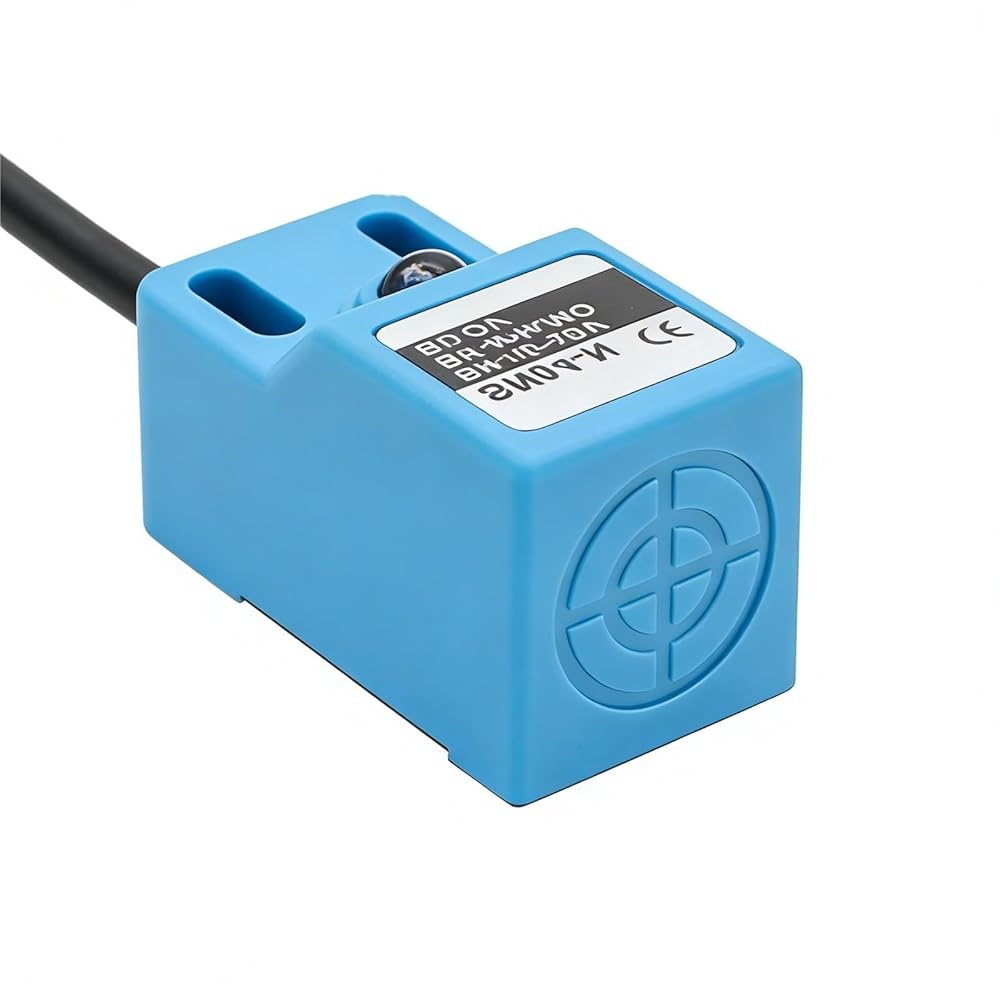

Inductive Proximity Switch SN04-N1 SN04-P1 SN04-D1, Sensoring Distance 4mm DC 6-36VDC NPN PNP NO NC, 1pc
High-concerned chemical : None
Current : 300 mA
Material : Plastic
Switch Type : Proximity Switch
Model Number : SN04 series proximity switch
Features : Inductive type proximity sensor
Item Type : SWITCHES
Output voltage dropDC/AC : DC less than 3V, AC less than 10V
Consumption current : DC less than 15mA, AC less than 10mA
Standard detected object : 18*18*1(A3 iron)
Repeated precision : 0.05
DC/AC Response frequency : 200Hz / 20Hz
Working environment temperature : -25C to 75C
Insulation resistance : more than 50Mohm
Shell material : ABS Resin
Protection grade : IEC standard IP67
Color option : Blue or Green
