product name:

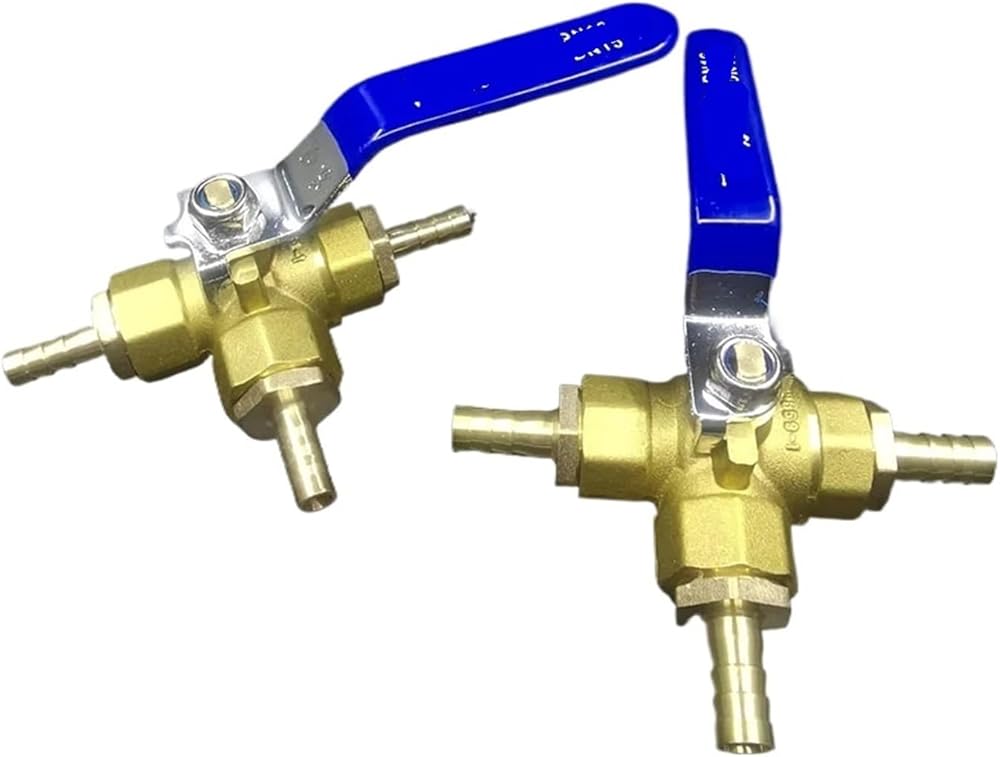

T-type three-way ball valve
L type three way ball valve
Body material: brass
Handle material: iron
Operating temperature: -20°C to 100°C
Nominal pressure: PN16
Working medium: water, air, oil and gas
Packing list: 1 piece* ball valve + 3 pieces* barb
Working principle of T-type three-way ball valve, the handle rotates 180°.
When the handle points to A, AB opens and C closes.
When the handle points to B, ABC opens.
When the handle points to C, BC opens and A closes.
Working principle of L-type three-way ball valve, the handle rotates 90°.
Figure 1: When the handle points to C, AB is open and C is closed.
Figure 2: When the handle points to 45°, ABC opens.
Figure 3: When the handle is pointed backwards, BC is open and A is closed.
