Filter Valves
High Flow
Long life cycle
NC and NO actuators with modular accessory program up to control head
Can provide flow direction below or above the valve seat
Simple conversion of circuit functions

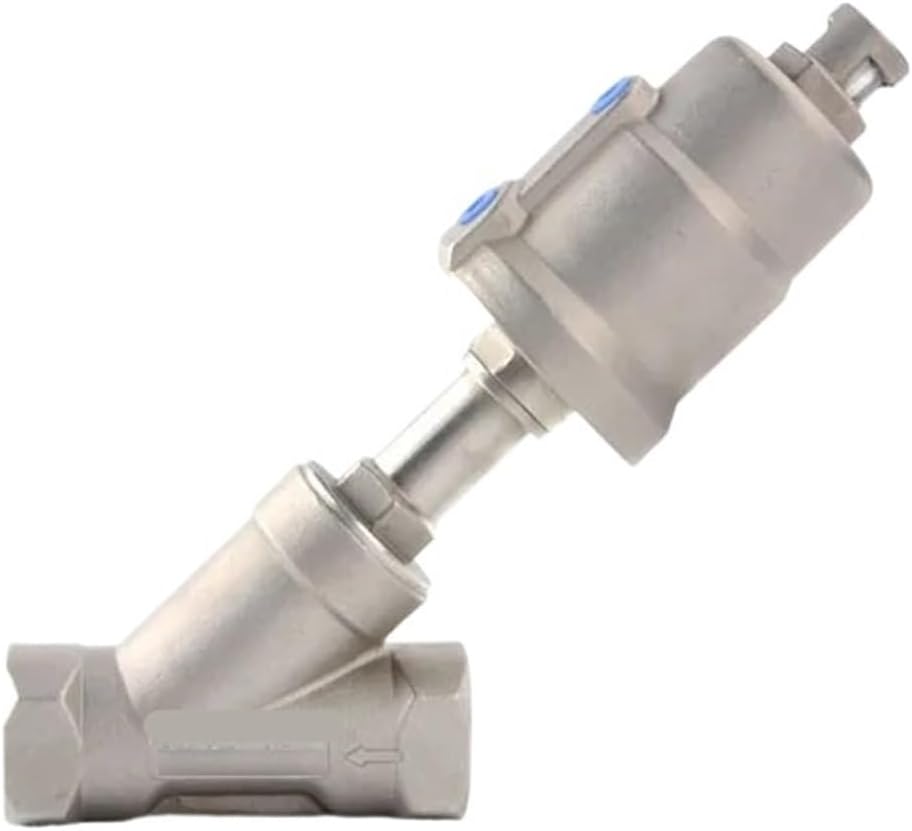

The JDF100 series plunger angle seat valve is driven by a piston actuator. The eight single-acting or double-acting actuators are made of three different materials and are suitable for different operating temperatures.
2/2-way stainless steel valve with large flow V-shaped seal ensures reliable and effective sealing. Maintenance-free and compatible with a variety of accessories, it can easily achieve direction indication, travel limit or manual switching.
Control function: normally closed, normally open
Action type: single action, double action
Flow direction: upstream, downstream
Water Hammer: Yes, No
application:
Suitable for compressible media with lower pressure (such as gas, steam) and liquids
Used for water hammer resistant pipes to withstand a certain pressure difference
Reliable performance, resistant to pressure differences; the valve automatically closes in emergency situations.
For pipes that require better water hammer resistance, they must withstand larger pressure differences.
Suitable for pipelines with normally open valves. Double acting, always open when silencer is closed
Suitable for pipelines with normally open valves, double-acting anti-water hammer, and normally open valves when the muffler falls off
Model specifications
Normally closed: P010NC, P015NC, P020NC, P025NC, P032NC, P040NC, P050NC, P065NC, P080NC
Normally open: P010NO, P015CO, P020NO, P025NO, P032NO, P040NO, P050NO, P065NO, P080NO
Body/actuator material: S.S304 316/PA
Mode of operation: plunger
Environment and fluids: air, water, oil. Steam (below 50CTS)
Port size: G3/8, G1/2, G3/4, G 1, G1-1/4, G1-1/2, G 2, G2 1/2, G 3
Nominal diameter (mm): 13, 18, 24, 31, 35, 45, 61, 80
Kv (cubic meters/hour): 3.7, 4.2, 9, 19, 33, 42, 59, 90, 135
Model: Specifications:
Normally closed: S010NC, S015NC, S020NC, S025NC, S032NC, S040NC, S050NC, S065NC, S080NC
Normally open: S010NO, S015NO, S020NO, S025NO, S032NO, S040NO, S050NO, S065NO, S080NO
Valve body/actuator material: S.S304, 316/PA
Seat seal: PTFE/FPM
Stem seal: PTFE/FPM
Piston seal: PTFE/FPM/NBR
Medium temperature
PTFE: -10~200℃
FPM: -10~150℃
Installation: SAIC/SAIC
