Parameter
Power: 4KW
Voltage: 220V three-phase
Frequency: 60Hz
Speed: 3400r/min
Flow range: 0-4T/H

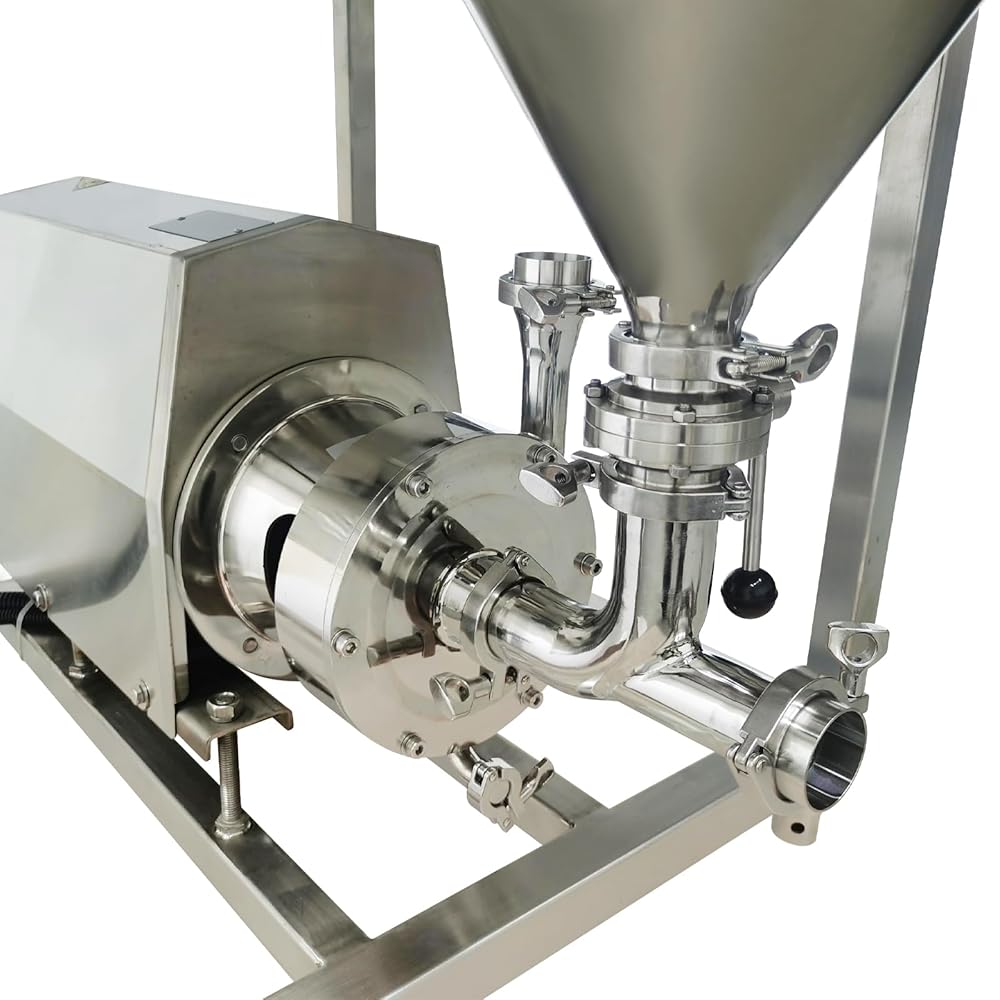

Inlet: 51mm (2in)
Outlet: 51mm (2in)
Material: 304 stainless steel

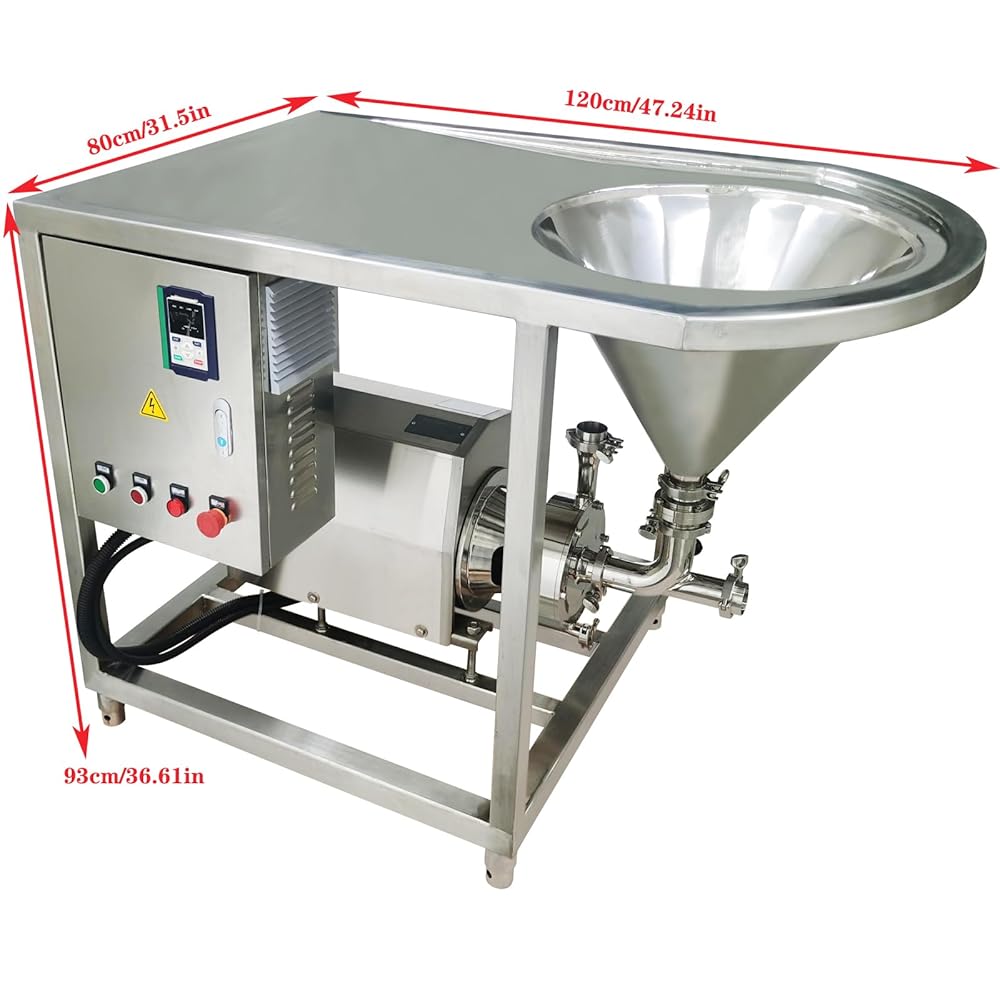

Machine size: 120x80x93cm (47.24x31.5x36.61in)
Net weight: About 140kg (308.65LBS)
Shipping Weight: 408LB
Outer Packaging Size: 51.18*37.01*43.31in

Item Included(022813)

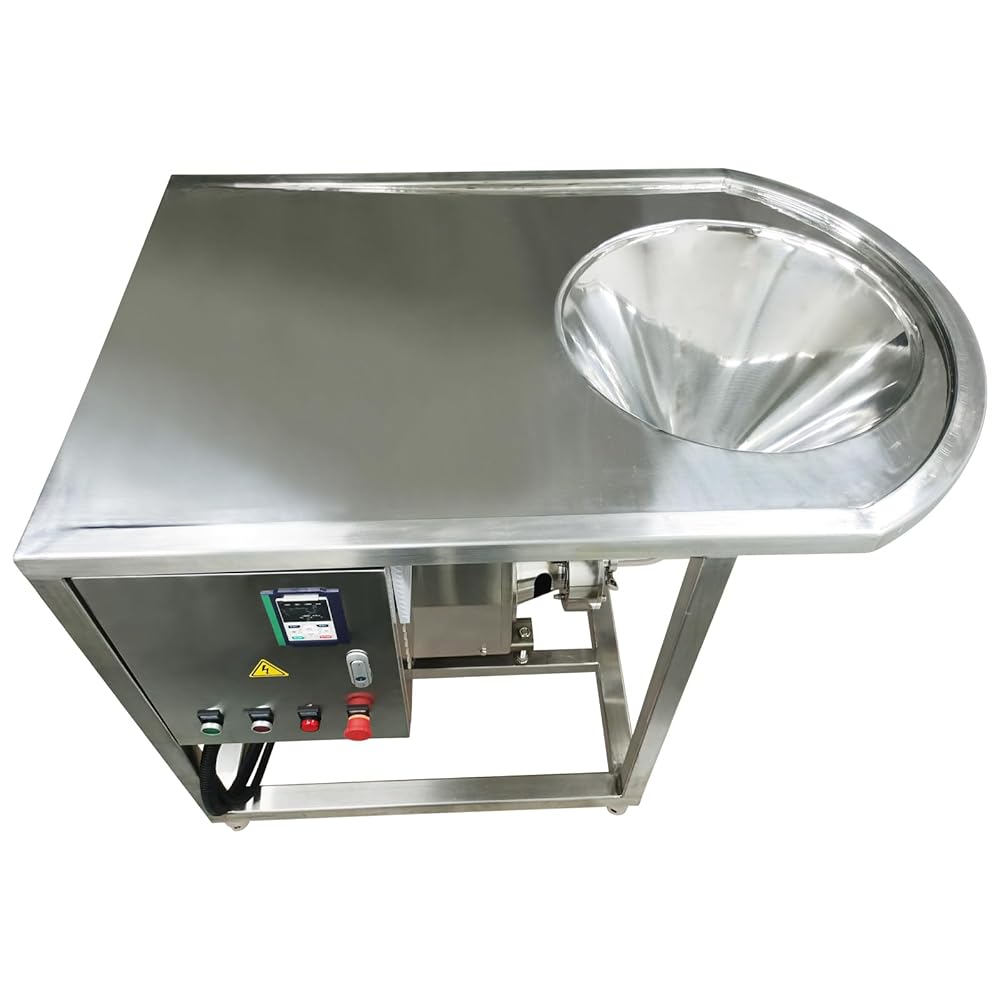

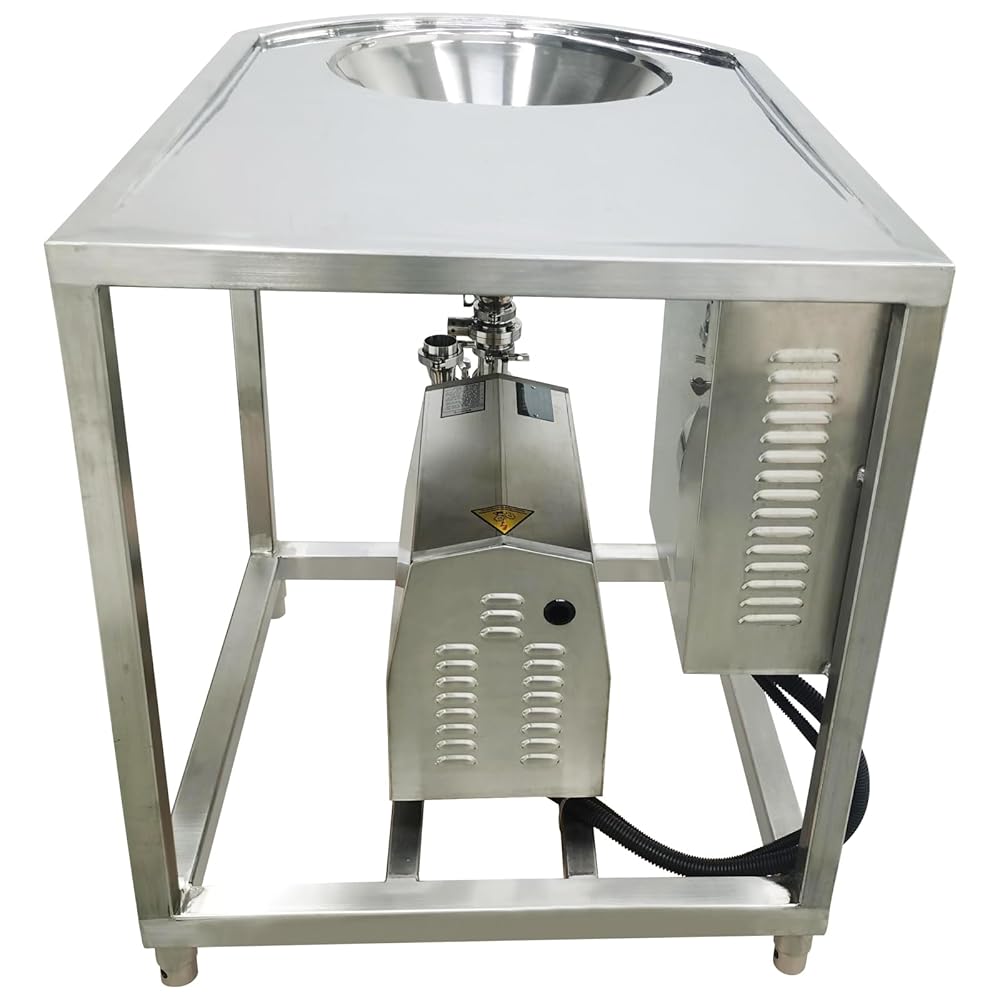

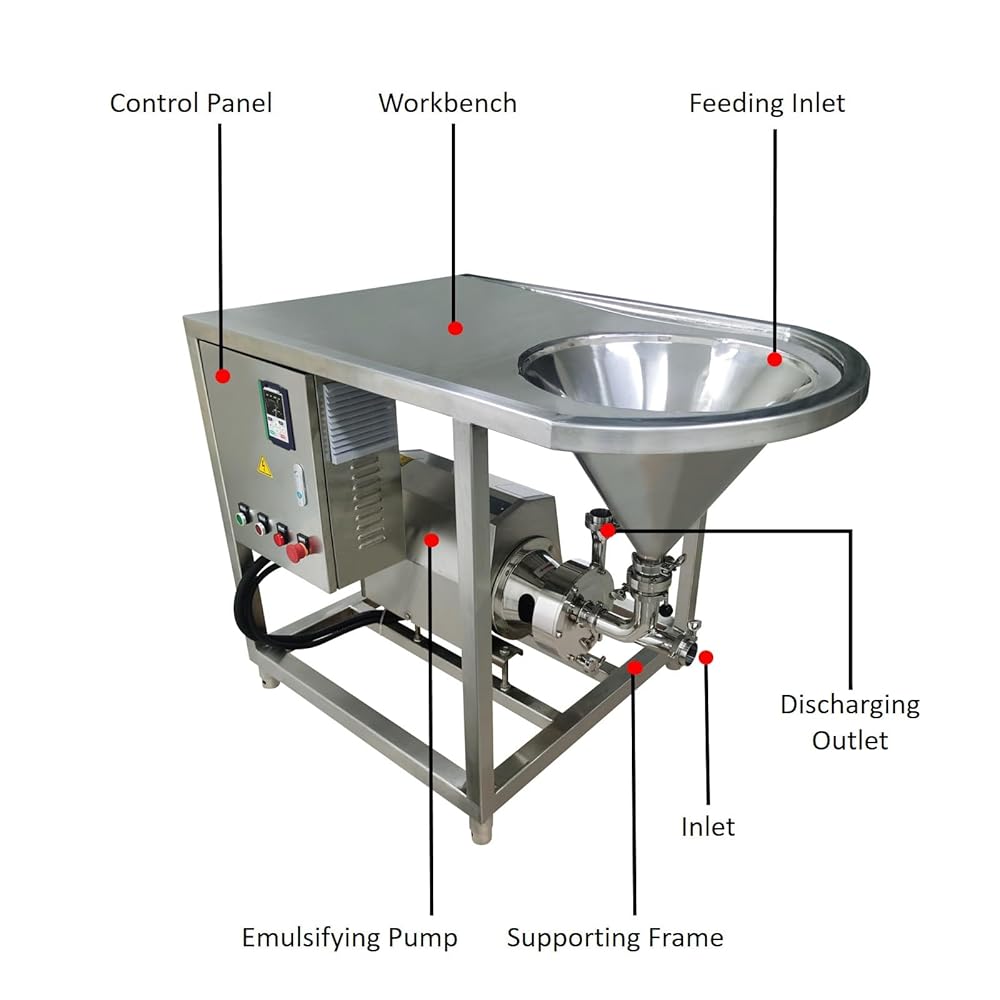

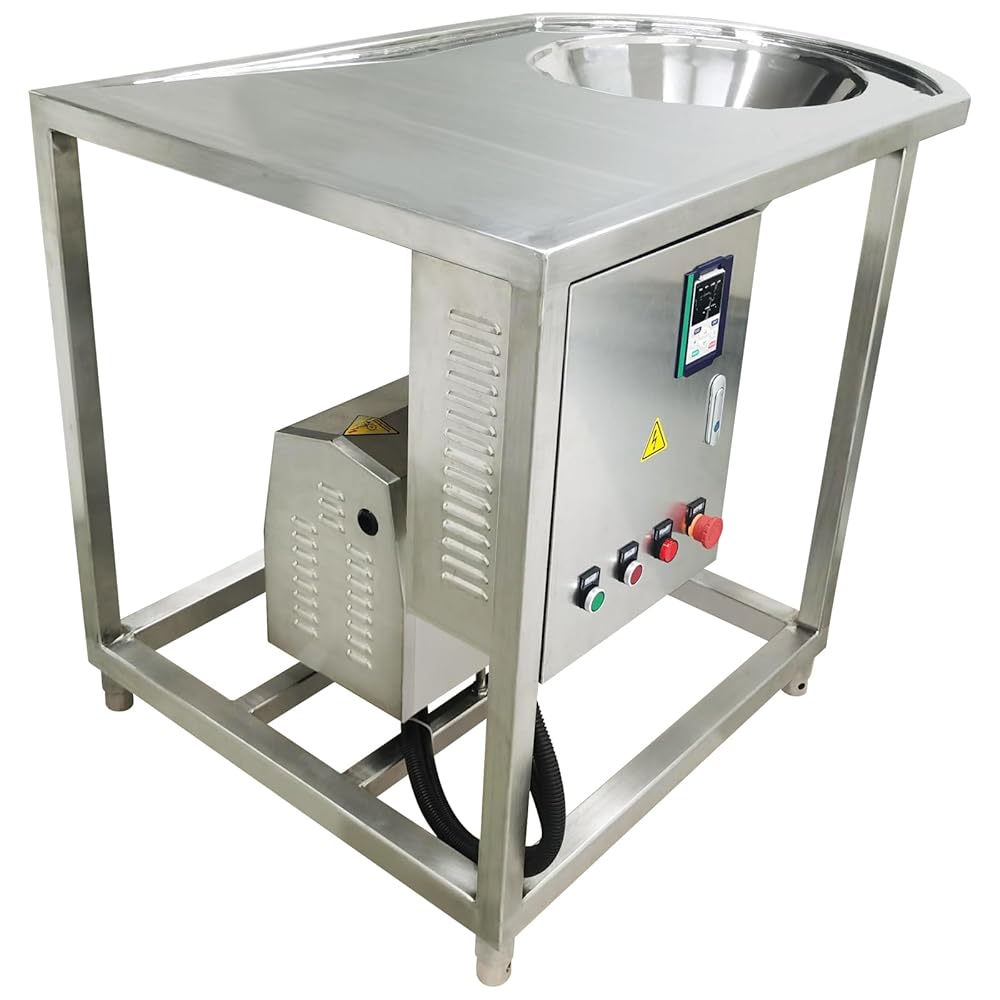

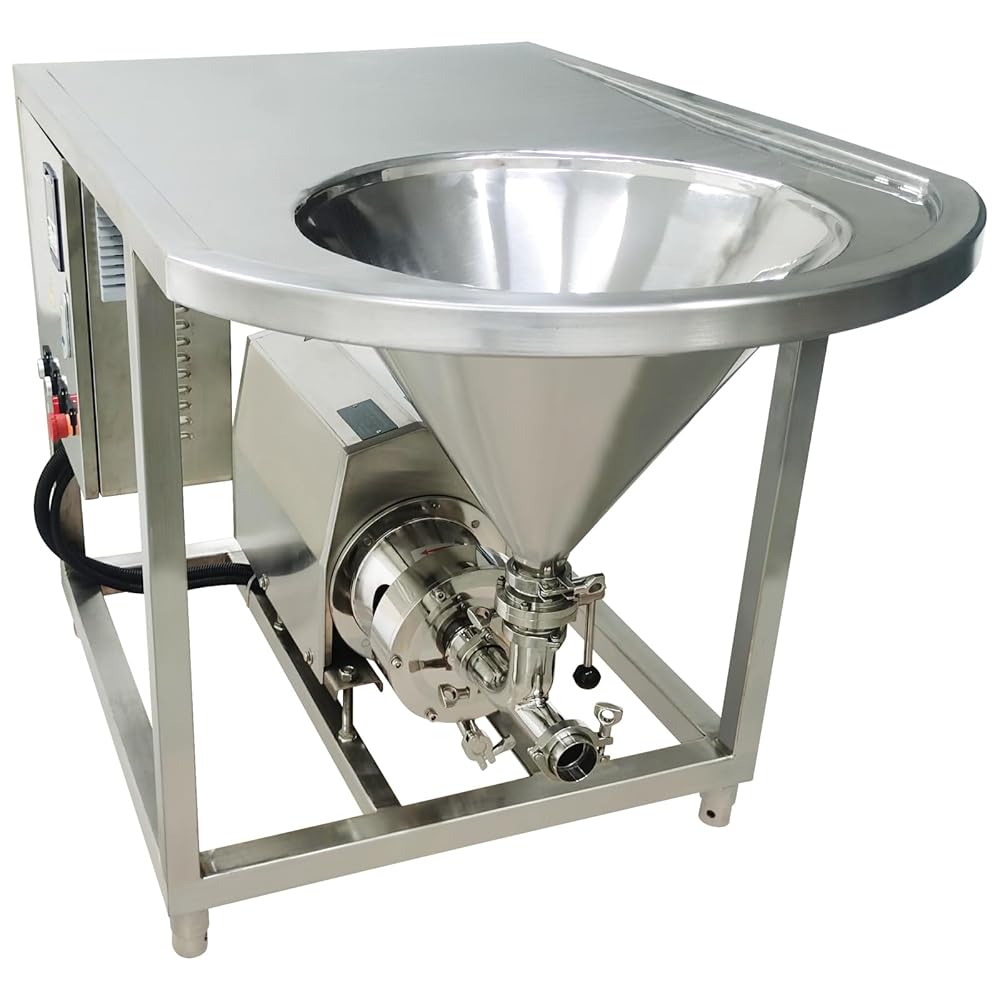

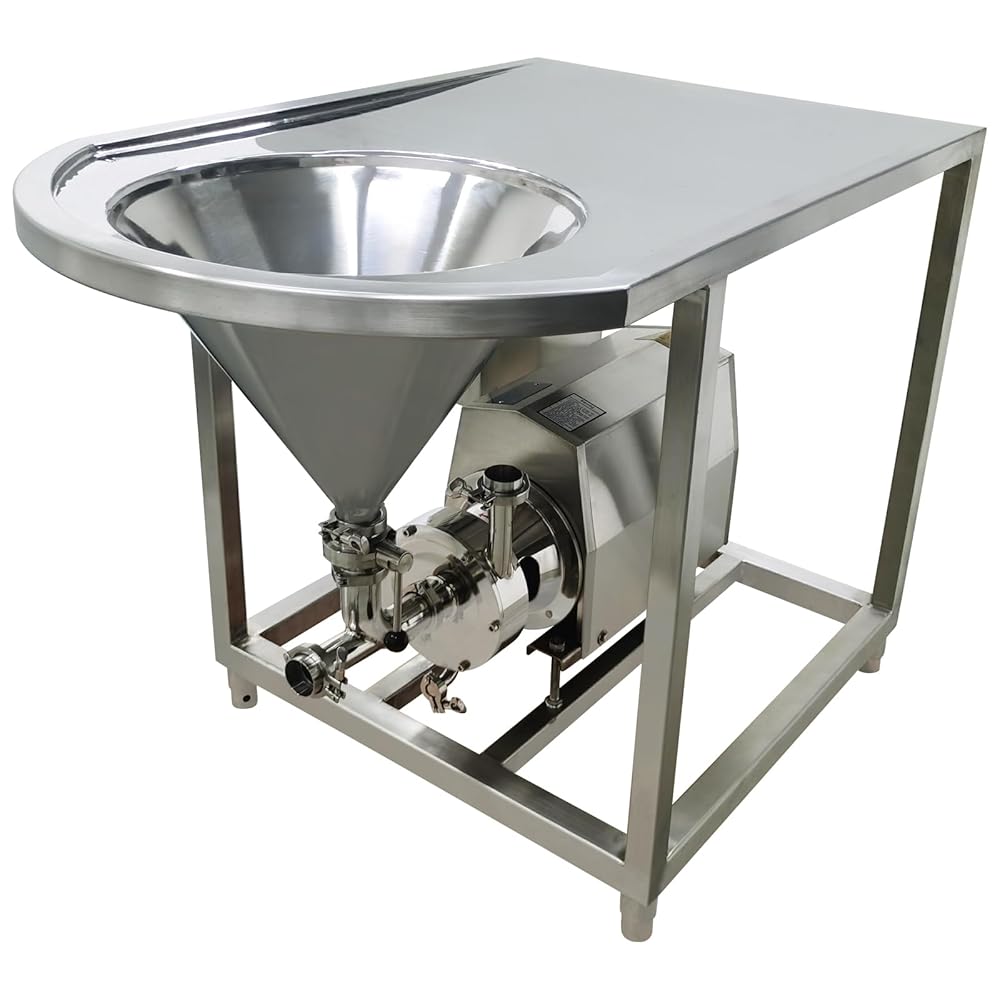

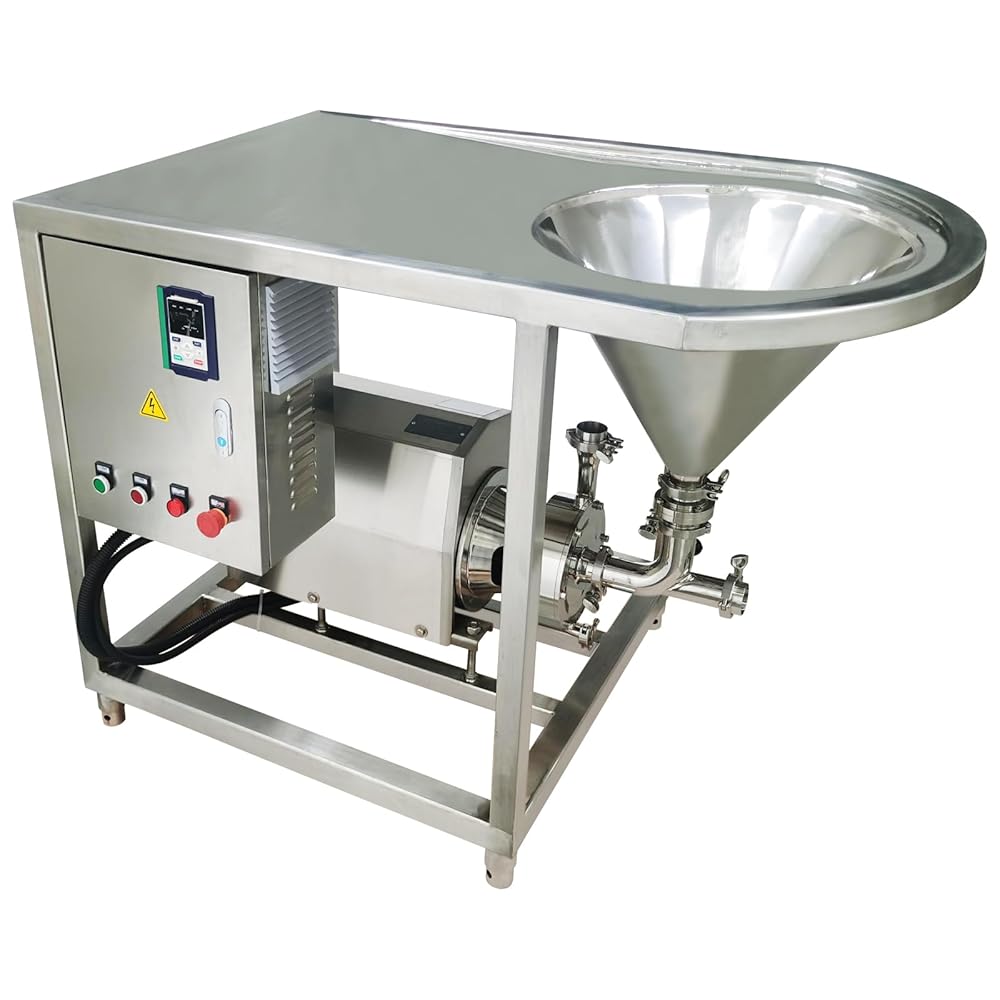

1 * High Shear Mixing System 220V 4KW

Attention
1.Check whether the inlet seal and the outlet seal are good, and no impurities, metal chips and other materials that can cause damage to the equipment enter the body.
2.When the power switch is connected, a safe contact motor device should be installed.
3.Before inlet and outlet pipelines are connected, the pipelines are cleaned, and it is ensured that the pipelines are free of things which can cause damage to the equipment, and the process pipelines can be connected with the machine after being connected with the hard materials.
4.The installation position of the TRL1 pipeline equipment and the nearest location of the container can be selected such as the bottom of the container. The pipeline must be simple and direct, and the components of the elbow pipe are reduced as many as possible, thus reducing the resistance of the material in the circulation process.
5.The choice of location for intermittent equipment installation is suitable for the vertical level of container. When the machine topples over, it must be well sealed, moisture-proof, dust-proof and explosion-proof.
6.Before starting the machine, rotate the spindle, feel the height and flexibility with two hands, and determine no other frictional sound and abnormal sound.
7.When the pipelines are installed, the inlet and outlet pipes adopt the hoop electric connection structure.
8.After the above work is finished, the power supply is connected, and the steering shaft of the motor is checked repeatedly.
