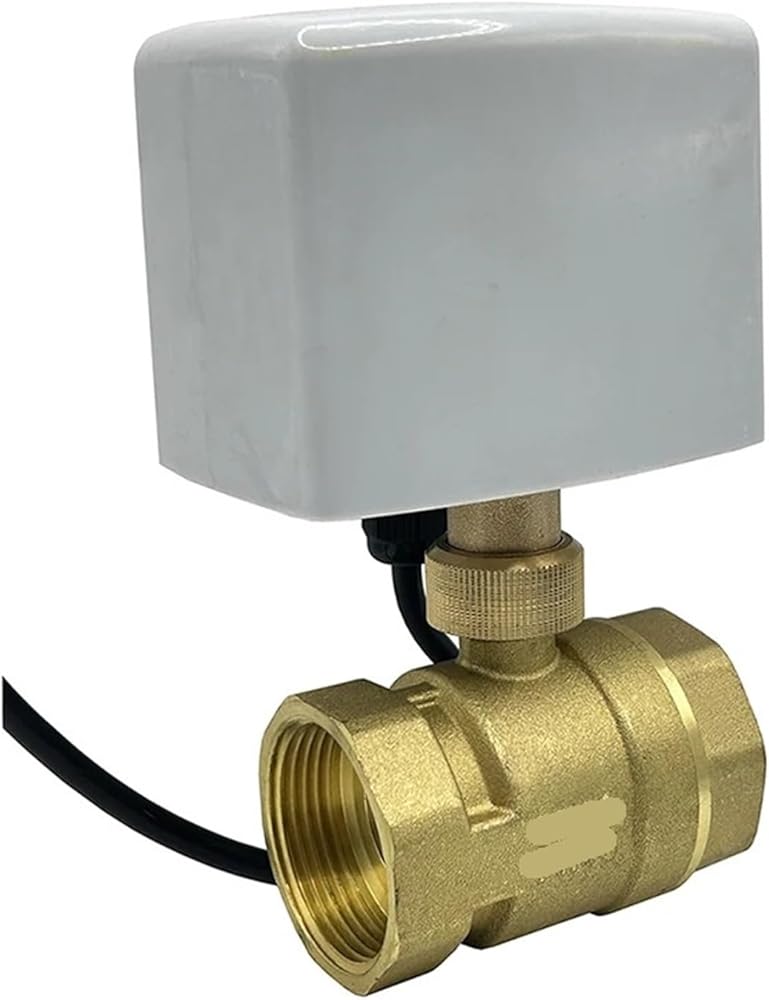

Filter Valves
Specification
Medium: cold/hot water, 60% ethylene glycol
Motor material: metal
Main body material: brass
Torque: 8 Nm
Power supply: AC24V, DC12V, DC24V
Structural form: two ways,
Operation mode: three lines and two controls
Power: 6W (only when the valve is open and closed)
Running time: 8-15 seconds
Nominal pressure: 1.6MPa
Medium temperature: 2°~95°
Maximum pressure difference: 1.0MPa
Connection method: G internal thread

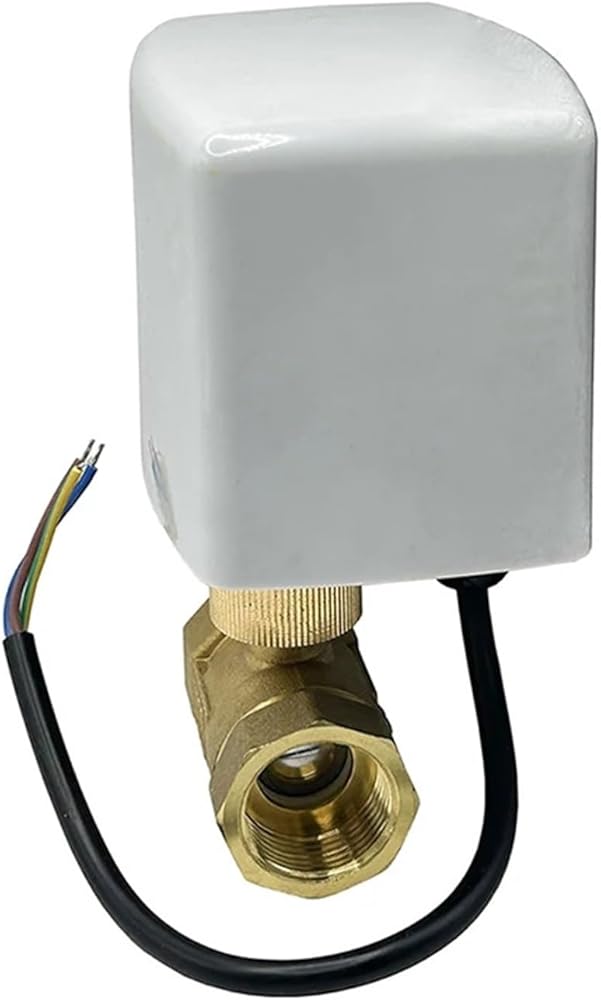

Line connection instructions:
Yellow is connected to the negative pole, positive pole is connected to the blue wire to open the valve, and positive pole is connected to the brown wire to close the valve.
