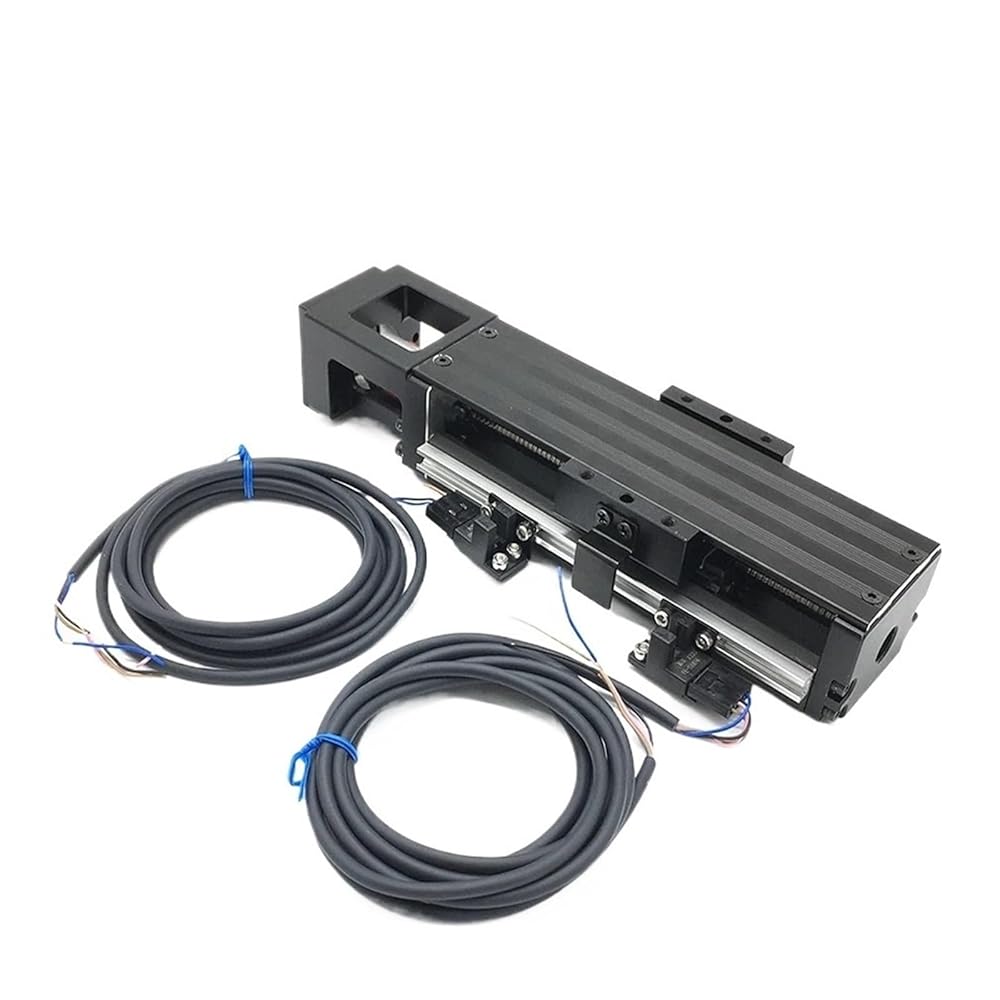

Cross Roller Guides
1 × Mobile Module
1 × Motor mounting flange
1× Mounting Plate
1 × aluminum cover
1× Extreme Track
2×sensor bracket
2× sensors
1 × coupling
Pitch: 5mm/10mm/20mm (If the selected pitch is 5mm, it means that the sliding stage rotates once and the moving panel moves 5mm.)
==========
Chemicals of very high concern: None
Model: KK50/KK60/KK86
Origin: Mainland China
Repeatability: ±0.01 mm
Ball screw lead: 5mm, 10mm
Maximum speed: 250mm/s, 500mm/s
Horizontal: 30kg
Vertical: 10kg
Rated thrust: 341N
Motor bracket matching type: Nema17 42 stepper motor, Nema23 57 stepper motor, 40 servo motor, 60 servo motor, 80 servo motor
