Calculation formula of universal dressing wheel:
Return to zero: H=L=zero R
Trimming convex arc: H=L+R
Trimming concave arc H=LR
H-The distance between the outer bus bars of the two quasi-tips
R - the radius of the arc to be trimmed
L-distance from diamond tip to reference plate

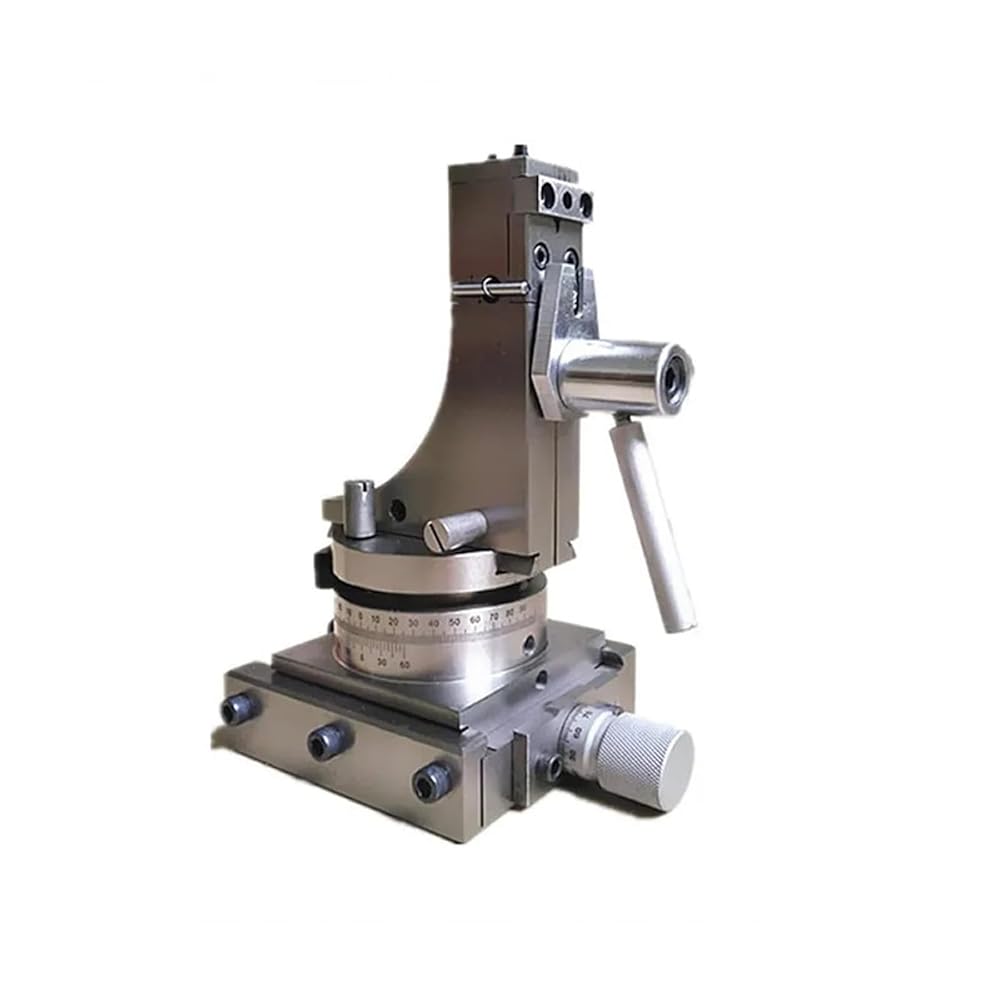

Detailed parameters of universal grinding wheel dresser:
Center height: ±165mm
Turntable scale reading accuracy: 5'
Maximum diameter of grinding wheel dressing: 200mm
Swing range of stone washing pen: ±14mm
Maximum screw advancement: 25mm
Push screw handle scale: 0.01mm
