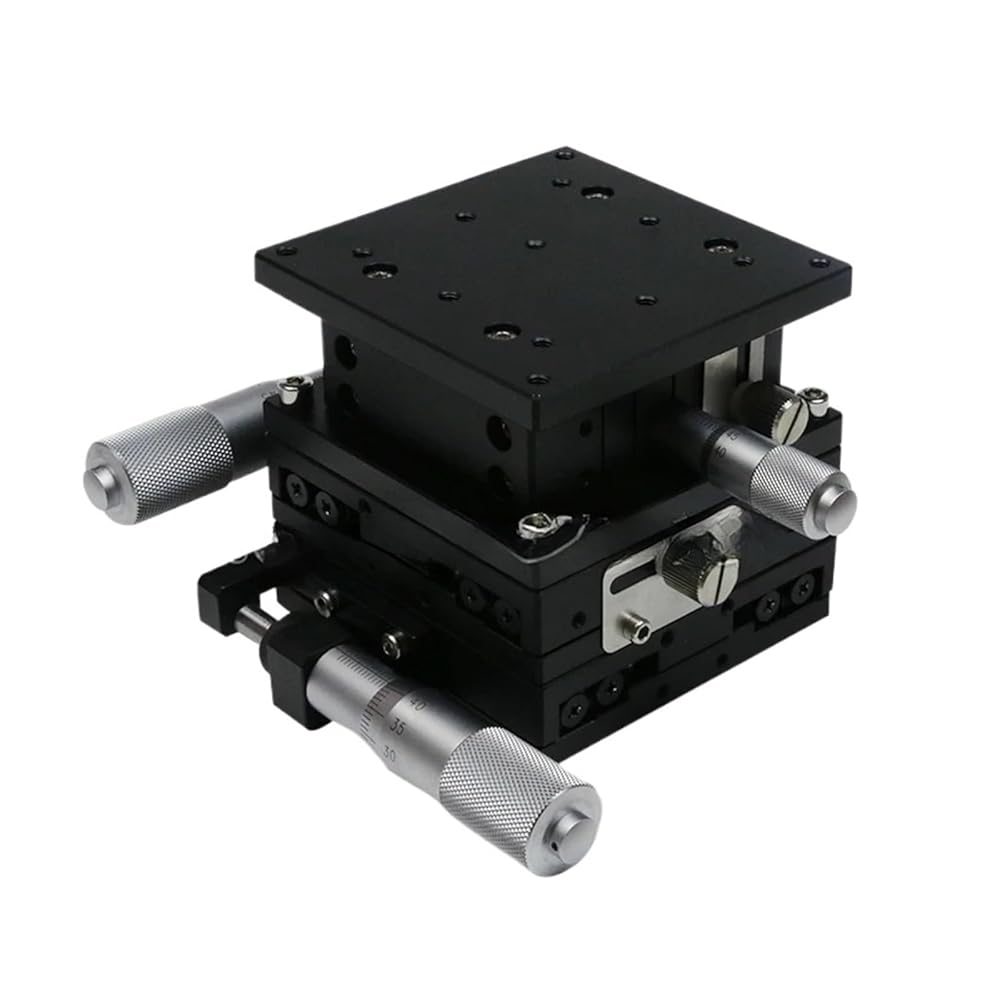

Linear Motion Guide Actuators
feature:

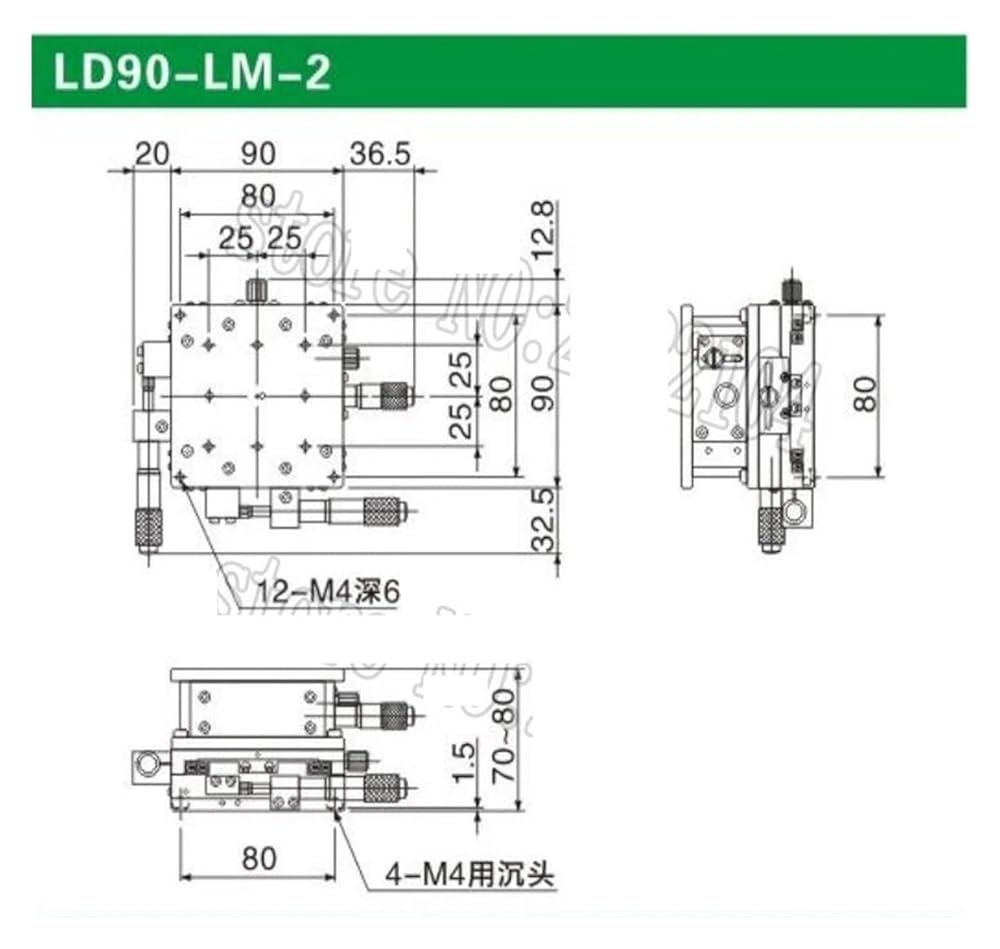

1. Product model: XYZ90-LM-2, LD-90-LM-2
2. Movement direction: XYZ axis three degrees of freedom
3. Z axis adopts double horizontal guide rail structure
4.Material: Aluminum
5. Slider range: 90mm*90mm
6. Travel: XY axis: ±12.5mm, Z axis: ±10mm
7. Load: 88.2N (9kgf)
8. Guide rail type: V guide rail (cross roller guide rail), Z axis: double cross guide rail
9. Minimum reading: 0.01mm
10.Straightness: 0.01mm
11.Weight: 1.7 kg
