Ld40 Lm|Ld40 Cm|High-precision crossed roller guide: The cross roller guide is used to ensure accuracy and smooth movement, with an accuracy and straightness of 0.01mm.
Multifunctional travel range: with XY ±6.5mm and Z-axis 10mm travel
وصف

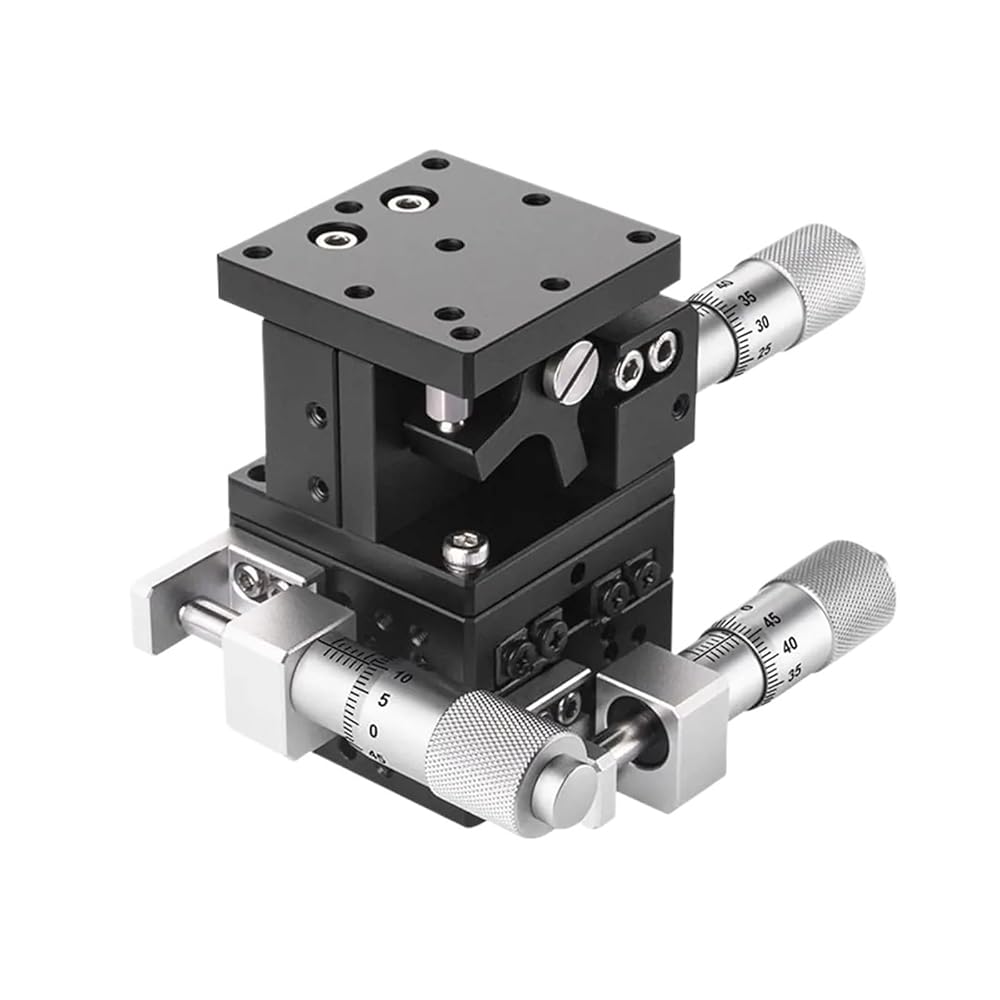

Roller Tables
Features: 1. Uses crossed roller guides to achieve high-precision, smooth motion
2. The main material is aluminum, which is light in weight and suitable for building other equipment.
3. Driving mode: differential head
Parameters: 1. Movement direction: XY, Z axis
2.Material: aluminum
3. Workbench size: 40*40mm
4. Guide rail type: V-shaped guide rail (crossed roller guide rail)
6. Stroke: XY: ±6.5mm Z axis: 10mm
7. Load: 19.2N (2kgf)
8. Accuracy: 0.01mm
9. Straightness: 0.01mm
11. Weight: 0.45kg
