المحور Z 60*60 مللي متر LV60 منزلق الإزاحة اليدوية الرفع العمودي in Kuwait المحور Z 60*60 مللي متر LV60 منزلق الإزاحة اليدوية الرفع العمودي in Kuwait

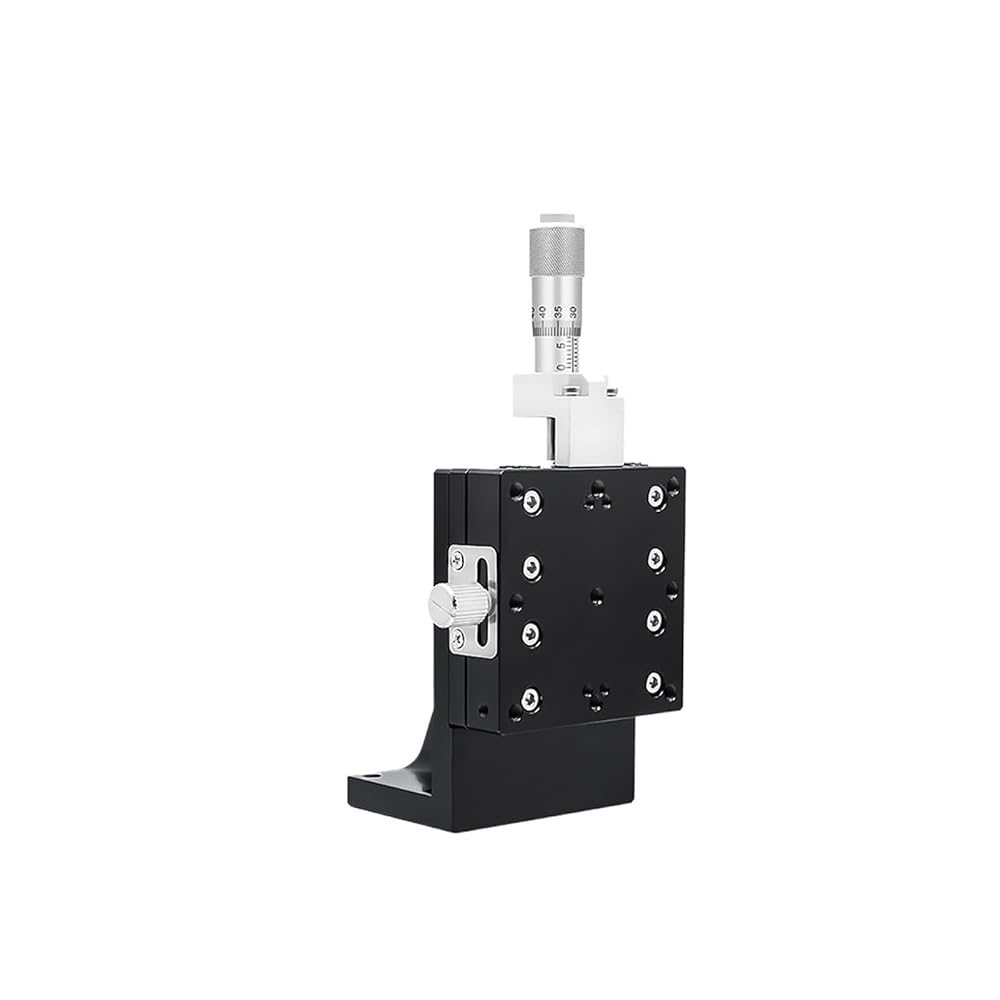

المحور Z 60*60 مللي متر LV60 منزلق الإزاحة اليدوية الرفع العمودي

KWD 197
ماركة
LKBEJMYY
وزن
50 g
– 1 +

مميزات خاصة

  • Roller Tables
  • Lightweight and portable: the LV60 platform weighs only 0.45 kg
  • Aluminum Material: The platform is made of durable aluminum
  • Precision Crossed Roller Guide: Equipped with precision crossed roller guide, it can achieve smooth and high-precision movement under micron load.
  • LV60 Vertical Lift Stage: Designed as the LV60 vertical lift stage, it provides excellent operational performance in the vertical Z-axis direction.
  • ±6.5mm movement range: The movement range of the LV60 platform is ±6.5mm

وصف

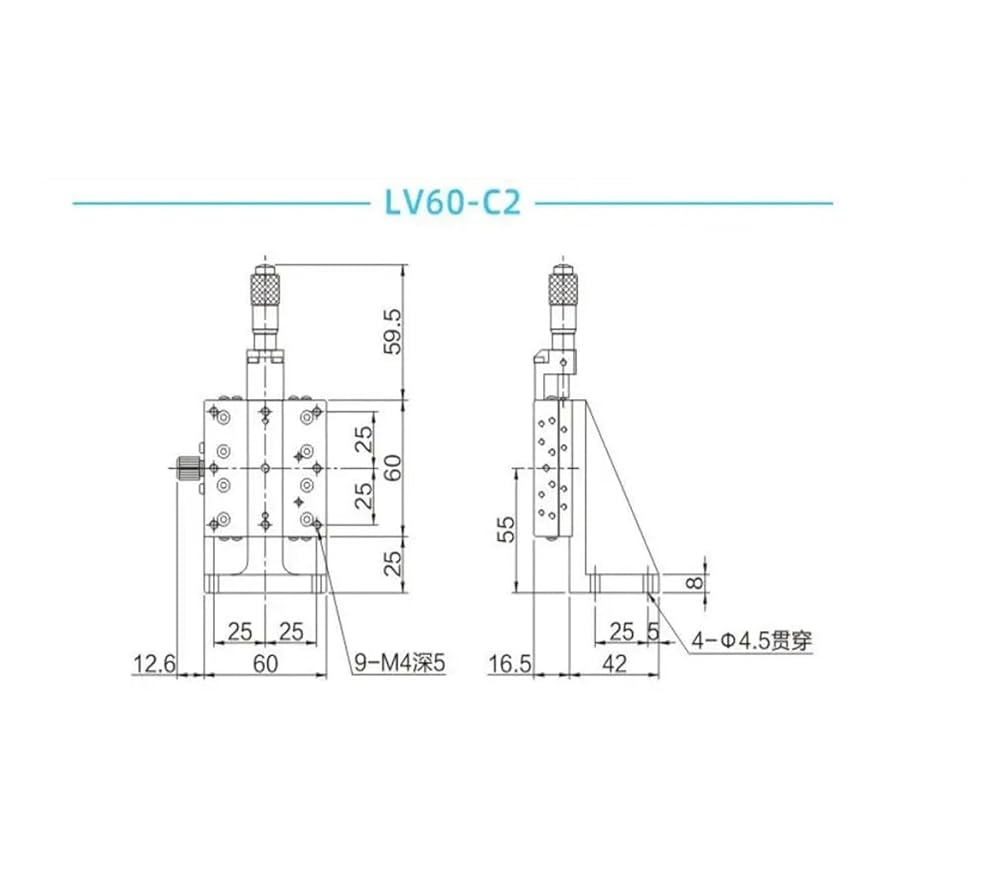

Roller Tables
scope:
1. Movement direction: vertical Z-axis direction
2. Stage size: 60*60mm
3.Material: aluminum
4. Movement amount: ±6.5mm
5. Load: 39.20N (4kgf)
6. Accuracy: 0.02mm
7. Minimum reading: 0.01mm
8. Weight: 0.45kg
