Filter Valves
About this product

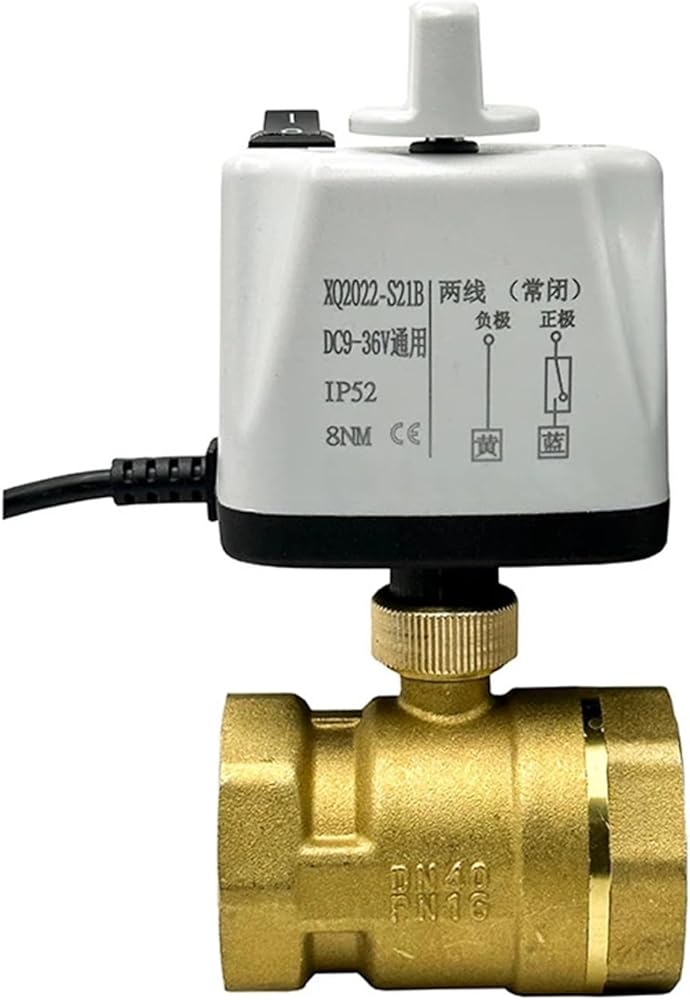

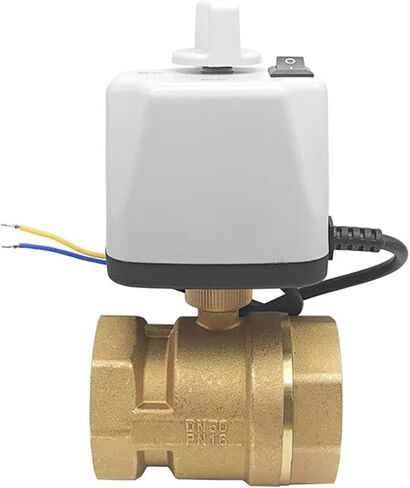

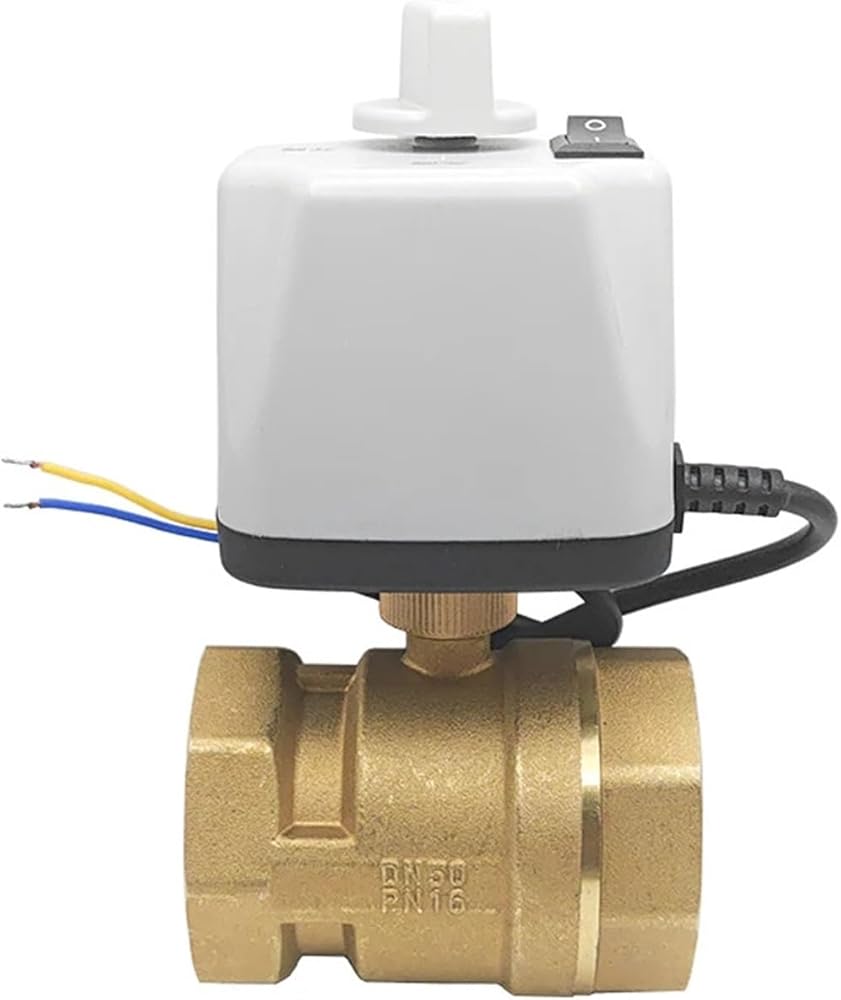

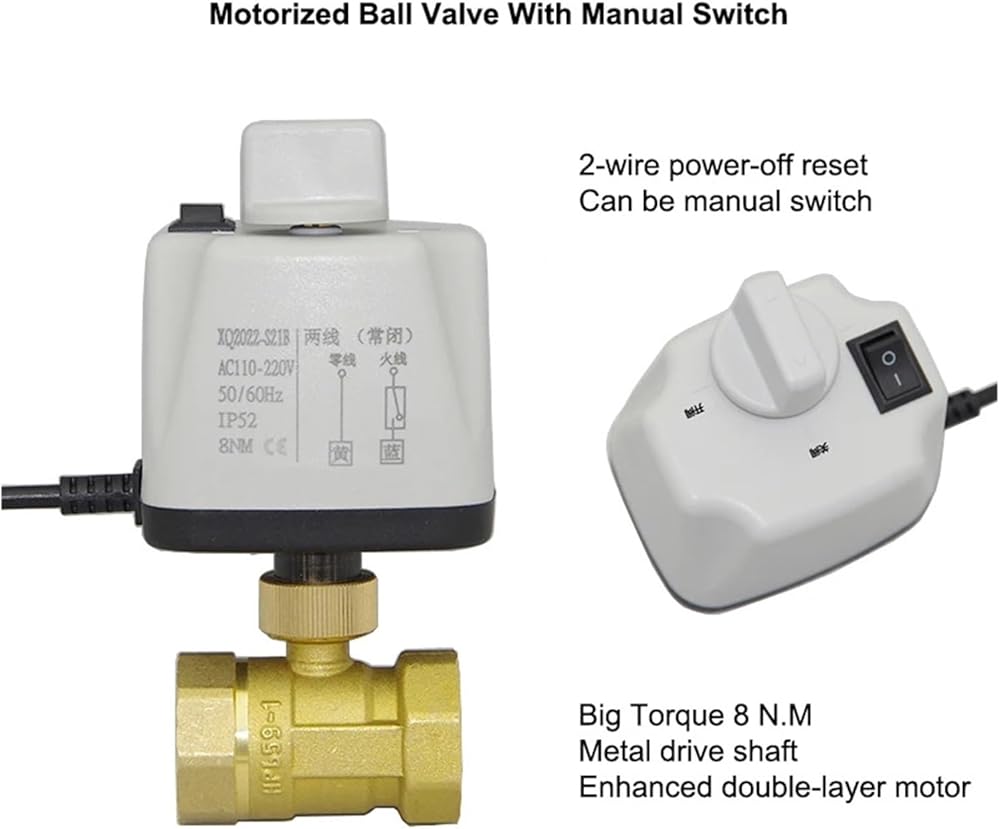

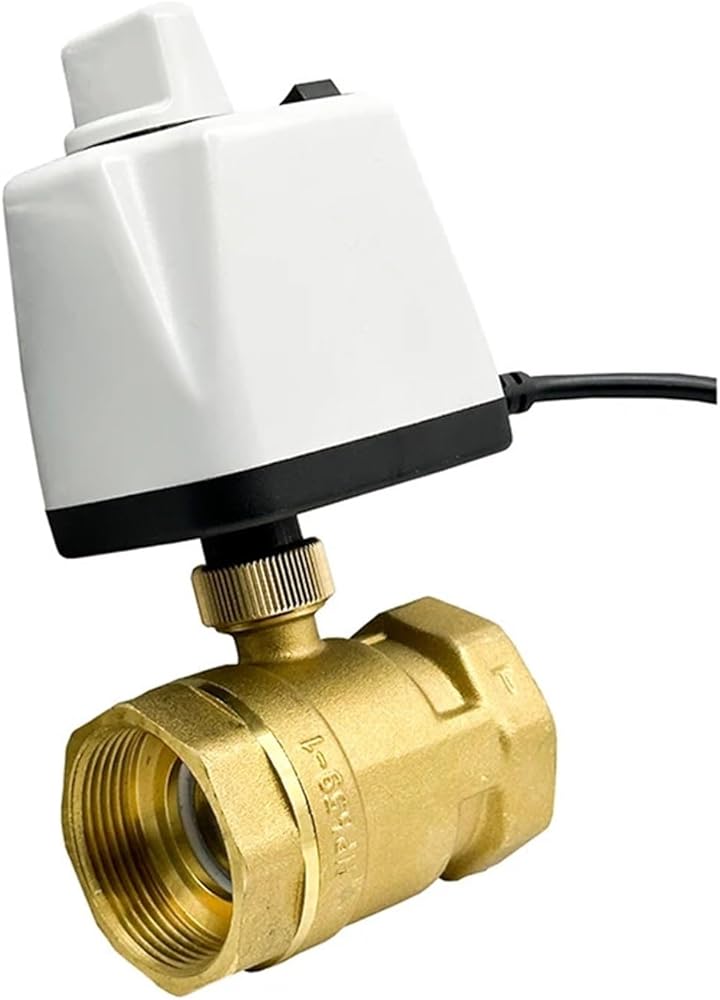

ball valve consists of valve body and driver. It has the advantages of simple structure, reliable operation, large through-flow, energy saving, and can replace the solenoid valve. It can be widely used in heating, central air conditioning, solar hot water systems, and water treatment systems for hot and cold water switch control.

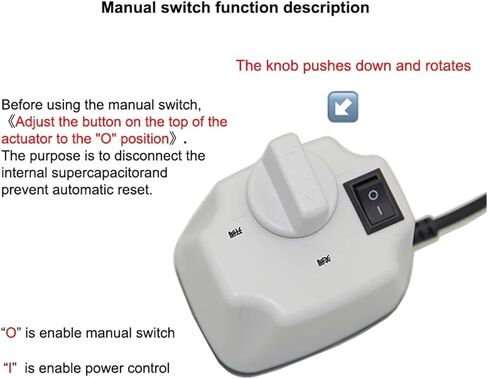

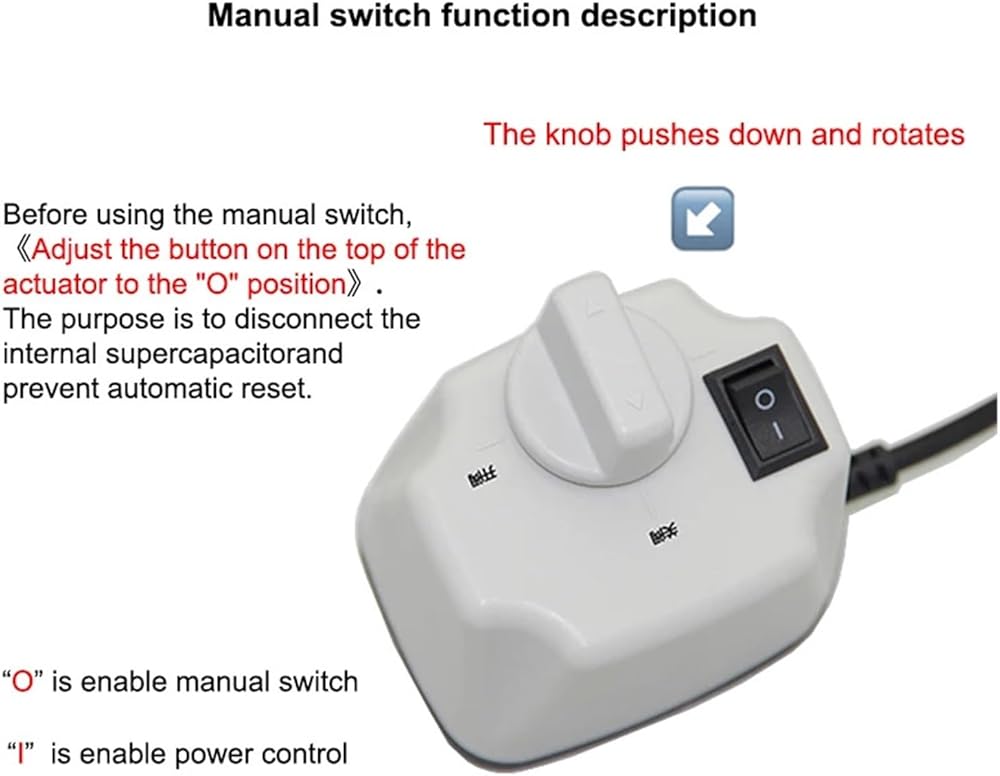

In addition, the valve has a manual switch function and can be manually adjusted when the valve is locked. Or during a power outage, the valve can be opened manually if necessary.
Medium: cold water, hot water or 50% ethylene glycol solution
Body material: brass

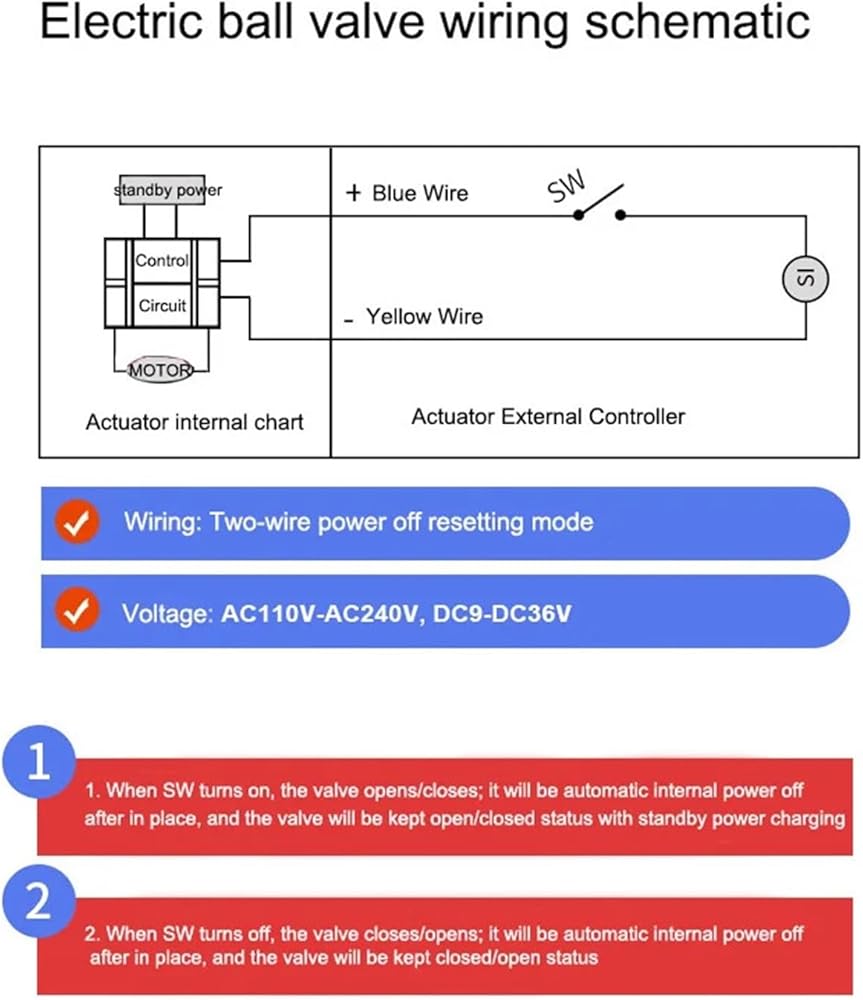

Wiring mode: 2 wires, power off reset
Working form: Normally closed/normally open
Driving voltage: 220VAC, 110VAC, 24VDC, 12VDC
Power consumption: 6W (only when the valve is open and closed)
Torque: 8 Nm
Applicable medium temperature: 0-90℃
Action time: 5-15S
Nominal pressure: 1.6Mpa
Lead length: 30CM
Connection method: internal thread
Notice:
1. The power-on time should not be less than 1 minute, and the positive and negative poles should be connected strictly, and do not connect them reversely.
2. "AC110-220V" marked on the ball valve can be connected to 110V-220V voltage, and "DC9V-36V" can be connected to 9V-36V voltage.
