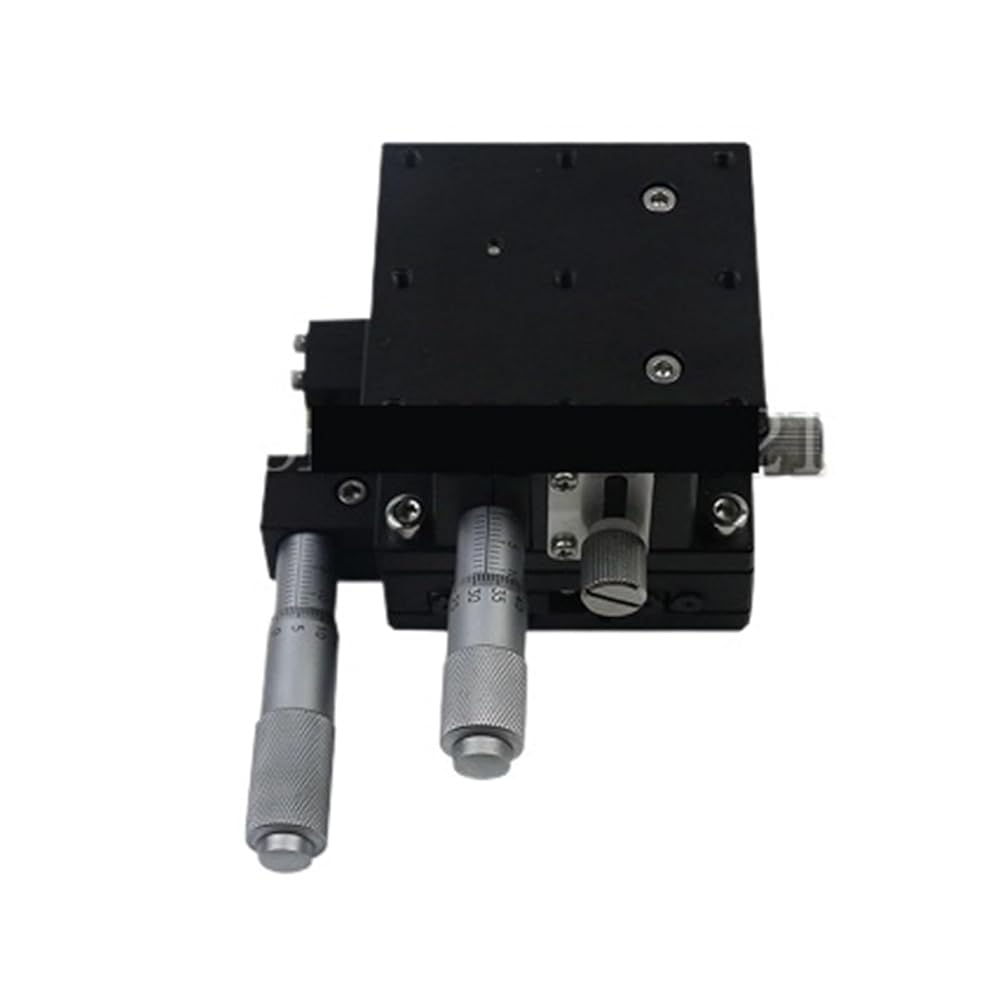

Cross Roller Guides
describe:
1. Cross roller guide rails are used to achieve high-precision and smooth movement
2. The main body is made of aluminum alloy, which is light and suitable for built-in other equipment
3.Multi-axis combination slide
4. Drive mode: micrometer
scope:
Movement direction: one degree of freedom in X-axis, one degree of freedom in Z-axis
The Z axis adopts a single beam structure
Material: aluminum alloy
Dial size: 40*40mm
Movement: X axis ±6.5mm, Z axis 10mm
Guide type: V-type guide (cross roller guide), Z axis: single cross guide
Load: 19.2N (2kgf)
Minimum reading: 0.01
Straightness: 0.01
Weight: 0.31KG
