تتحمل 15 ملم مفتاح 5x2.3 16 ملم
مقاسBore 15mm Key 5x2.3
مميزات خاصة
- Material: Aluminium Alloy; Durable and virtually.
- Used widely in milling machine, CNC engine lathe, gear shaper, hobbing machine, drilling machine or other machinery transmission occassions.
- Belt Width:16mm; Total Height:28mm
- Type:Bore with keyway
- Screw:2*M5
وصف

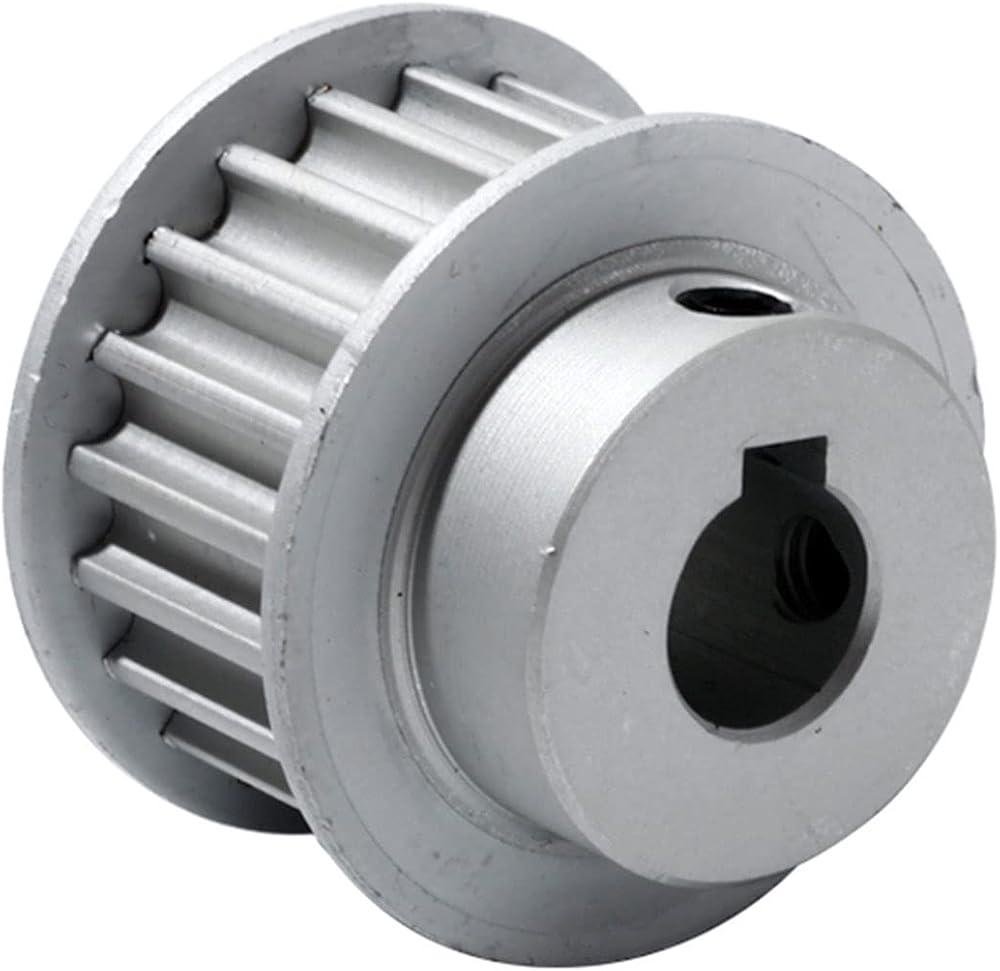

Name:5M-20T timing pulley
Model:HTD 5M Type
Teeth Number:20T
Teeth Pitch:5mm
Inner bore:
Bore 8mm Keyway 3*1.4mm;
Bore 10mm Keyway 3*1.4mm;
Bore 10mm Keyway 4*1.8mm;
Bore 12mm Keyway 4*1.8mm;
Bore 12mm Keyway 5*2.3mm;
Bore 12.7mm Keyway 5*2.3mm;
Bore 14mm Keyway 5*2.3mm;
Bore 15mm Keyway 5*2.3mm;
Belt Width:16mm
Total Height:28mm
Type:Bore with keyway
Screw:2*M5
Material:Aluminum alloy
Package:1pc timing pulley
