Parameter Information:
Model Number: 895
Material: Metal
Voltage: 12 - 24V DC
No Load Speed: 10000RPM(12V) - 20000RPM(24V)
Power: 60-80W

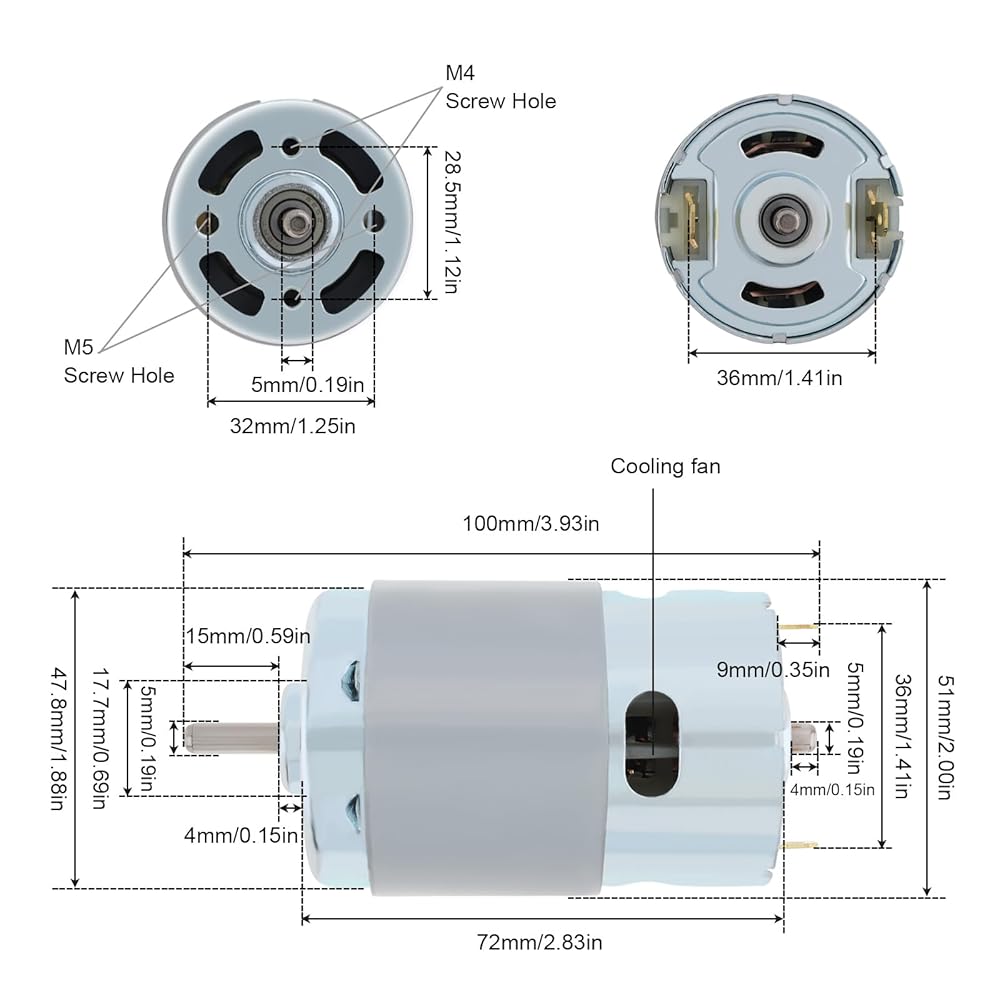

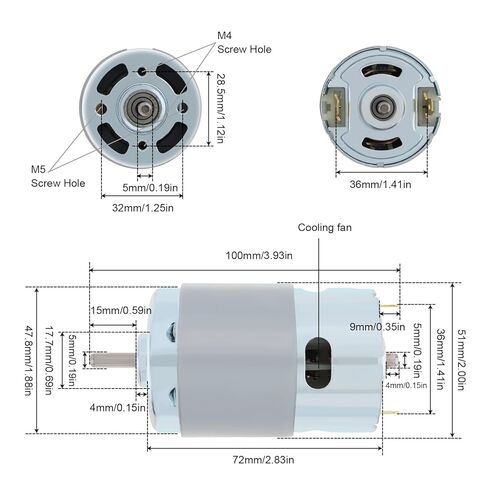

Shaft Diameter: 5mm
Output Shaft Length: 15mm
Commutation: Brush
Installation Screw Size: M4, M5
Installation Screw Spacing: 29mm
Rotation Direction: CW/CCW

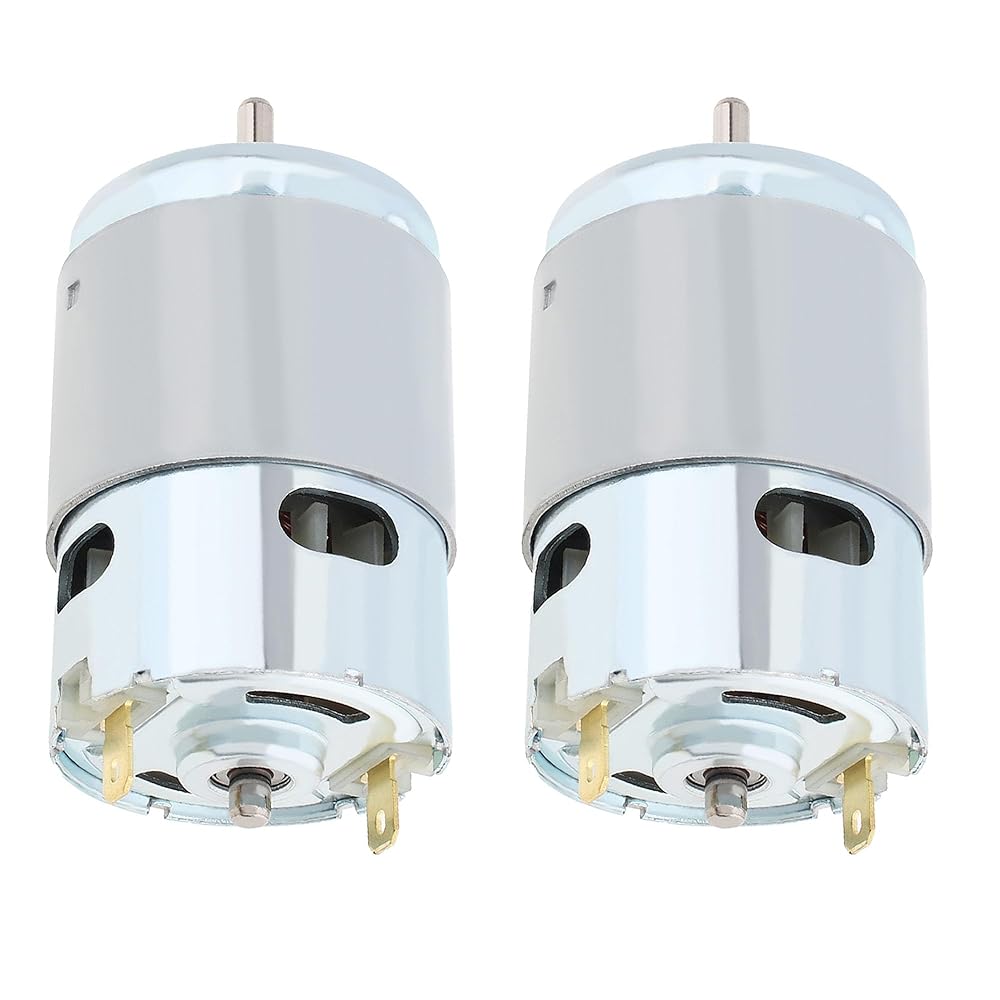

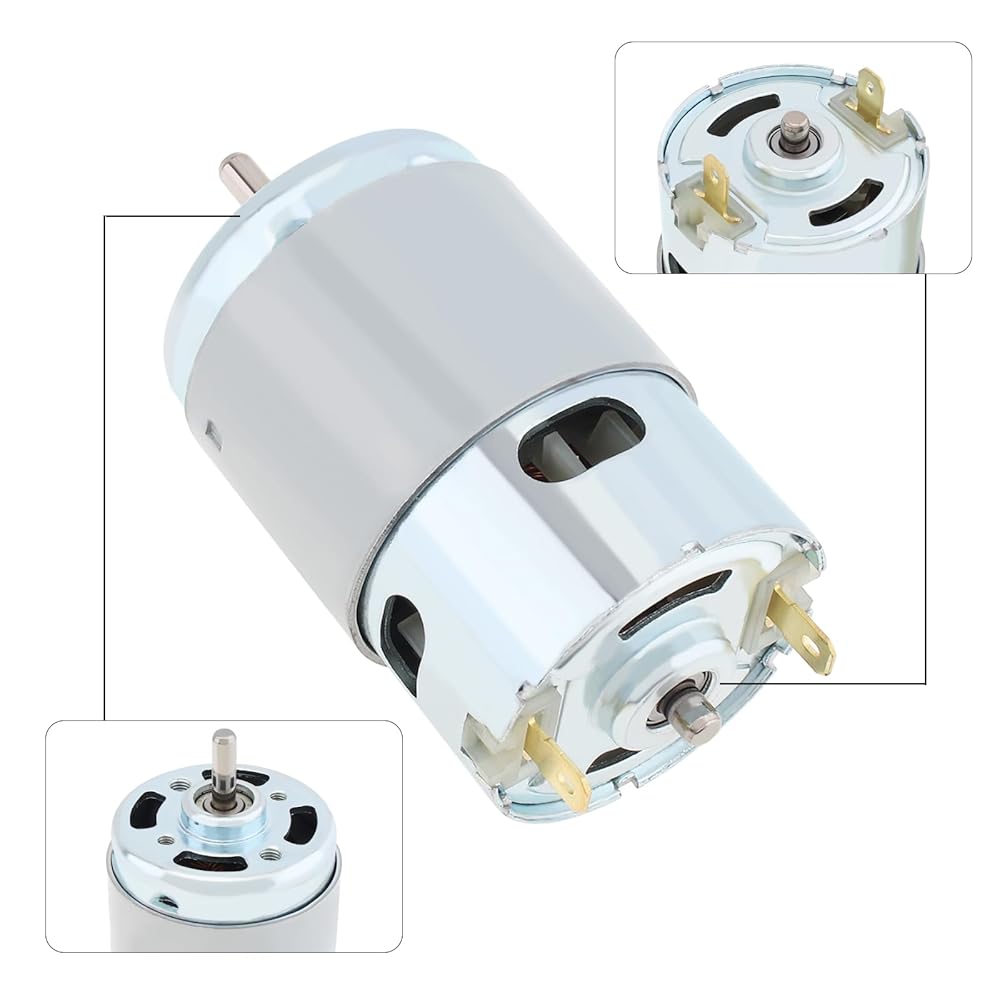

Product Name: 895 DC Motor
- 895 DC motor, high speed, high power, sufficient power, low noise, and serviceable, support power generation/power output two purposes.
- Adjustable speed. By using a speed controller, speed regulation can be achieved.

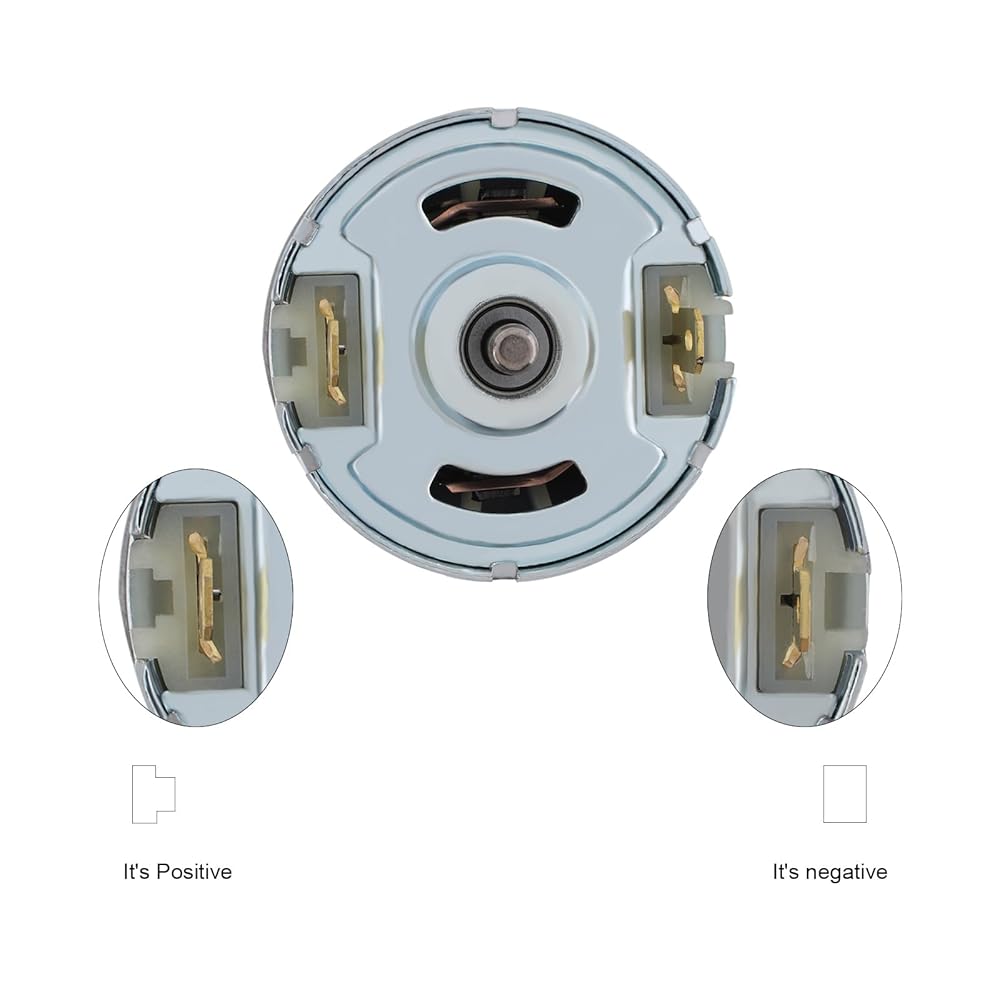

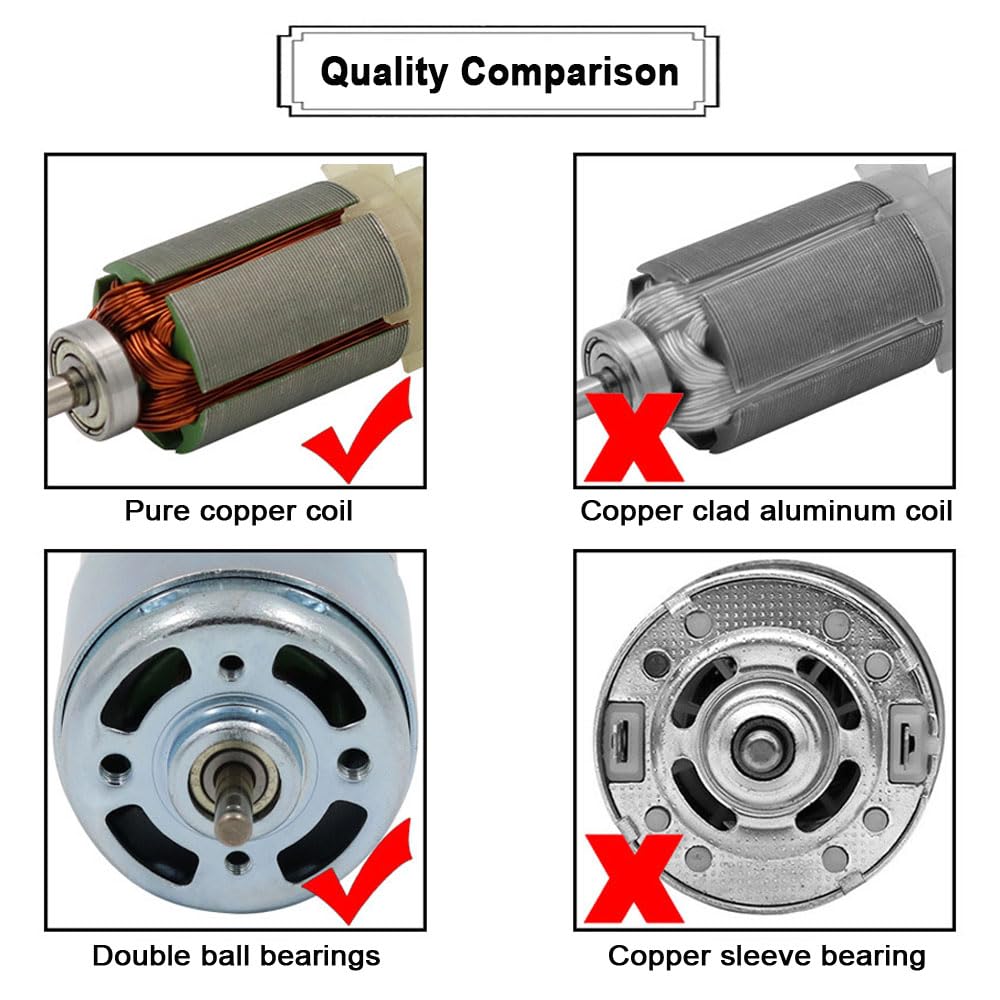

- Front and rear double ball bearings, support forward and reverse rotation(Reverse the positive and negative poles or use the motor controller).
- Pure copper coil, with heat dissipation impeller, stable speed, strong continuous torque output, the torque is more than twice that of the 775 motor.
- Suitable for DIY electric tools, cutting machine, abrasive belt machine, bench drill, electric hand drill, lawn mower, polishing machine and other places.
No load Speed: 10000-20000RPM(10000RPM at 12V); 20000RPM at 24V)
Motor step height: 4.5mm
Motor step diameter: 18mm
Motor diameter: 48mm plus magnetic ring 50mm
Place of Application:
DIY electric tools, cutting machine, abrasive belt machine, bench drill, electric hand drill, lawn mower, polishing machine, etc.
Note:
- Starting current should be more than 10A. It is recommended to use switching power supply or battery like power.
- It is recommended to use 360W24V15A switching power supply, and can not directly use household 220V.
