مميزات خاصة

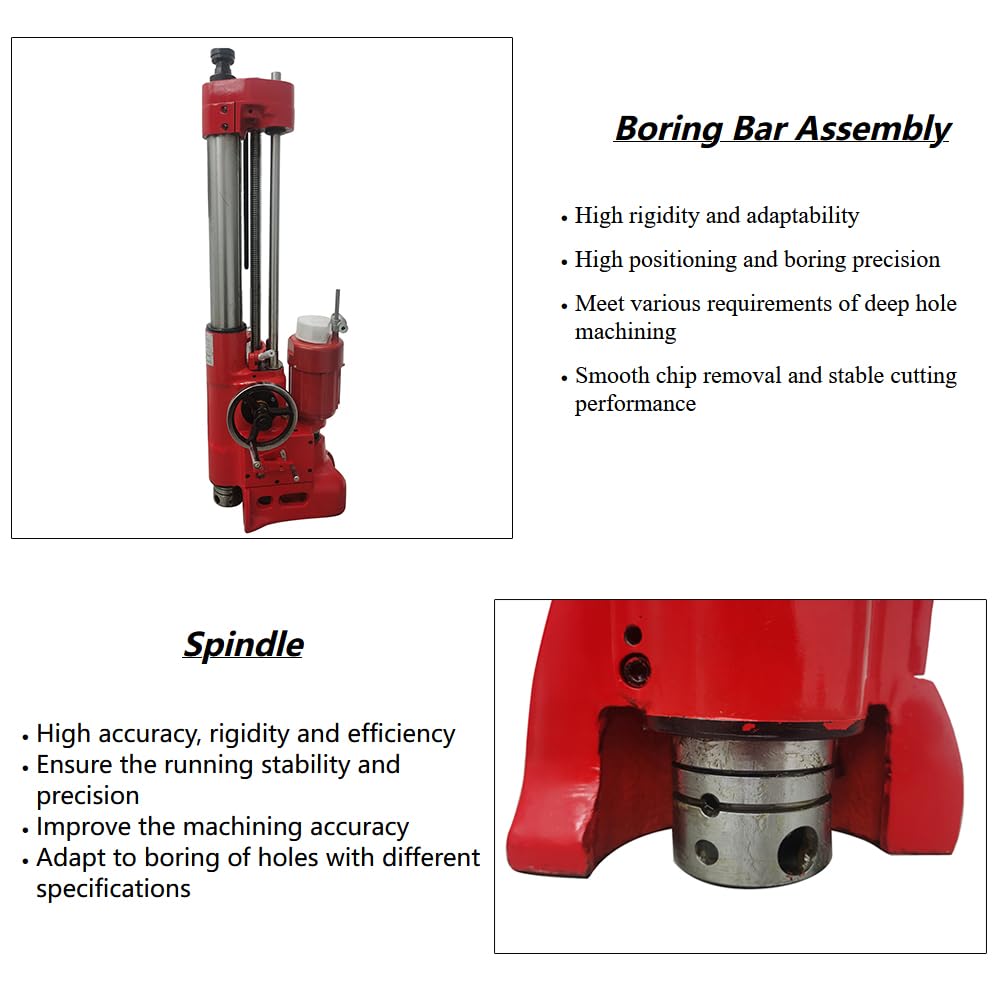

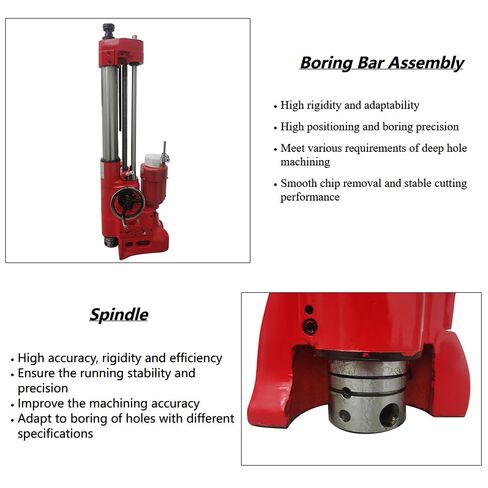

High Precision Machining: This 220V engine cylinder boring machine can bore holes with a diameter range of 50-95mm, Spindle Speed: 394r/min, Feed: 0.1mm/r. It has high positioning and boring accuracy, meeting various deep hole machining requirements.

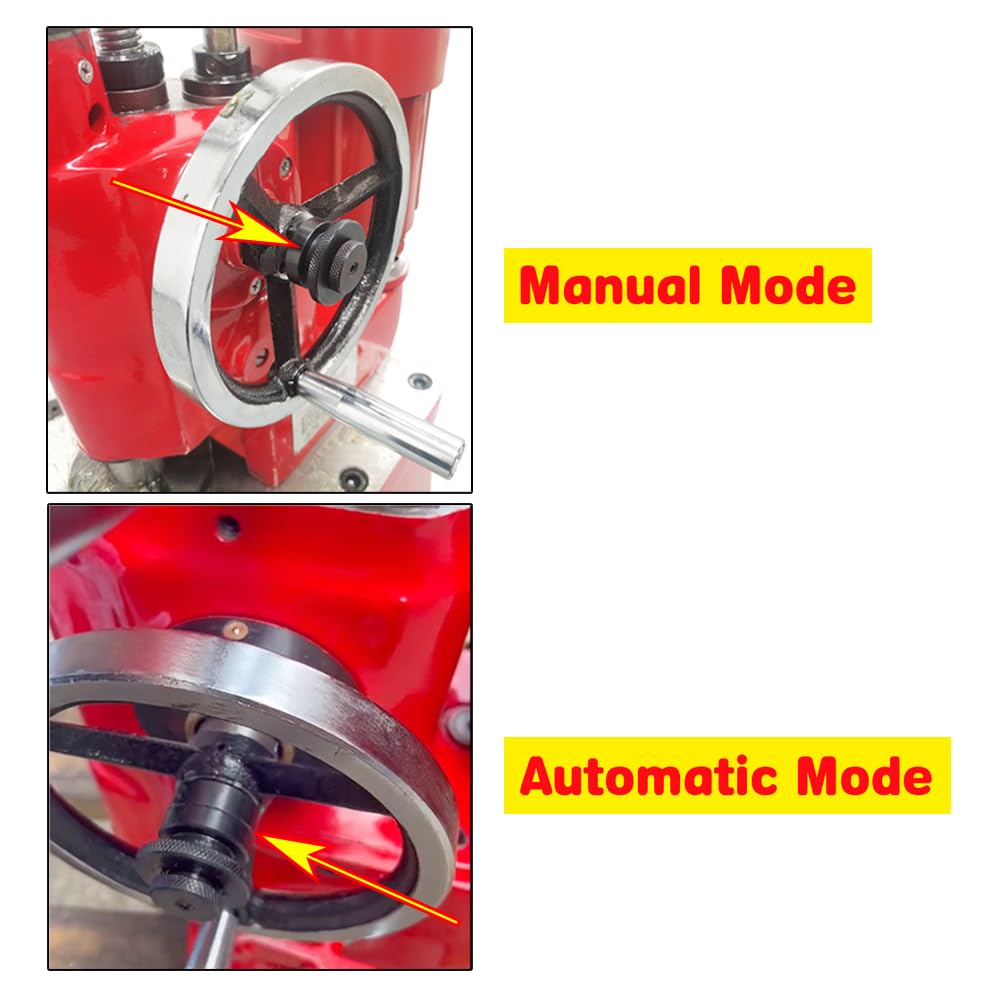

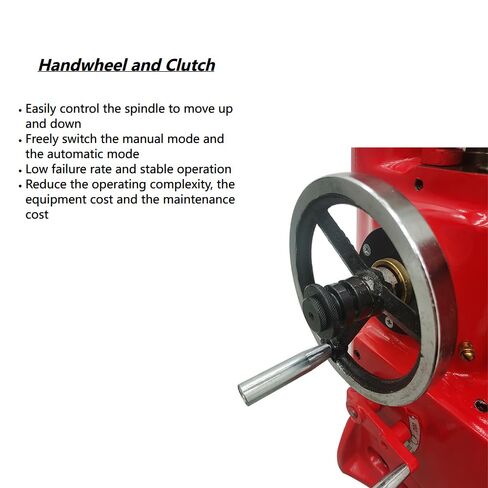

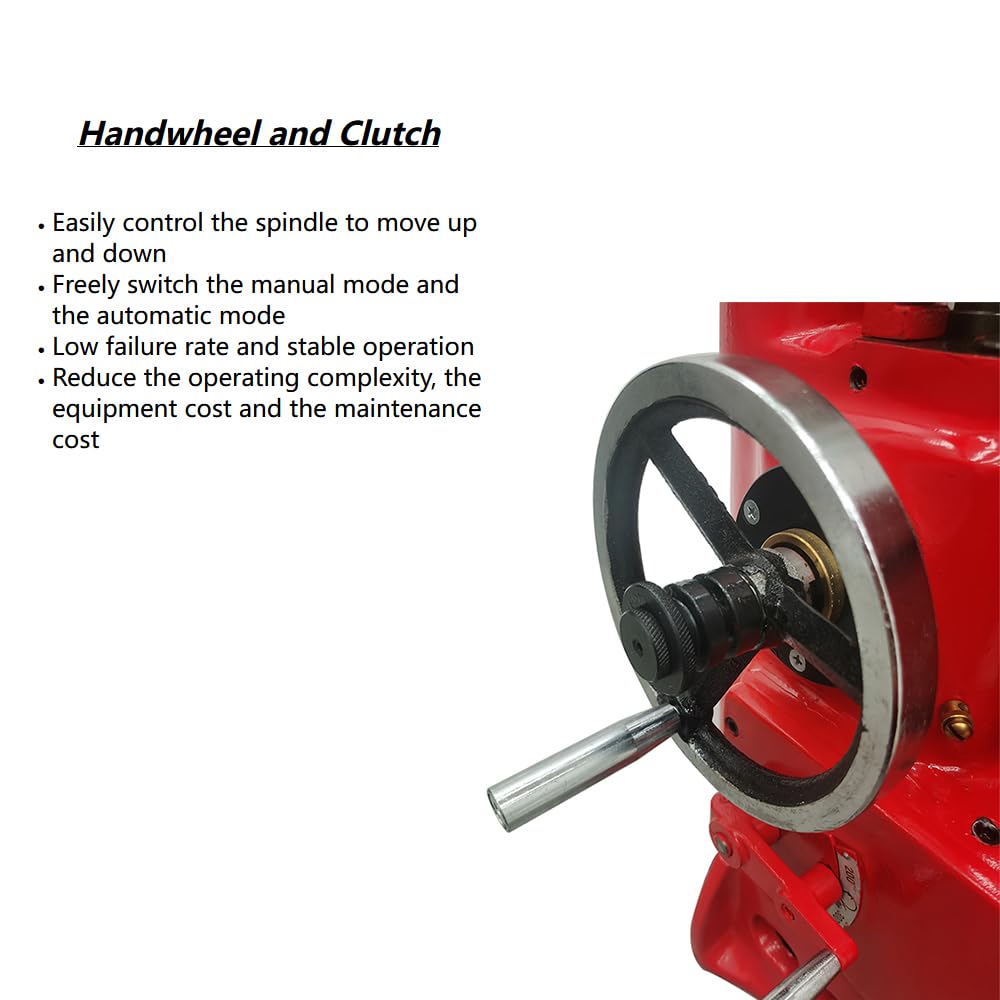

High Quality: Adopting a high rigidity body design, it can withstand large cutting amounts, reduce vibration deformation, ensure surface roughness of the hole wall, and extend engine life. The handwheel can control the up and down movement of the spindle and can be freely switched between manual and automatic modes.
Easy to Operate: The boring cylinder machine is equipped with a three-point telescopic positioning mechanism, with precise and reliable clamping, significantly improving production efficiency; The dedicated tool setting device simplifies the operation process and reduces the technical threshold.

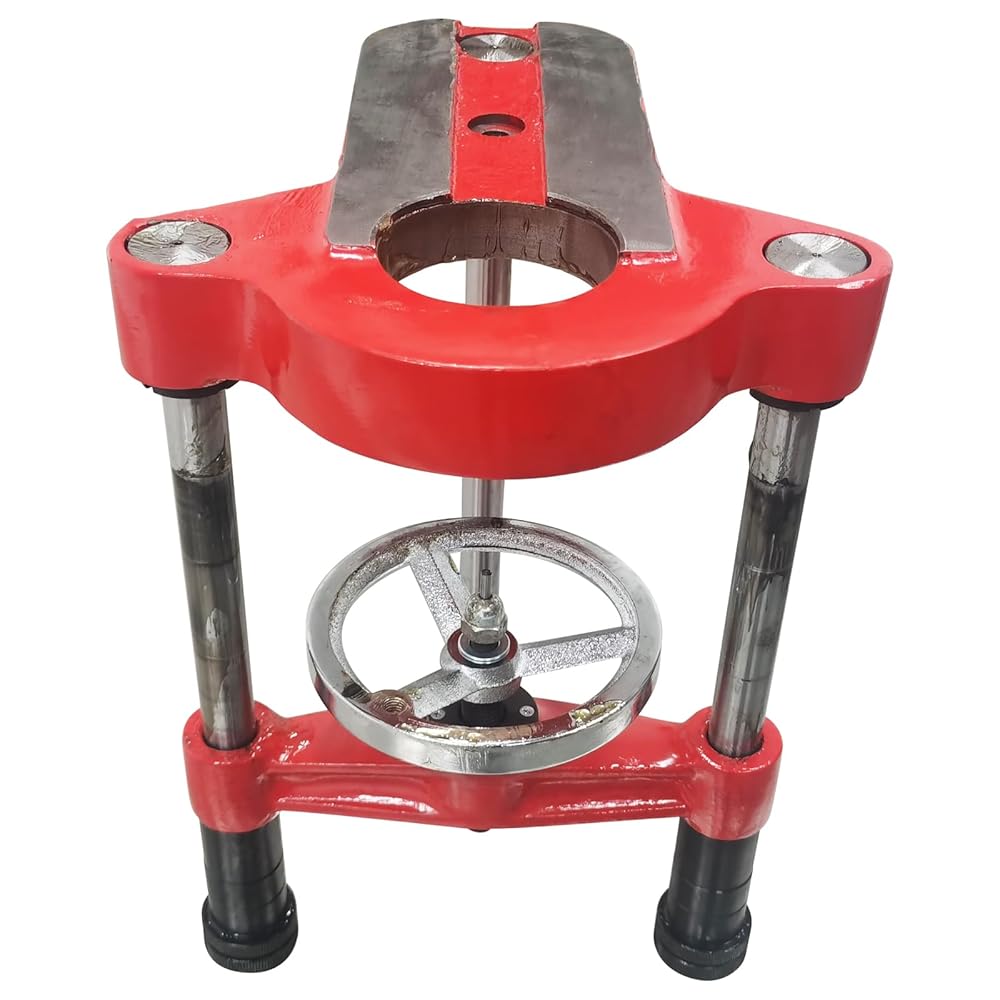

Base Bracket: The base bracket adopts a heavy-duty structural design, which improves overall rigidity through reasonable mechanical distribution, effectively suppresses vibration during boring process, and has high boring accuracy, especially suitable for deep hole machining. The maximum boring depth can reach 170 mm.
Wide Application: Mainly used for boring and repairing automobile engine cylinders, and can also be used for repairing engine cylinders of small and medium-sized tractors. It is the preferred equipment for small and medium-sized repair shops to improve efficiency and reduce costs.

وصف

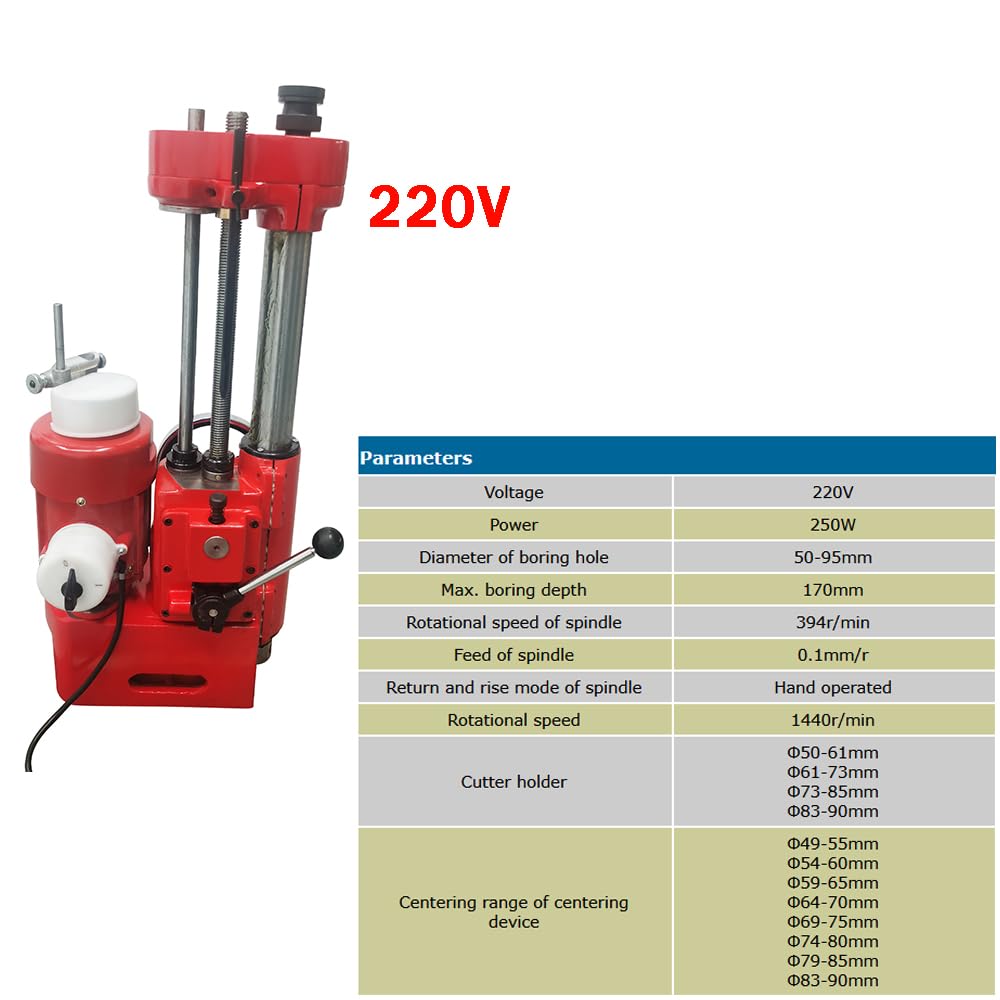

Parameter
Colors: Red
Voltage: 220V
Power: 250W
Diameter of boring hole: 50-95mm(1.97-3.74in)
Max. boring depth: 170mm(6.69in)
Rotational speed of spindle: 394r/min
Feed of spindle: 0.1mm/r
Return and rise mode of spindle: Hand operated
Rotational speed: 1440r/min
Cutter holder:
Φ50-61mm
Φ61-73mm
Φ73-85mm
Φ83-90mm
Centering range of centering device:
Φ49-55mm
Φ54-60mm
Φ59-65mm
Φ64-70mm
Φ69-75mm
Φ74-80mm
Φ79-85mm
Φ83-90mm
Packing: Wooden box packing

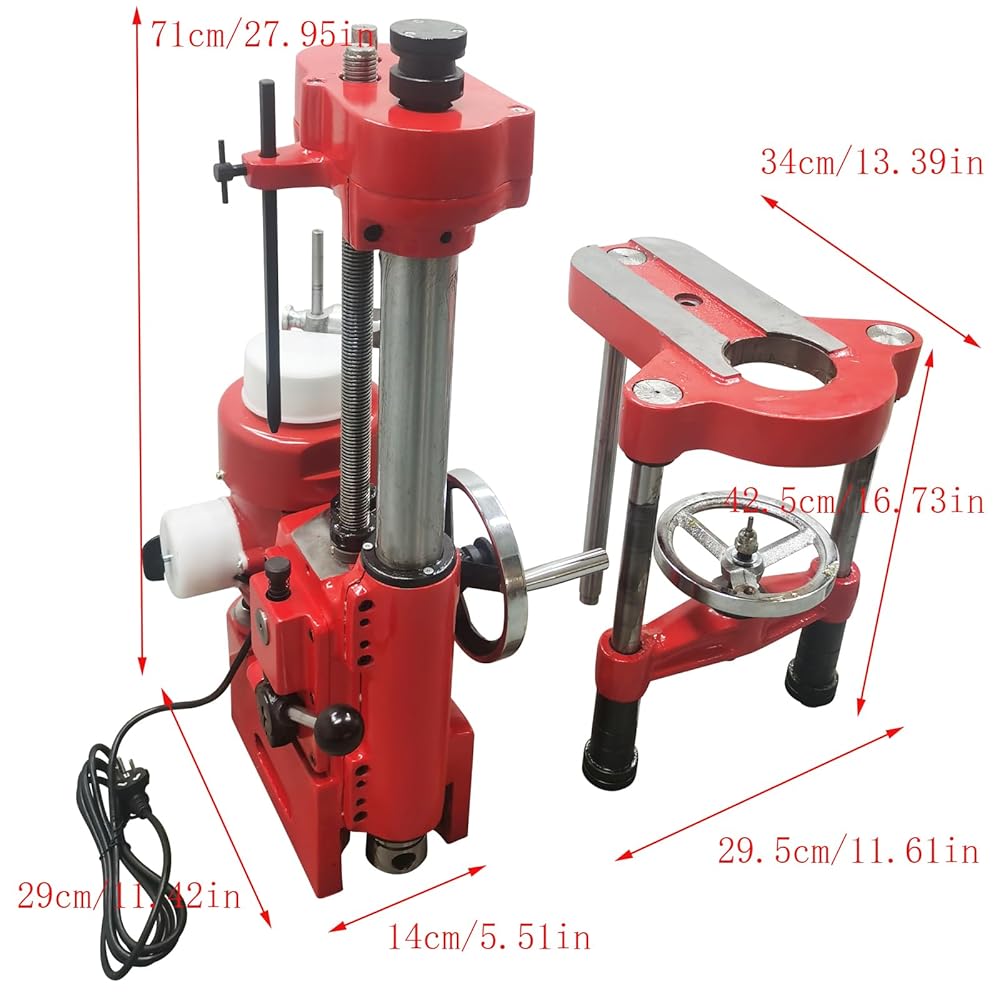

Packing Size: 27.76*18.31*34.06inch
Shipping Weight: 206lb

Item Included(022590)

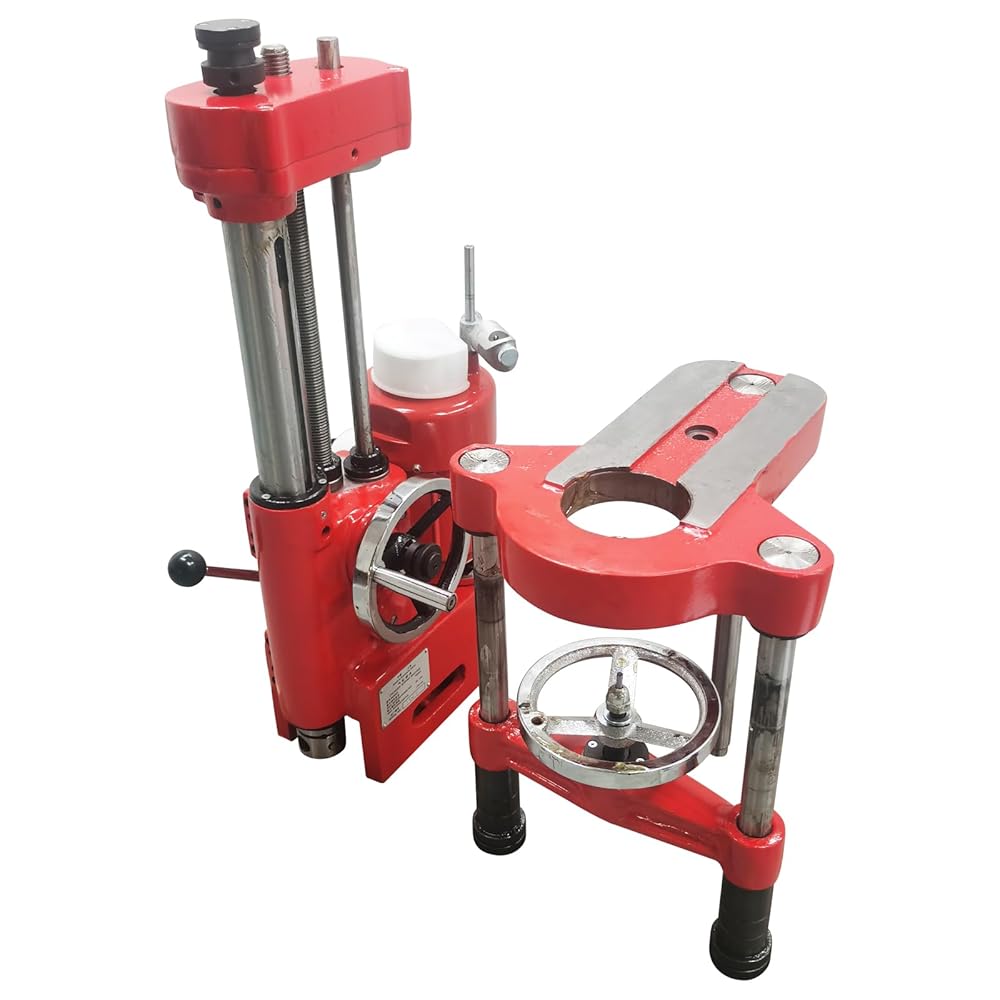

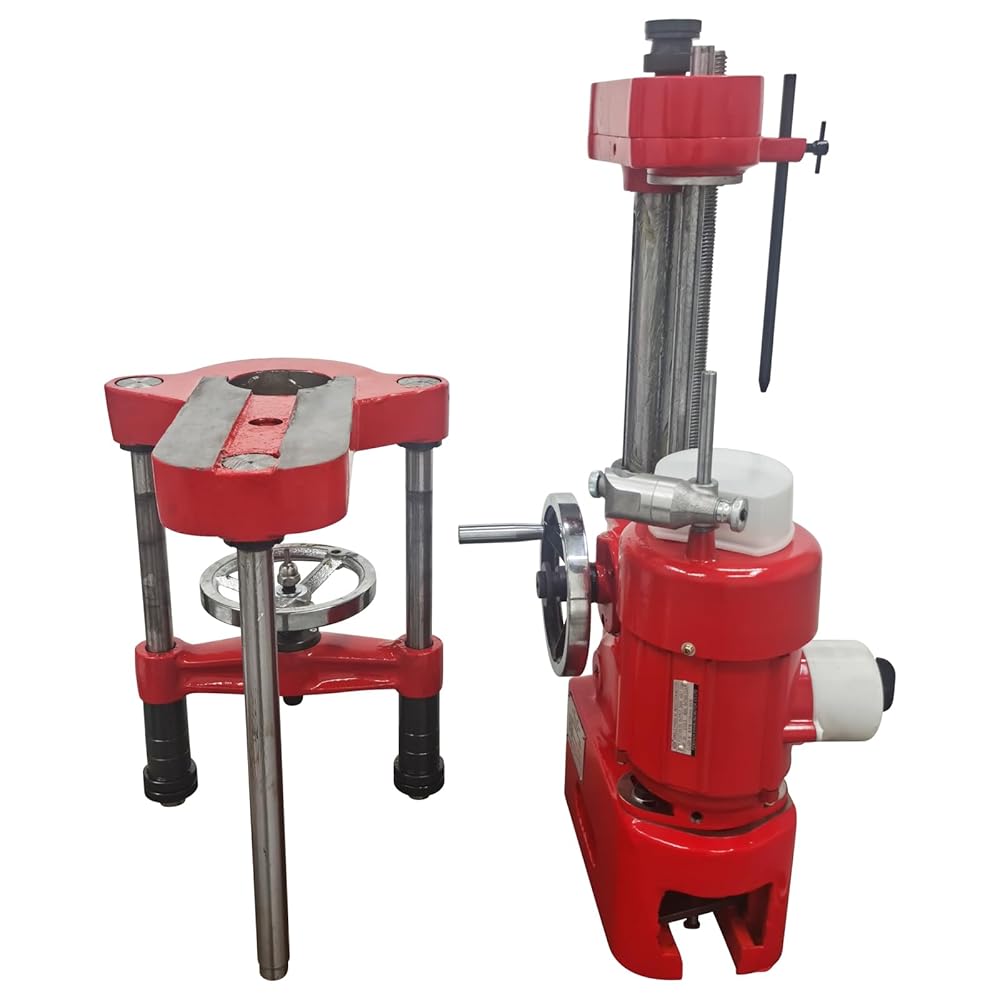

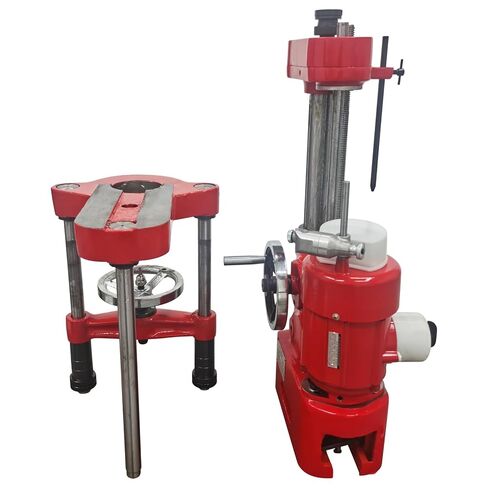

A 220V Engine Cylinder Boring Machine with Base Bracket Boring Range 1.97-3.74in Max Boring Depth 6.69in
