X-axis LWX4040 Dovetail Groove منصة الضبط الدقيق للتحويل اليدوي in Kuwait X-axis LWX4040 Dovetail Groove منصة الضبط الدقيق للتحويل اليدوي in Kuwait X-axis LWX4040 Dovetail Groove منصة الضبط الدقيق للتحويل اليدوي in Kuwait

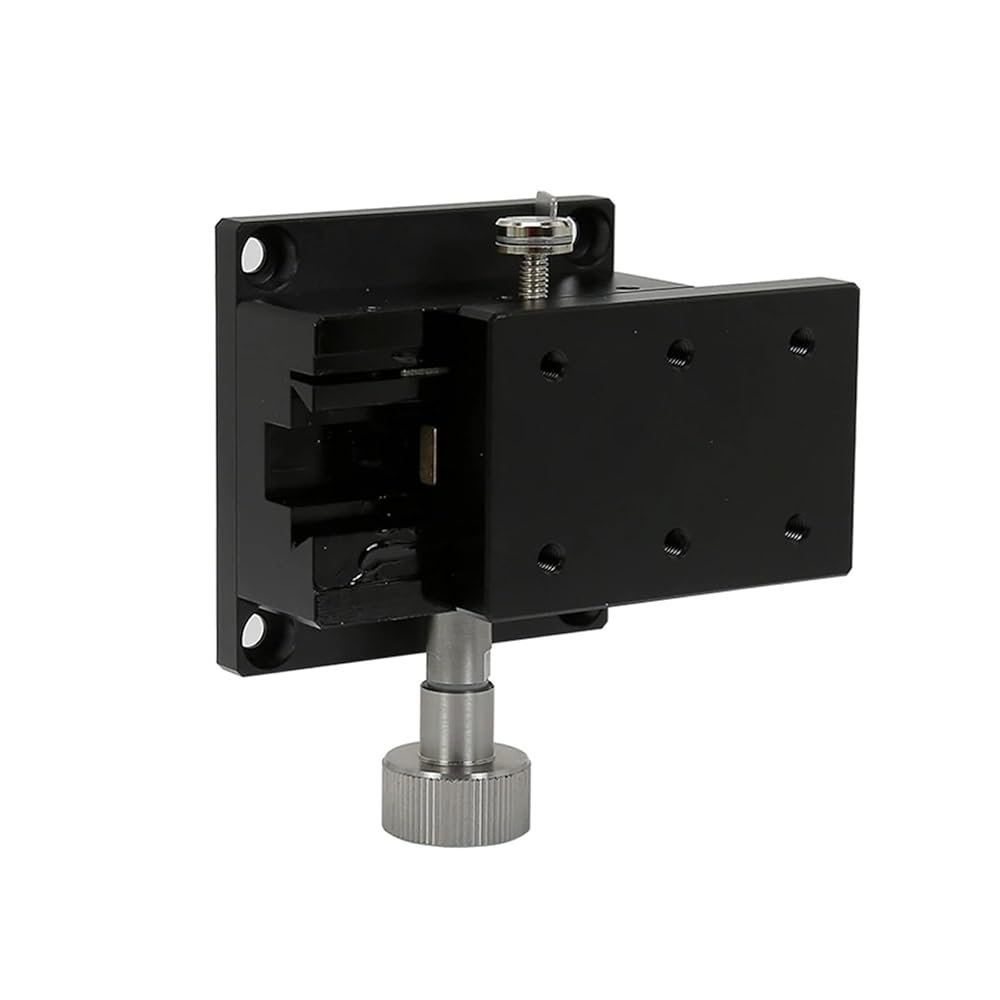

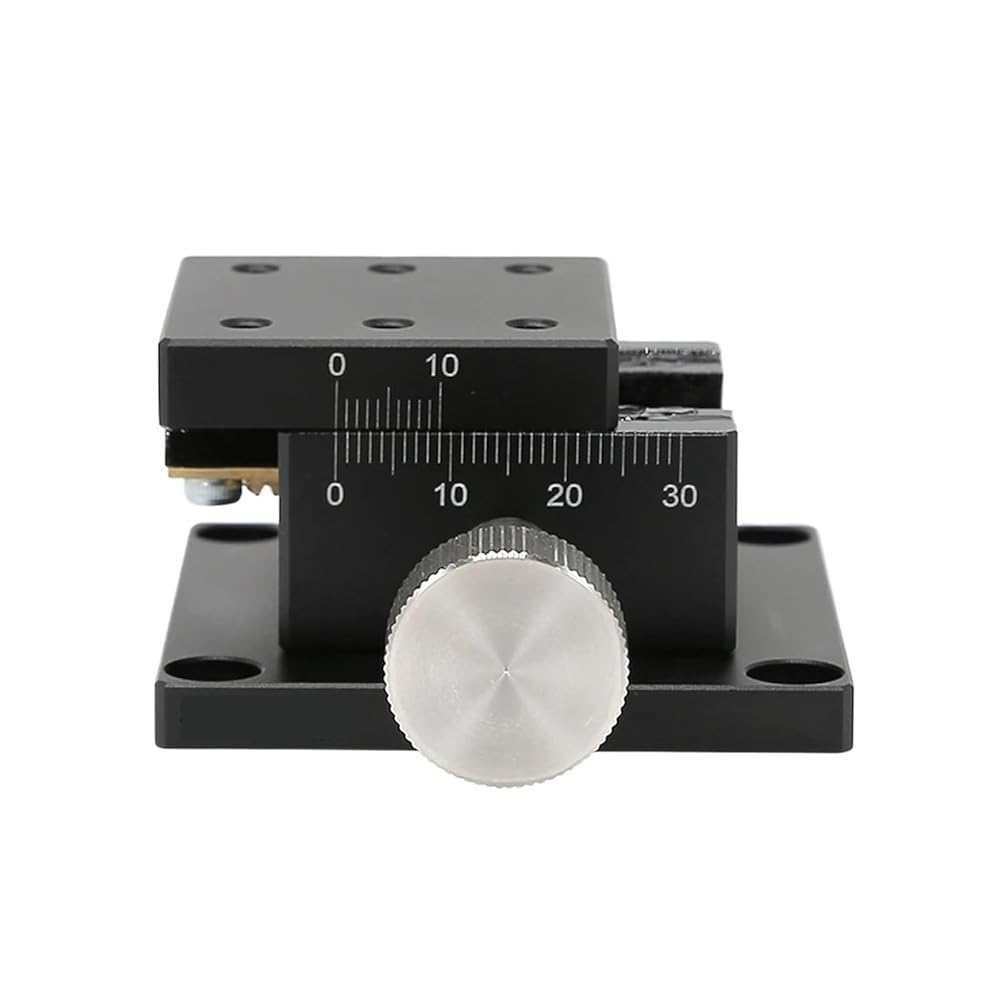

X-axis LWX4040 Dovetail Groove منصة الضبط الدقيق للتحويل اليدوي

KWD 133
ماركة
LKBEJMYY
وزن
50 g
– 1 +

مميزات خاصة

  • Roller Tables
  • Lightweight design: the fine-tuning platform weighs only 0.22 kg
  • Extended stroke: It has a large stroke of ±10mm, allowing large movements on the X-axis, enhancing versatility.
  • Durable Material: The platform is made of sturdy aluminum alloy and can withstand a heavy load of 29.4N
  • X-axis fine-tuning platform | High precision: With a minimum scale of 0.01mm, ultra-fine adjustment is possible to ensure precise alignment of the X-axis.

وصف

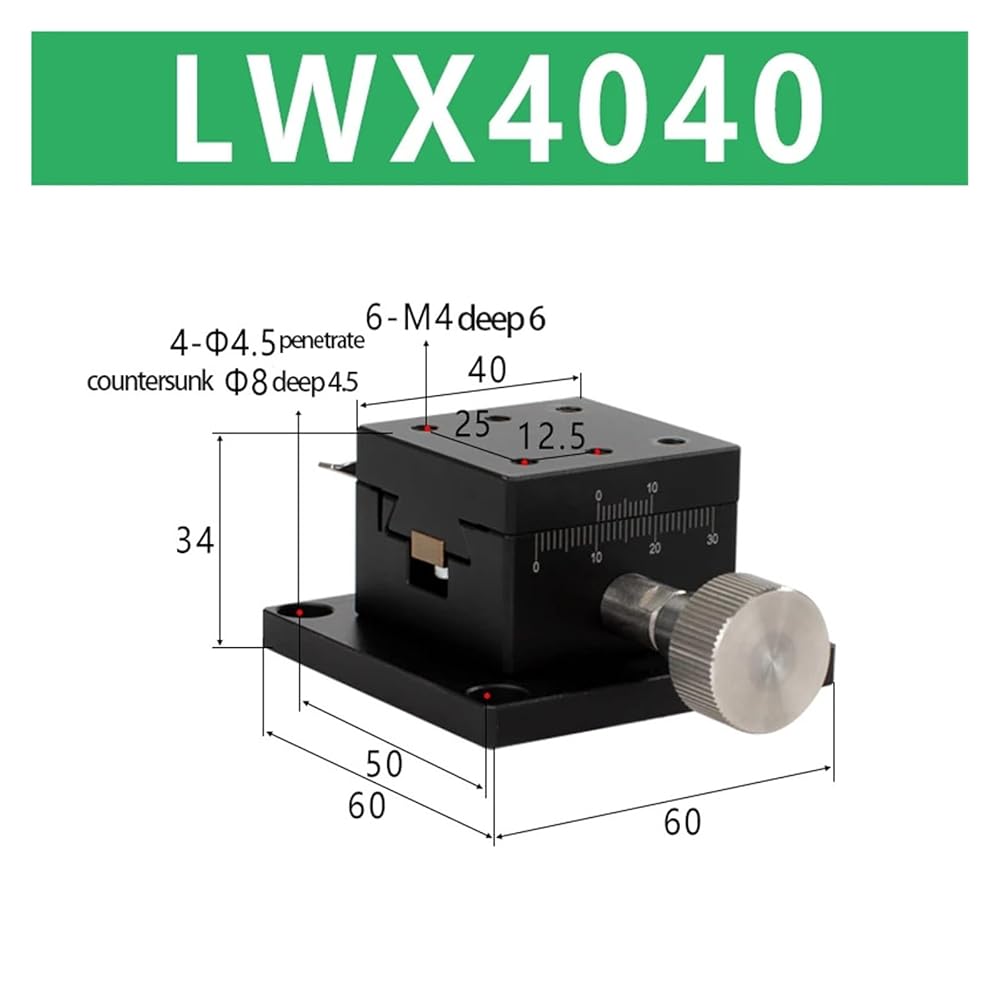

Roller Tables
scope:
Countertop size: 40*40mm
Movement direction: X axis
Driving mode: handwheel + rack and pinion
Table thickness: 34mm
Stroke: ±10mm
Load: 29.2N (3kgf)
Moving parallelism: 0.3mm/24mm
Parallelism: 0.03mm
Minimum scale: 0.1mm
Weight: 0.22KG
