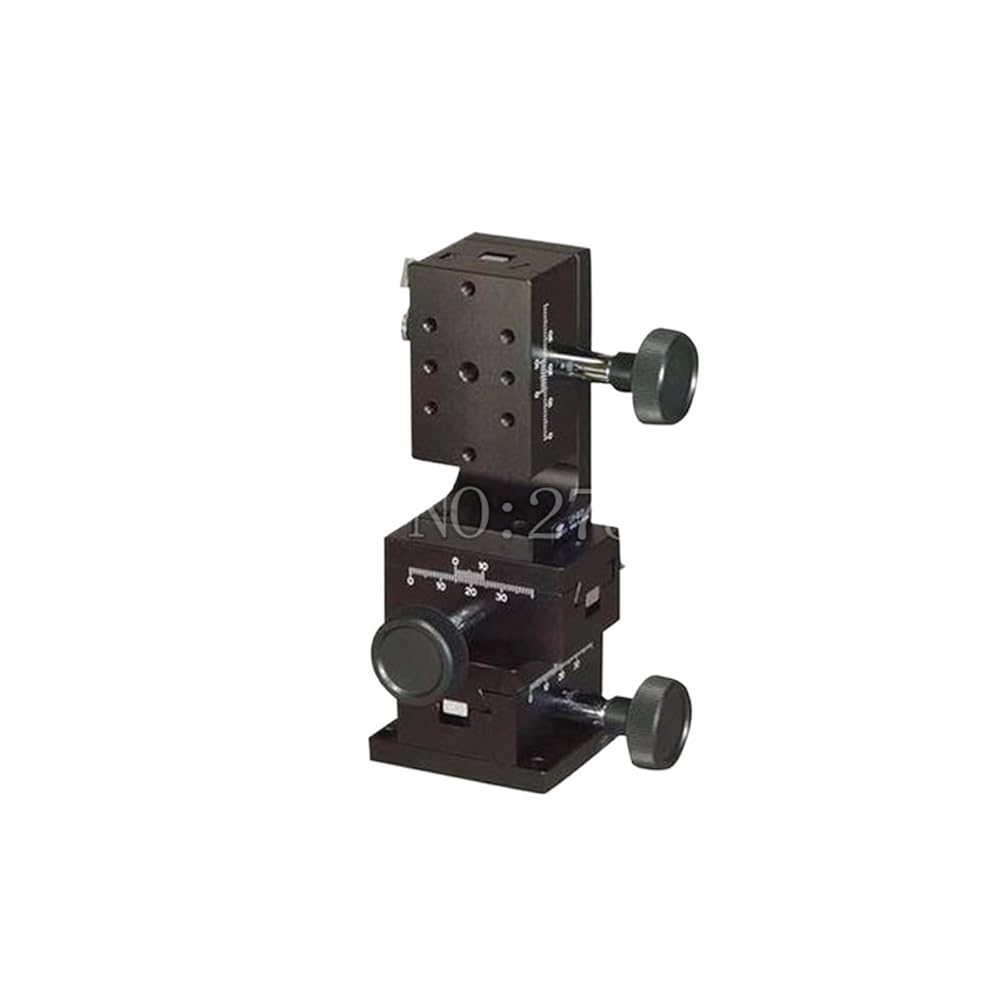

Cross Roller Guides
feature:
The drive mode adopts gear rack, which has high frequency and is suitable for occasions requiring fast movement and large stroke.
The main material is aluminum alloy, which is light and suitable for built-in other equipment
Long stroke, can be equipped with multiple slides
scope:
Dial size: 40*40mm
Moving direction: X YZ axis
Drive mode: micrometer
Stroke: ±10mm
Load: 29.2N (3kgf)
Movement parallelism: 0.3mm/24mm
Minimum scale: 0.1mm
Weight: 0.65KG
==========
Chemicals of very high concern: None

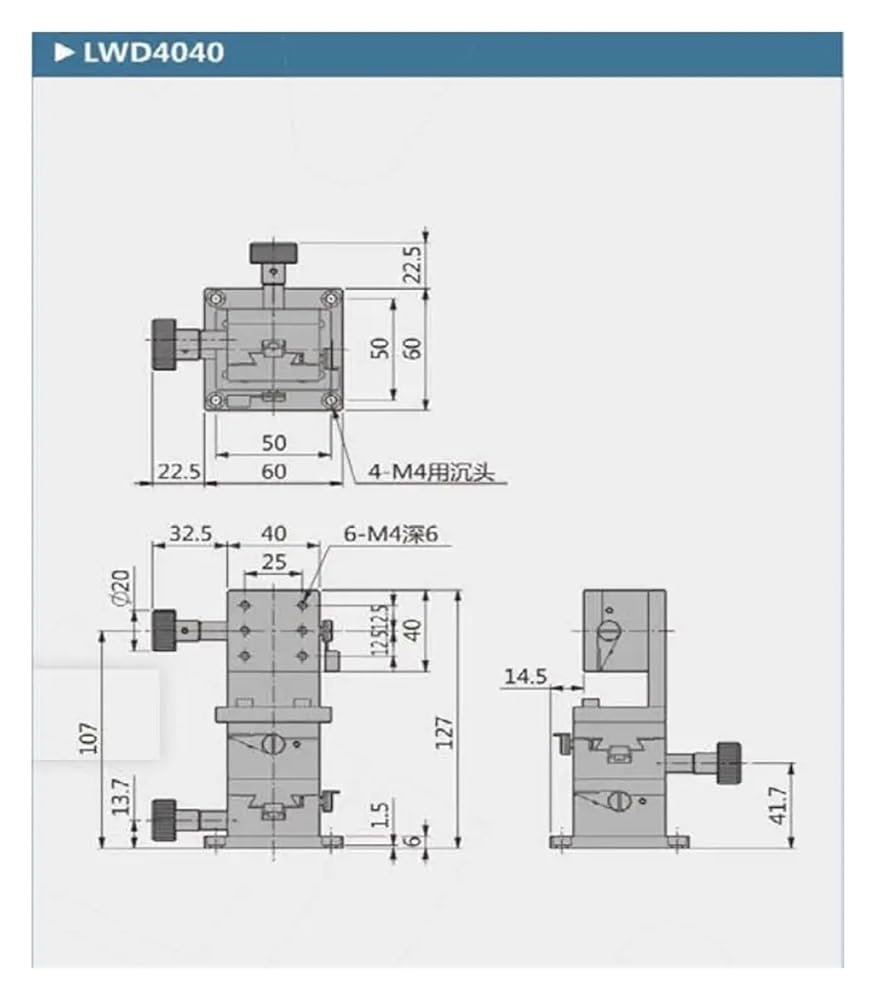

Model: LWD4040
Rail width or diameter: 40*40
Origin: Mainland China
