Pumps

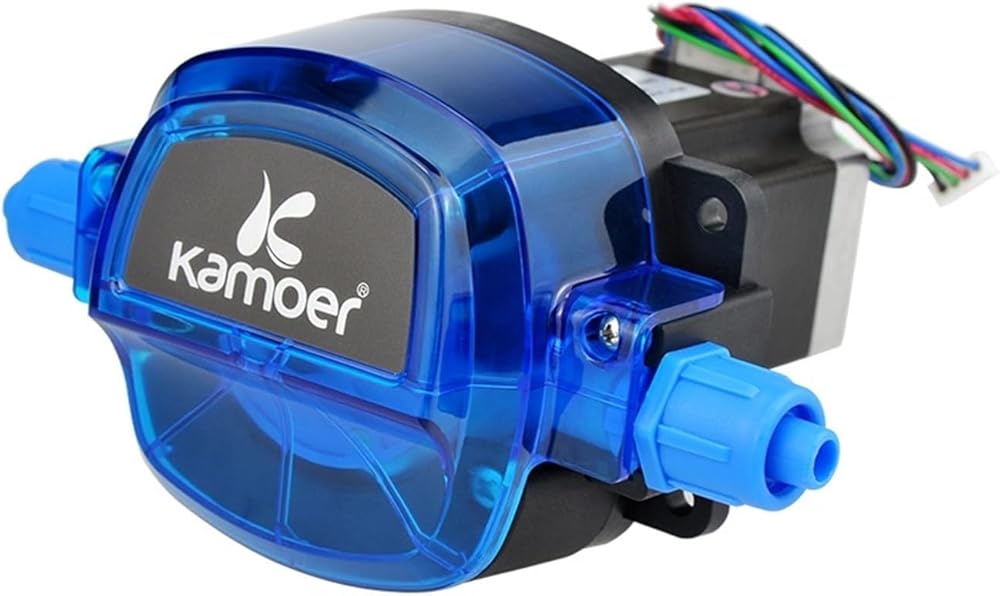

KHL Peristaltic Pump Stepper Motor High precision
Delicate and charming, cool color
Stepper motor; Higher accuracy
Suitable for viscous, non-viscous liquid transport
Compact structure; High maintenance
Basic Parameters
Motor: Stepper motor
Voltage: 12V/24V
Current: 1.8A
Power: 45W
Flow: 1300-1800ml/min
Current flow speed: 350rpm
Rollers: 3 rotors
Noise: 70dB
Net weight: 1320g
Product life: > 6000H
Temperature: 0-40
Humidity: Less than 80%
Flow Rate & Tube Selection
Material
Silicone
Silicone
BPT
Code
S24
S35
B18
IDOD
6411.4
7.9×12.7
7.9×11.1
Flow Rate
(ml/min)
KHL
24V/12V;
1.8A
3 rotors
1250
1800
1700
Tubes
Materials
Features
Tubing Life
S Silicone
Low adsorption, good temperature resistance, not easy to aging, low precipitation, etc., chemical resistance. Corrosion performance decreases with increasing temperature. Suitable for transmission of various low corrosion(10%) Liquid.
Working temperature: -60~200
200H
B PharMedBPT
Very good resistance to general chemicals, as well as excellent resistance to acids, alkalis and oxides. The product is transparent and to ultraviolet radiation, so it helps protect sensitive liquids.
Working temperature: -51~132
1000H
Various Applications
# Experiment
# Filling packaging
# Laboratory
# Research institutes
# Food and beverage
Packing List
KHL-SZ-S24:
1 × 24V pump with 1 × tube(Silicone 6.4*11.4 mm).
KHL-SZ-S35:
1 × 24V pump with 1 × tube(Silicone 7.9*12.7 mm).
KHL-SZ-S35-List-1:
1 × 24V pump with 1 × tube(Silicone 7.9*12.7 mm);
1 × Driver board.
KHL-SZ-B18:
1 × 24V pump with 1 × tube(Silicone 7.9*11.1mm).
More Details
Stepper motor (57)
pump tube
Tough PA material
PC material
Wire Description
A+ is red; A- is Blue; B+ is Green; B- is Black
Step angle 1.8°, Two-phase four-wire, wiring length 400 mm
Installation Method
Through plate installation method
L plate installation method
