مميزات خاصة

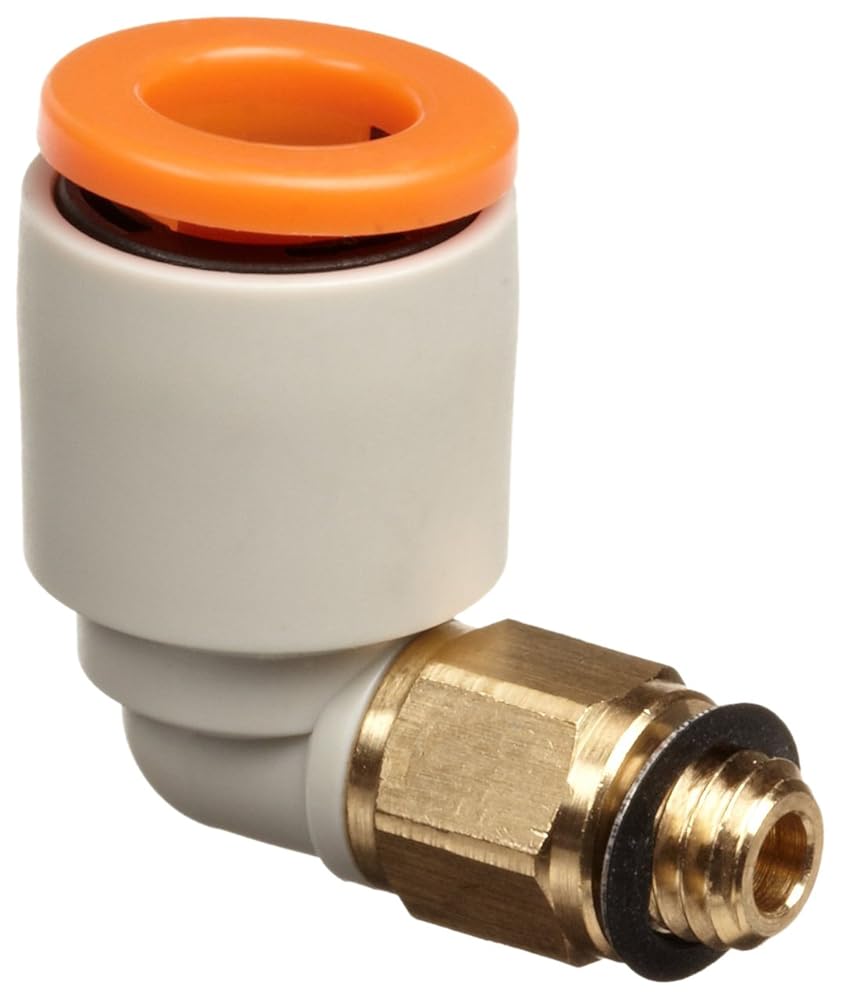

90 degree male elbow to connect a tube to a female thread at a 90 degree angle
Push-to-connect inch tube connection on one end and male metric (M) threads with gasket on the other end
PBT and brass body and brass threads for resistance to corrosion
Operating pressure range of -14.5 to 145 PSI (-100 kPa to 1 MPa)
Operating temperature ranges of 23 to 140 degrees F (-5 to 60 degrees C) (ambient) and 32 to 104 degrees F (0 to 40 degrees C) (fluid)

وصف

KQ2 one-touch, metric and inch size fittings are available in a wide variety of sizes, body styles and thread types. The specially designed packing provides positive sealing under pressure without the reduced flow common with compression fittings. The KQ2 release collar releases both the chuck and collet to provide a low disconnection force for easy removal of the tubing. KQ2 fittings are available to order in multiples of 10.The current KQ2 series fitting has been discontinued. SMC has introduced an improved version of KQ2 series, and recommends that you utilize the new series for your product designs.
Accepts nylon and urethane tubes
Applicable for both vacuum and positive pressure applications
Release collar allows easy removal of tubing without damaging the tube
Maximum vacuum pressure of 1.0MPa

منتجات شبيهه

{"error":"\u062e\u0637\u0623","cart_limit":"\u0644\u062f\u064a\u0643 \u0627\u0644\u0643\u062b\u064a\u0631 \u0645\u0646 \u0627\u0644\u0645\u0646\u062a\u062c\u0627\u062a \u0641\u064a \u0633\u0644\u0629 \u0627\u0644\u062a\u0633\u0648\u0642 \u0627\u0644\u062e\u0627\u0635\u0629 \u0628\u0643.","prod_limit":"\u0644\u0627 \u064a\u0645\u0643\u0646\u0643 \u0625\u0636\u0627\u0641\u0629 \u0627\u0644\u0645\u0632\u064a\u062f \u0645\u0646 \u0647\u0630\u0627 \u0627\u0644\u0645\u0646\u062a\u062c"}

مرحبًا،

بحث

SMC KQ2L07-M5A تركيب أنبوب PBT والنحاس للتوصيل، كوع 90 درجة، أنبوب 1/4 بوصة OD x M5x0.8 ذكر (عبوة من 10)
