Roller Tables

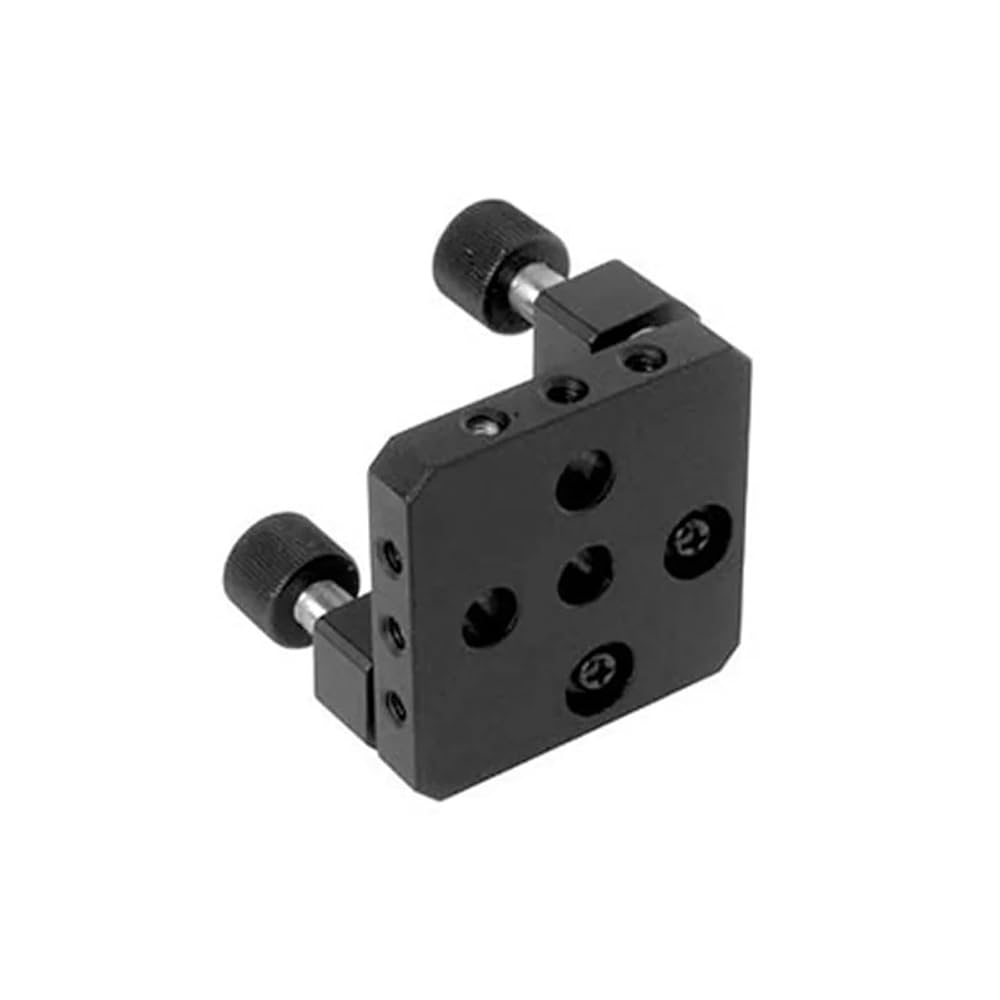

Fine-tuning threaded auxiliary transmission, disc spring return
The upper and lower parts have standard hole spacing connecting holes to facilitate combination with other series of products.

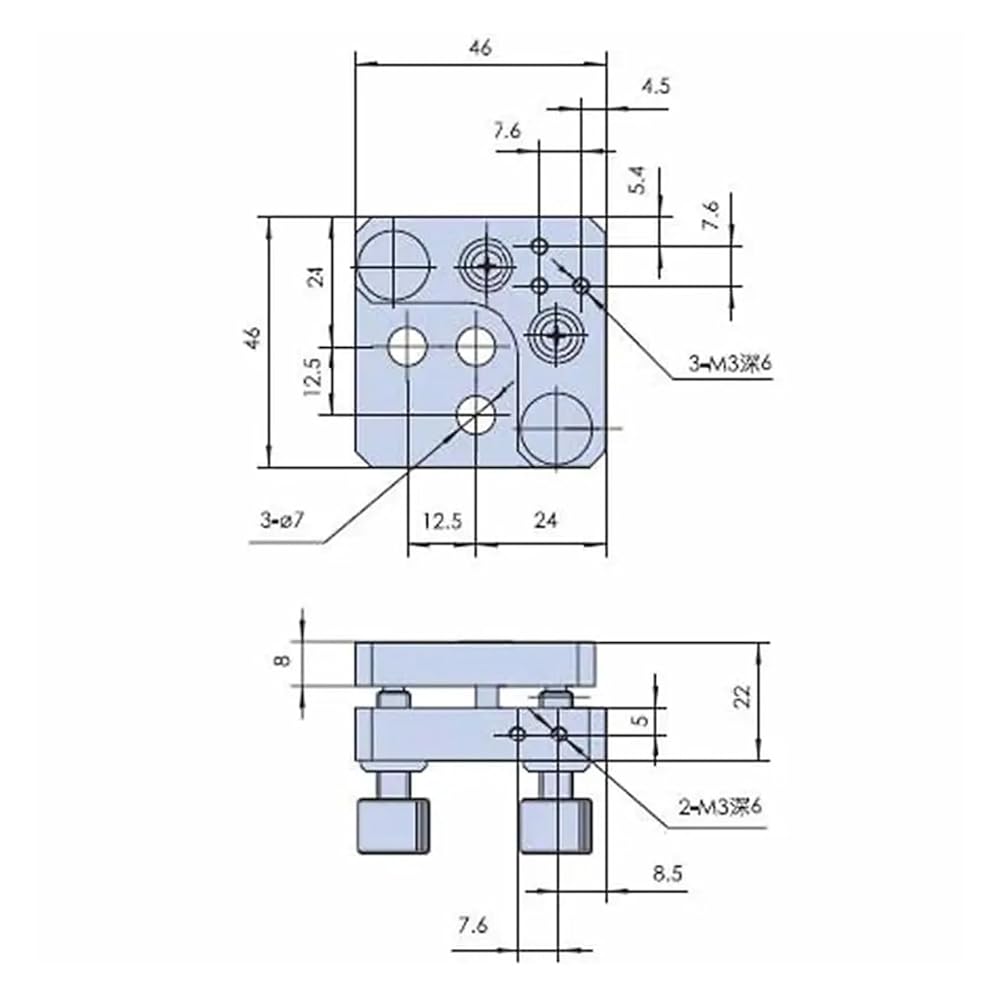

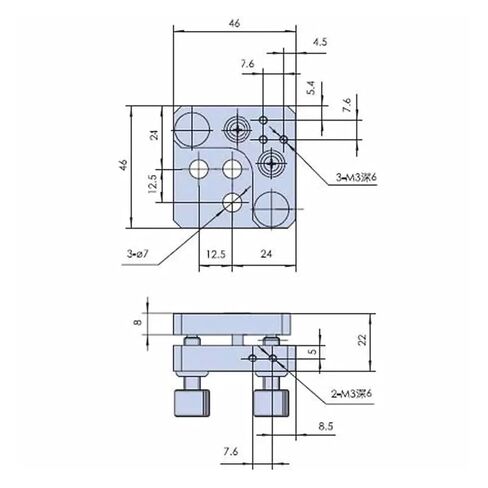

Model
PQ220-5L
Platform size
46mm*46mm
Function
Two-dimensional pitch adjustment of θ X and θ y
driving mode
Fine-tuning threaded auxiliary drive
Adjustment range
Pitch + 5 degrees
Minimum table adjustment
5'
load bearing
0.5kg
self-respect
0.1kg
Materials Science
Duralumin
surface treatment
anodized black stain
