Needle-Bearing

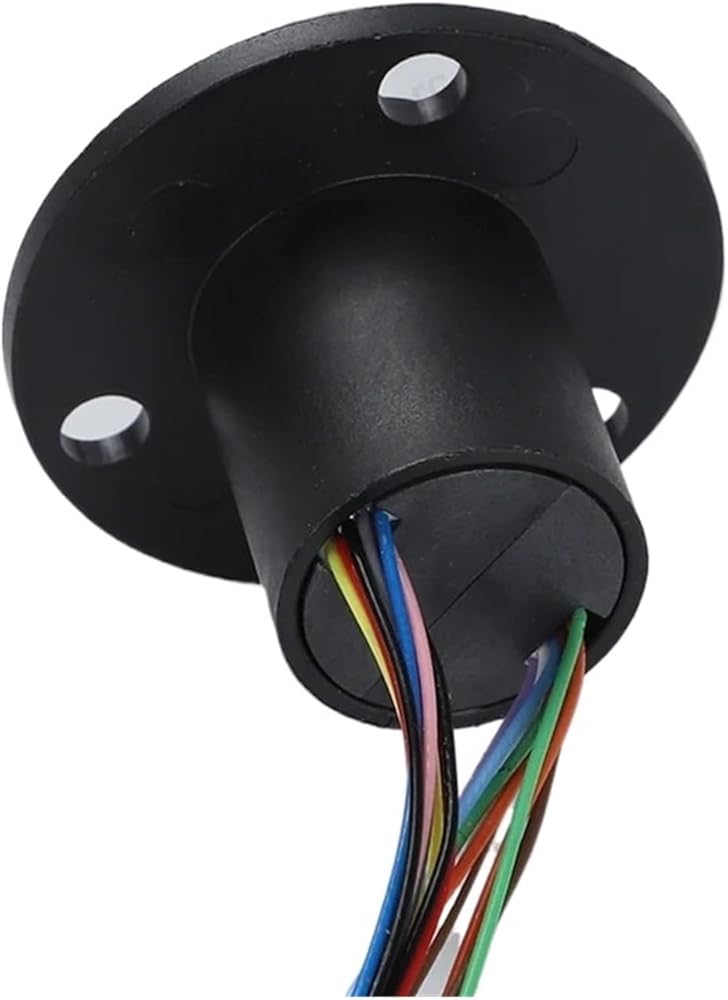

Specification:
Outer diameter: 12.4 mm / 22 mm
Channel: 2/4/6/8/12/18/24/36CH
Current: 2A/2.5A/5A/20A/30A
Rated voltage: 0-240VAC/VDC
Rated speed: 300RPM
- Operating temperature: -20~+80
Operating humidity: 60%RH
- Contact material: precious metal
- Shell material: ABS plastic
- Rotation torque: 0.5Nm; +0.2Nm/6CH
Protection level: IP51
- Insulation resistance: 500mQ/500VDC
- Cable: AWG28 silver plated
- Cable length: Standard 250mm
- Dielectric strength: 500VAC@50Hz, 60 seconds
