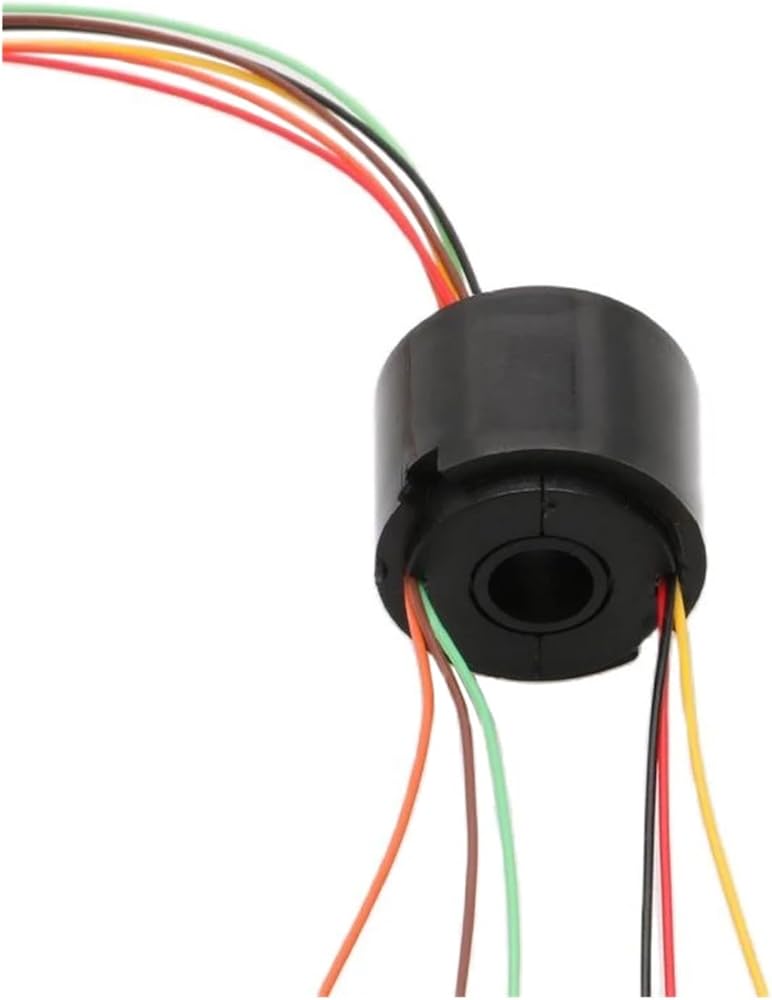

Needle-Bearing
Specification:
- Rotation speed: max. 300rpm.
Outer diameter: 22 mm
Aperture: 7mm
Channel: 2/4/6
- Rated voltage: 380VAC/DC
- Rated current: 1.5A/channel
Operating temperature: -20C ~ +60C
- Contact material: Gold/Gold
- Wire specification: AWG28
- Cable length: Standard 300 mm per side
- Withstand voltage: 500V@50Hz between two channels
- Insulation resistance: 1000mO /500VDC
Protection level: IP53
- Shell material: engineering plastic
- Operating life: 500 million rotations (depending on operating environment and speed)
