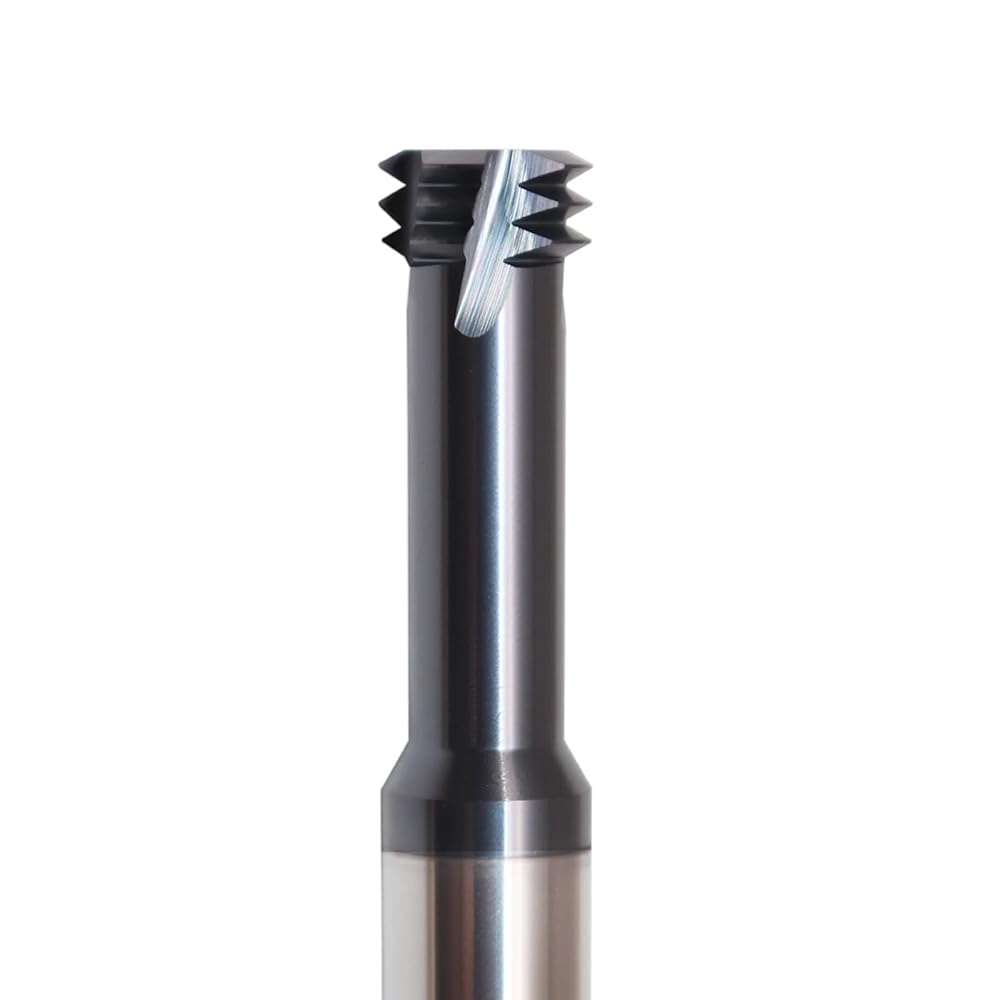

Type: Metric threaded end mill
Material:solid carbide
Product Specifications
Pitch (Tp):0.25-3.5mm covering ultra-fine (M1x0.25) to coarse (M33x3.5)
Blade diameter (D): 0.73-15.9mm Ultra-small diameter (0.73mm) is suitable for precision electronic components, and large diameter (15.9mm) is suitable for heavy-duty machining
Effective depth(L1) 2.3-50mm deep hole machining capacity
Shank Diameter(D)4-16mm Fits standard shank
Number of Blades(F) 3-6 Flutes 3-flute general-purpose type, 6-flute deep hole / high-hardness materials
Overall length(L)50-100mm Short (50-75mm) for tight spaces, long (80mm) for deep cavities
Void size: 0.4-11.15mm Void design to avoid interference with special-shaped workpieces (such as mold deep cavity)
Bottom hole diameter:0.75-20.5mm Suitable for pre-drilled hole size, covering ultra-small holes (0.75mm) to large holes (20.5mm)
Coating AITiN+ZrN: for aluminium alloys, copper alloys, titanium alloys, high-strength steels, stainless steels, superalloys, composites (carbon fiber reinforced plastics/ceramic matrix composites)
Main Applications:
Precision threading: It is suitable for machining centers and CNC machine tools to complete the milling and forming of metric internal/external threads (such as M2-M33 threads).
Complex working conditions: blind hole thread bottom forming, deep hole threading (effective depth up to 50mm).
