【Precise Measurement】: This Handheld Digital Cable Tension Meter accurately measures tension of threads, wires, and fibers with 10 material calibrations, delivering reliable results for industrial-grade applications as a Wire Tensile Strength Tester
【3 Working Modes】: This Handheld Digital Cable Tension Meter features real-time/hold/peak modes plus thickness adjustment, effortlessly adapting to diverse testing needs. Enhances flexibility for professional use as a Wire Tensile Strength Tester
【6 Selectable Units】: Equipped with 6 switchable units (cN, gf, oz, Kgf, N, lb) and 2.5% full-scale accuracy, the Handheld Cable Tension Gauge guarantees trustworthy data, meeting professional standards for tension testing
【USB Communication】: The Wire Tensile Strength Tester stores 41 data sets and supports USB communication, enabling easy data retention and seamless transfer for systematic analysis, boosting work efficiency
【Industrial Versatility】: Widely applied in wire/cable, textile, and carbon fiber industries, our Handheld Cable Tension Gauge integrates 3 modes, 6 units, 41 storage, and USB for accurate tension measurement and efficient data processing

وصف

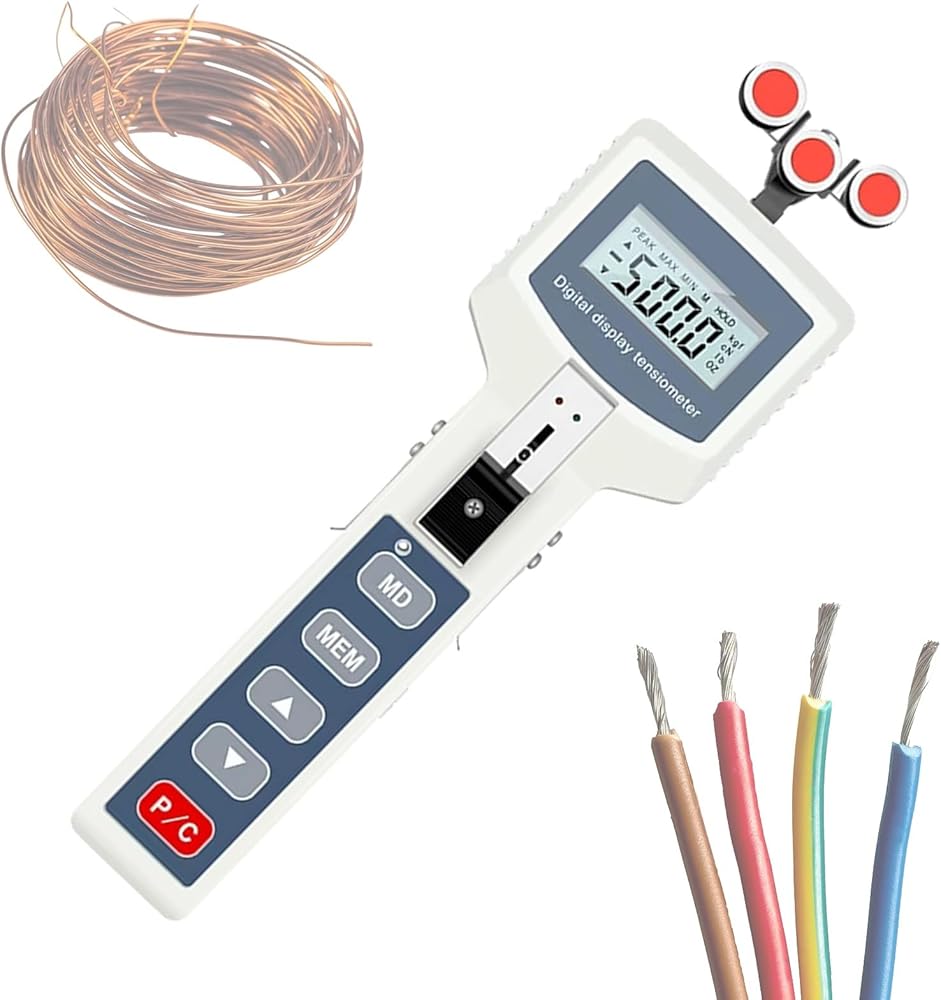

Professional Handheld Digital Tension Meter, Wire Tensile Strength Tester, 41 Data Storage, 3 Modes, 6 Units, USB Communication Enabled

Features:
1. 3 working modes: Real-time, hold and peak working modes can be switched at will. With thickness adjustment function.
2. 6 units: cN, gf, 0Z, Kgf, N, lb can be set. Accuracy is 2.5% of full scale.
3. Convenient storage: Can store 41 sets of data. With USB communication function. Can accurately measure the tension of 10 different materials.
4. Multiple uses: Widely used in wire and cable, textile and chemical fiber, metal wire, carbon fiber and other industries.

Specifications:
Product Name: Handheld Digital Cable Tension Meter
Model: 200CN , 500CN , 1000CN , 2000CN , 2500CN , 5000CN , 10000CN
Power Supply: Dual 3.7V Lithium Batteries
Measuring Head Width: 65mm (for models 200CN-2000CN), 116mm (for models 2500CN-10000CN)
Calibration Material: Textile PA monofilament available in diameter 0.12mm, 0.12-0.2mm, 0.2-0.4mm, 0.4-0.7mm, 0.6-1.2mm, 0.8-1.4mm
Product Size: 270×118×55mm
Net Weight: 640g
Gross Weight: 2.1kg

International Tension Units:
1 cN = 1.02g = 0.01N;
100N = 10.2kg = 10000cN

Packing List:
1 × Digital Tension Meter
1 × USB Data Cable
1 × Charger
1 × Instruction Manual

Notes:
1. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement.
2. If you have any questions please contact me and I will reply you within 24 hours.
