Roller Tables

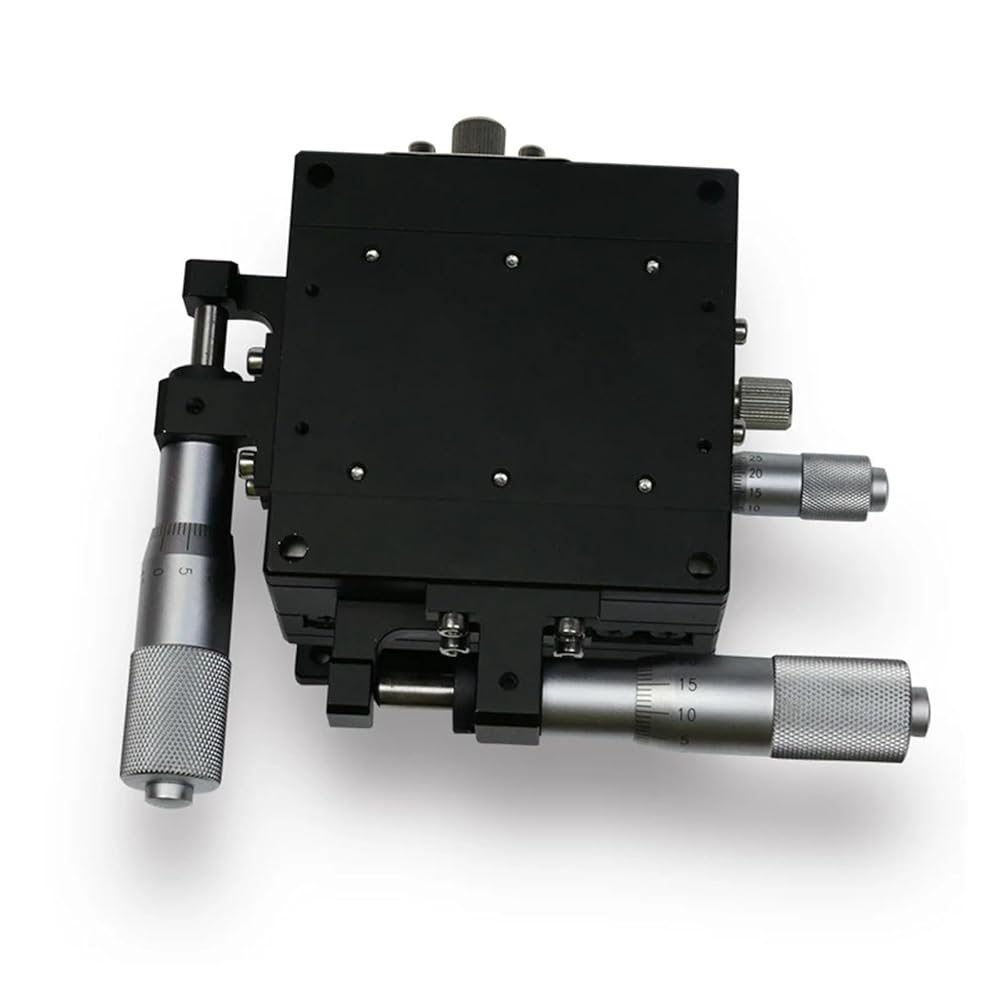

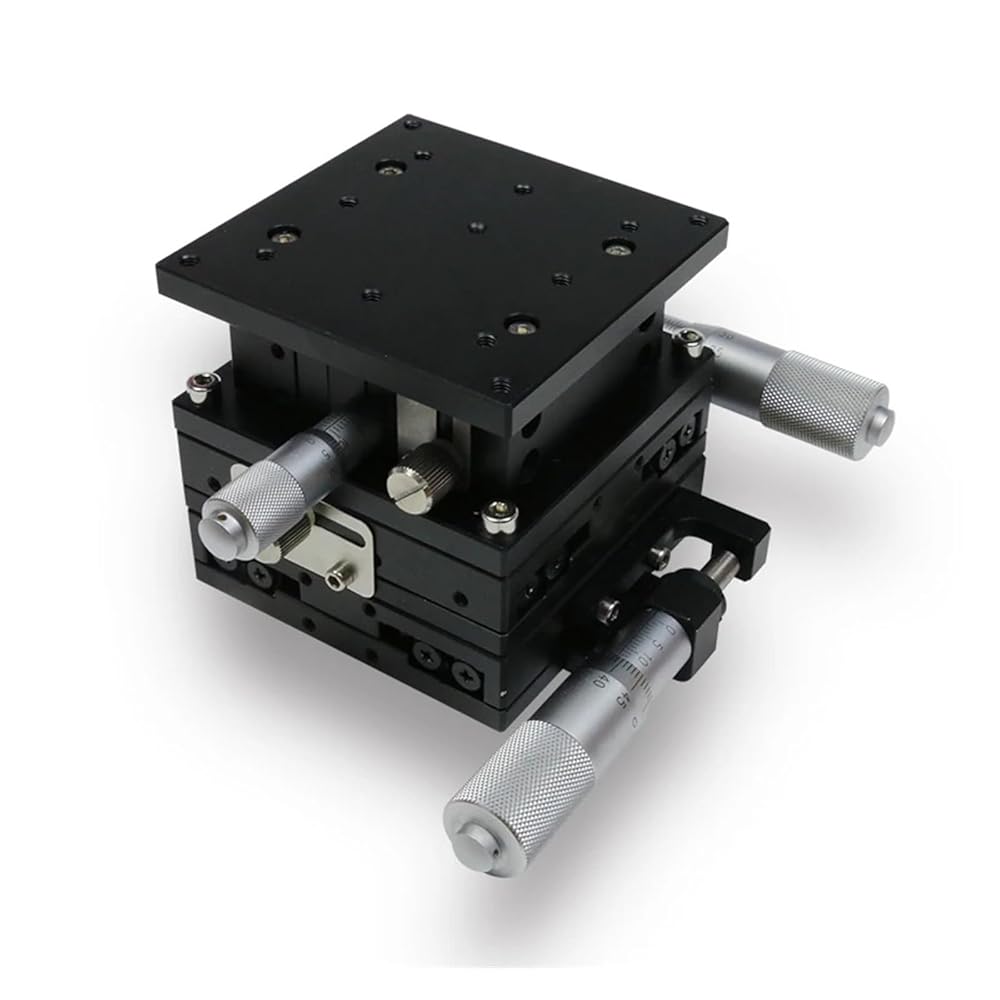

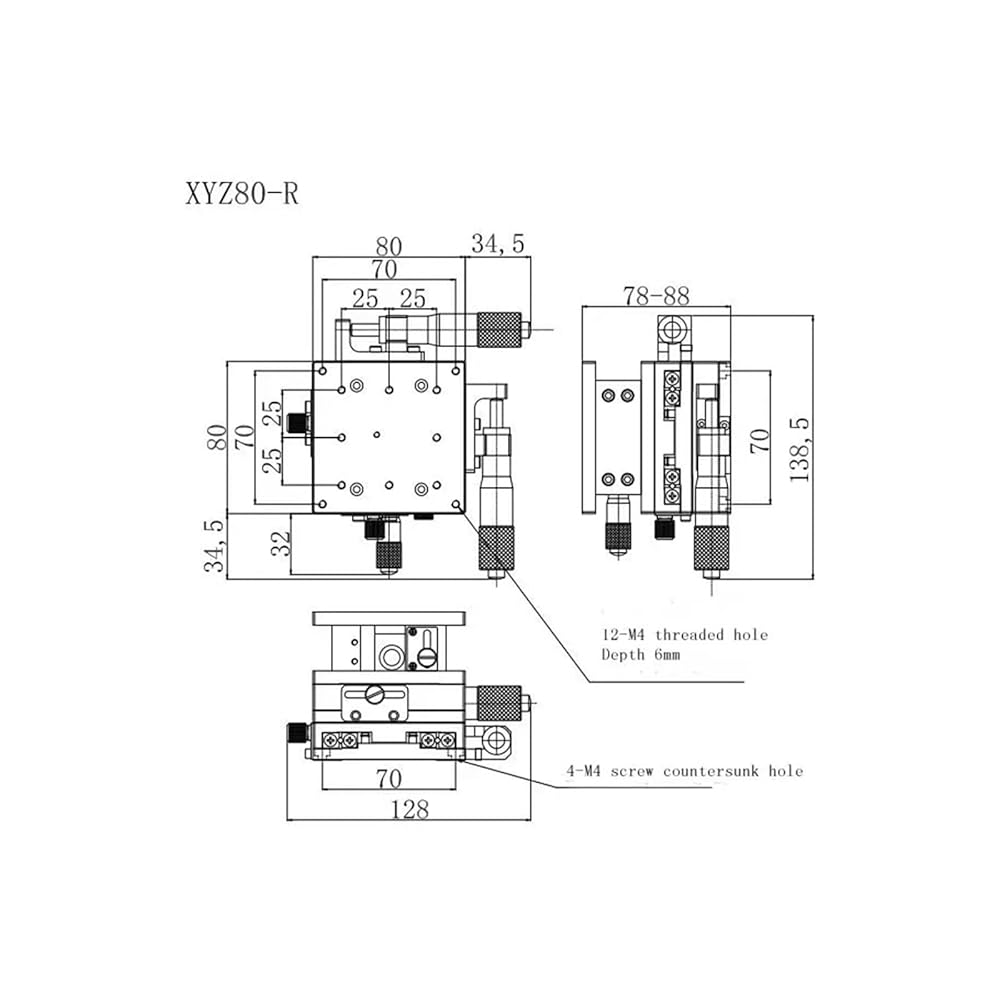

Product model specifications: XYZ80-R
Movement direction: XYZ axis three directions
Achievable: front, back, left, right, fine adjustment
Material: Aluminum alloy (surface black anodized)
Workbench size: 80mm×80mm
Guide rail type: V-type precision crossed roller guide rail
Movement amount: XY axis ±12.5mm, Z axis 10mm
Table thickness: 78mm-88mm
Minimum reading of micrometer knob: 10um/scale
Load: 88.2N (9kgf)
Accuracy: 10um
Straightness: 5um
Weight: 1.7KG
