Motorized Rotary Positioning Stage RS60-L Manual Rotary Slide, Rotary Gauge Shifting Table, R-axis Adjustment, high-Precision Micrometer fine-Tuning, Load: 29.4N

KWD 58.500
Brand
Huayong
Weight
499 g
SizeRS60-L
– 1 +

Special Features

  • Rotary platform: precision electric rotary machine optical rotary platform Motorized rotary platform bearings, precision grinding worm gear transmission device
  • High precision: High precision electric rotary platform, new structure, new technology, key indicators through strict testing. Adopt worm gear transmission, friction-resistant materials
  • High performance: special process, high wear resistance, high reliability, high precision shaft system makes high rotary accuracy, large load capacity, smooth movement
  • Use:Electronic control rotary table can be used flat, vertical and inverted
  • Long service life: large load capacity and long service life

Description

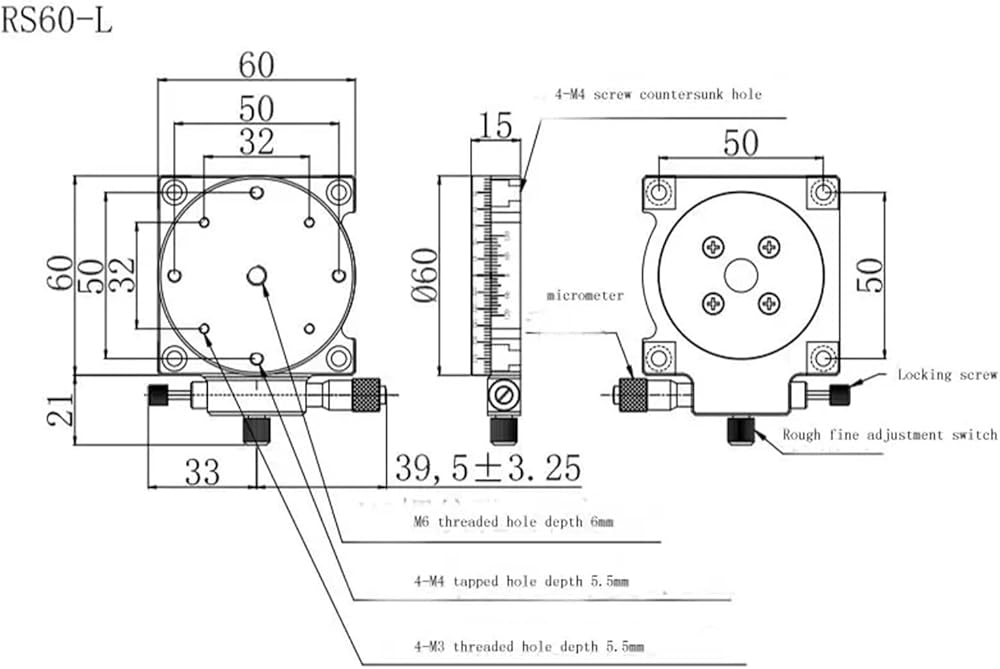

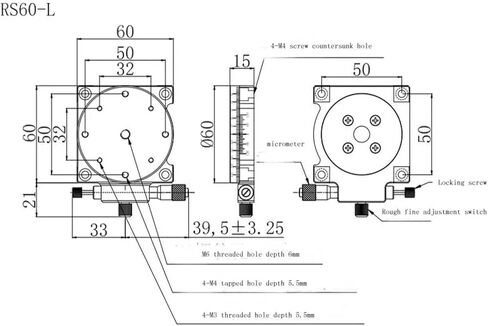

Product model specification: RS60-L
Can be realized: coarse adjustment 360° rotation, fine adjustment ±5
Material: Aluminum alloy (black anodized surface)
Table size: diameter 60mm × 60mm
Moving rail: running-in installation
Drive mode: micrometer
Cursor minimum reading: vernier scale 0.1°
Micrometer minimum movement reading: ~0.015°
Load: 29.4N (3kgf)
Accuracy: 10um
Surface runout: 20um
Parallelism: 30um
Weight: 0.22KG
