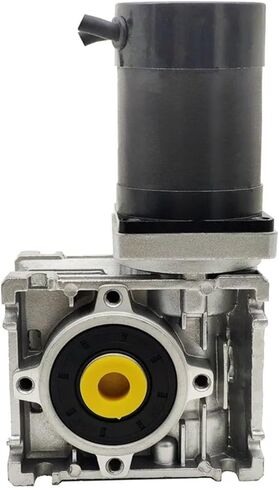

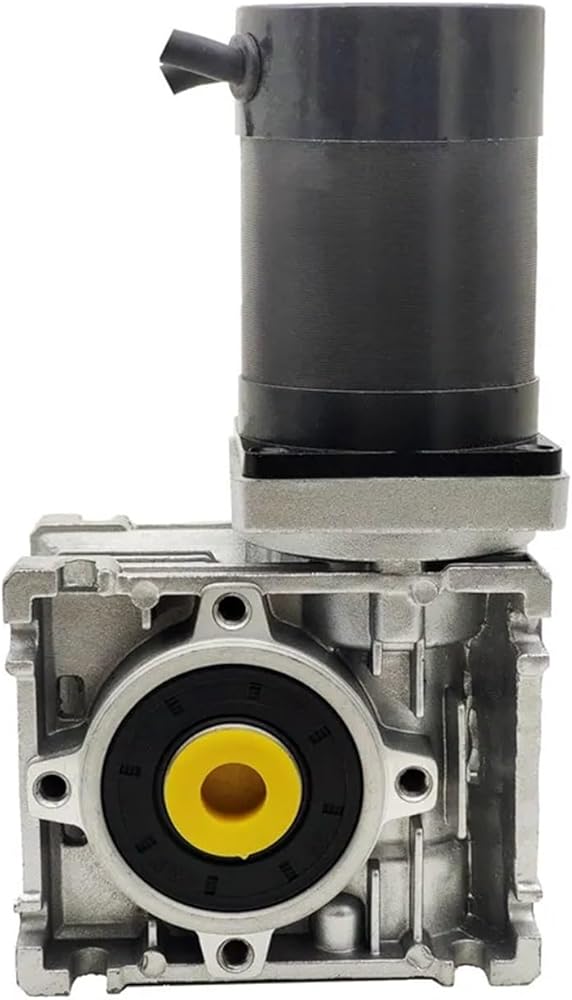

Worm geared 100W 57mm Brushless DC Motor 24V Gearbox 517.5:1/10:1/15:1/20:1/25:1/30:1/40:1/50:1/60:1/80:1 reducer BLDC 3phase
Model
Voltage
(VDC)
Motor Rated Parameters
Motor
Peak
Tq
(N.m)
Tq
Constant
(N.m/A)
Back
EMF
(V/k RPM)
Motor
Rotor
Inertia
(kg.mm2)
Length
(L:mm)
Weight
(kg)
Gear
Ratio
Speed
(rpm)
Tq
(N.m)
Current
(A)
Power
(W)
J57BLRWG55-230A
24
3000
0.11
2.4
34
0.33
0.06
4.22
7.5
151
1.74
5:1
7.5:1
10:1
15:1
20:1
25:1
30:1
40:1
50:1
60:1
80:1
J57BLRWG75-230A
3000
0.22
4.8
69
0.66
0.06
4.27
11.9
171
2.05
J57BLRWG95-230A
3000
0.32
6.6
100
0.99
0.063
4.27
17.3
191
2.3
J57BLRWG115-230A
3000
0.42
8.6
131
1.32
0.063
4.29
23
211
2.55
Dimension Unit:mm
Wiring Diagram
