Needle-Bearing
Model/Specification: WX22-4P10

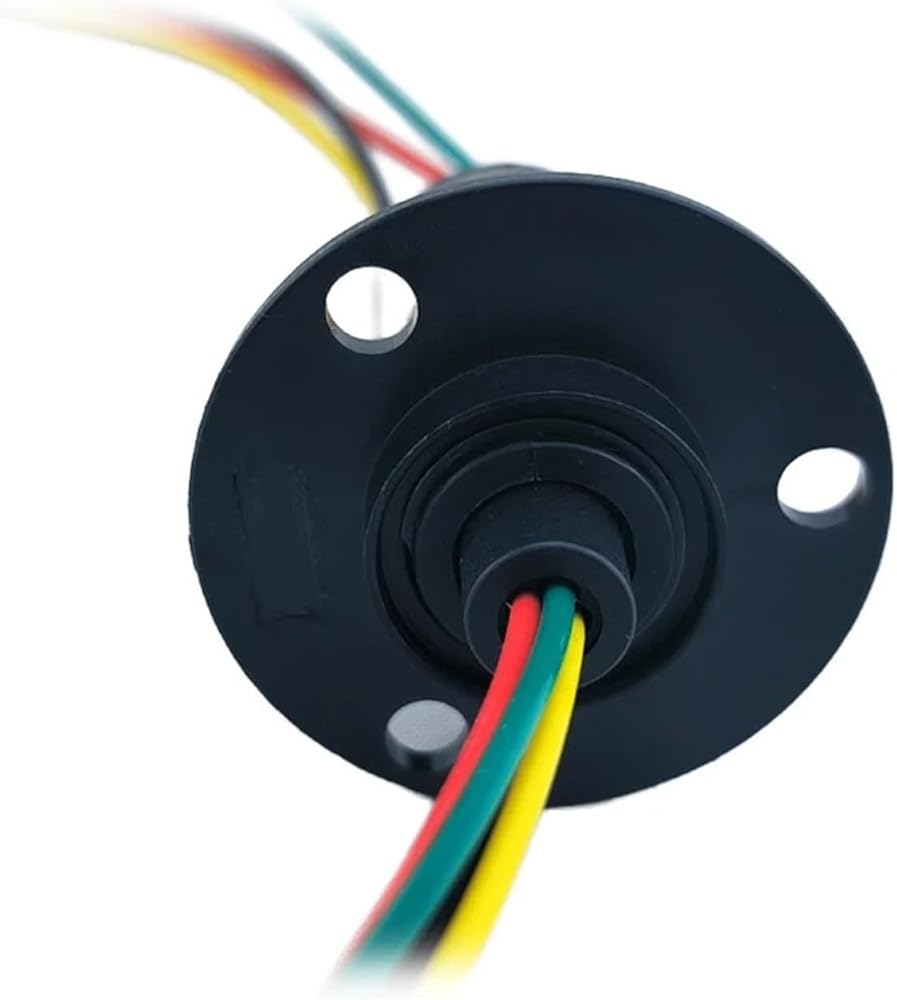

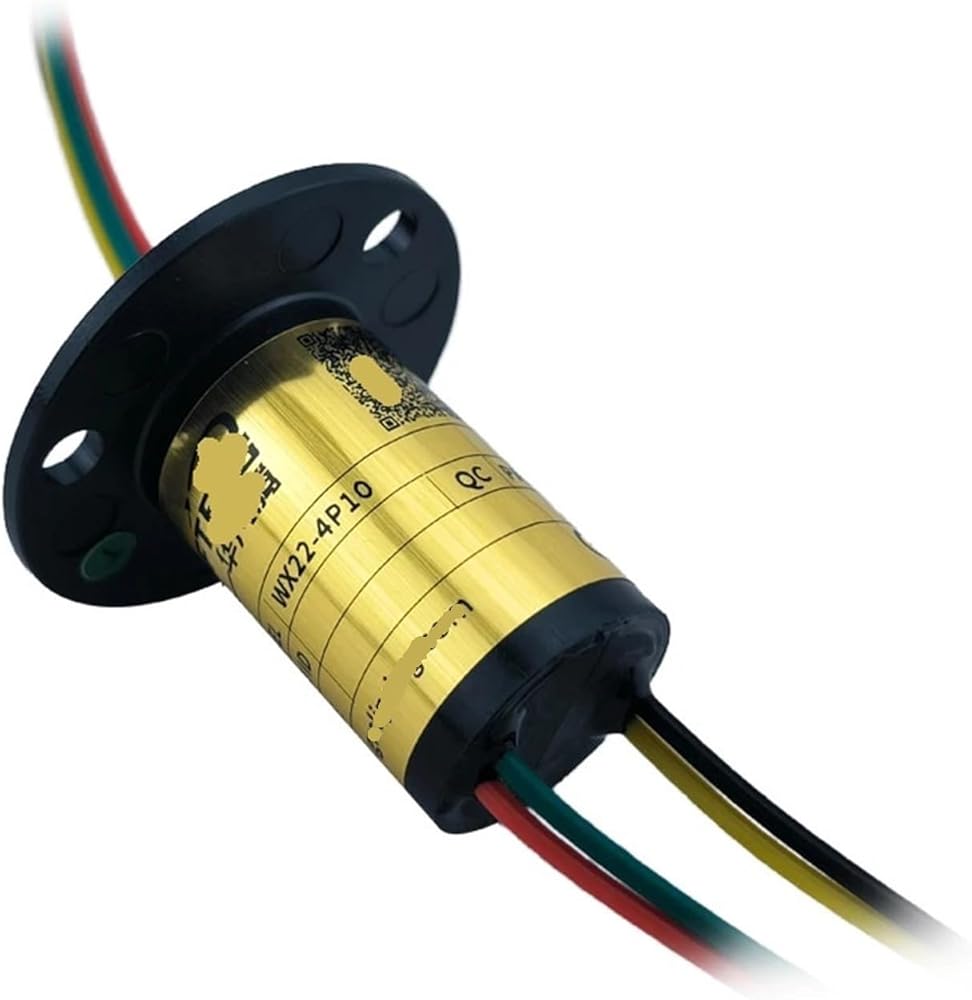

Product name: Slip ring cap/compact type
Circuit: 4-wire
Ampere/Current: 10 amps
Working speed: 1 - 250RPM
Voltage: 0-600VAC/VDC

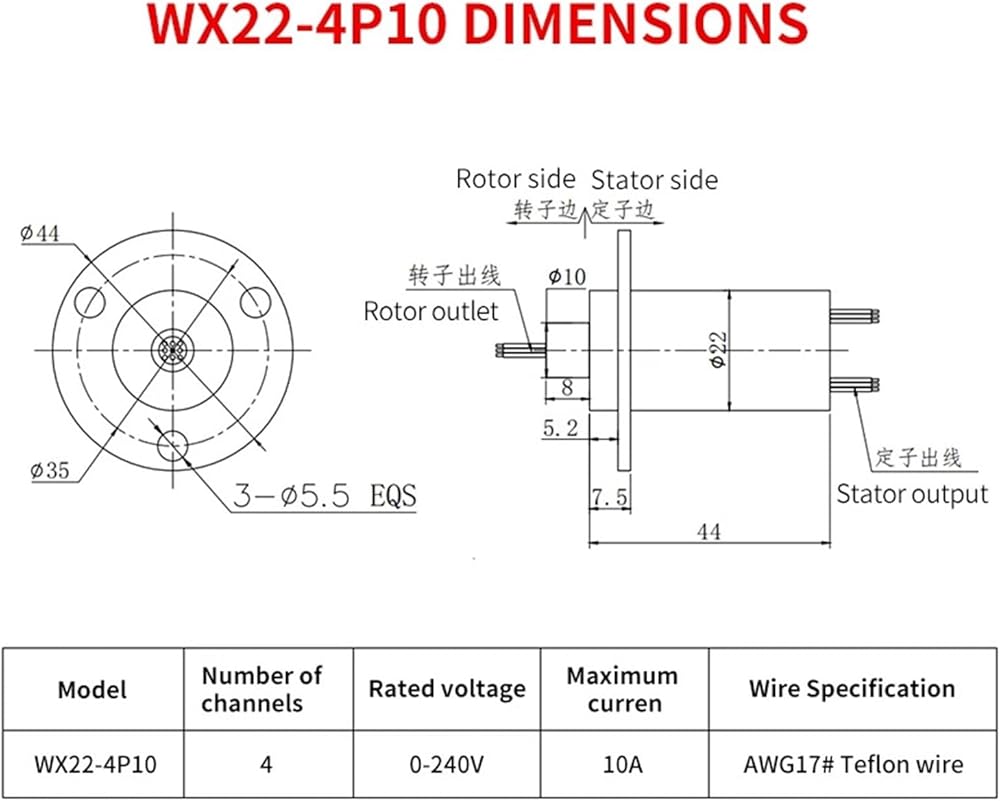

OD size: 22mm/0.866in.
Length: 44 mm / 1.73 in
Cable length: 300mm
Protection level: IP51
Signal: Unable to transmit signal
Rotation life: 60 million rpm (affected by working speed)
Contact Material:
Operating temperature: -40℃ to +80℃
Torque: 0.1Nm+0.03Nm/6 lines
Operating humidity: 10% to 85% RH
Wire specification: UL Teflom@AWG#12
Compressive strength: 1000VDC@50Hz
Dielectric strength: 1000M@600VDC
Shockproof grade: MIL-SID-810E
